HP All-in-One 22 24 27 G1 205 G8 1155 PC ProDesk 400 600 G1 G2 G3 G4 G5 G6 Desktop Mini PC Pro 400 260 G9 Mini EliteDesk 800 G2 G3 G4 G6 G8 Pavilion dv3 dv4 dv6 dv7 Compaq cq Presario Desktop 110 460 HDX X16 series laptops HP 380467-001 381090-001 394278-001 402018-001 403706-001 403810-001 412786-001 417220-001 418872-001 419107-001 463958-001 469632-010 573399-001 574063-001 603284-001 609939-001 609948-001 613152-001 684792-001 693711-001 693715-001 708992-001 724264-001 741346-001 751889-001 752346-001 753178-001 790946-001 806246-001 849650-002 849650-003 866269-001 902990-003 917250-001 917848-001 917849-001 924847-800 932447-850 L02678-850 L11310-850 L11828-001 L39752-001 l40094-001 L40096-001 L56998-800 L89693-001 PA-1650-02HC PPP009L ac adapters
Basic parameters

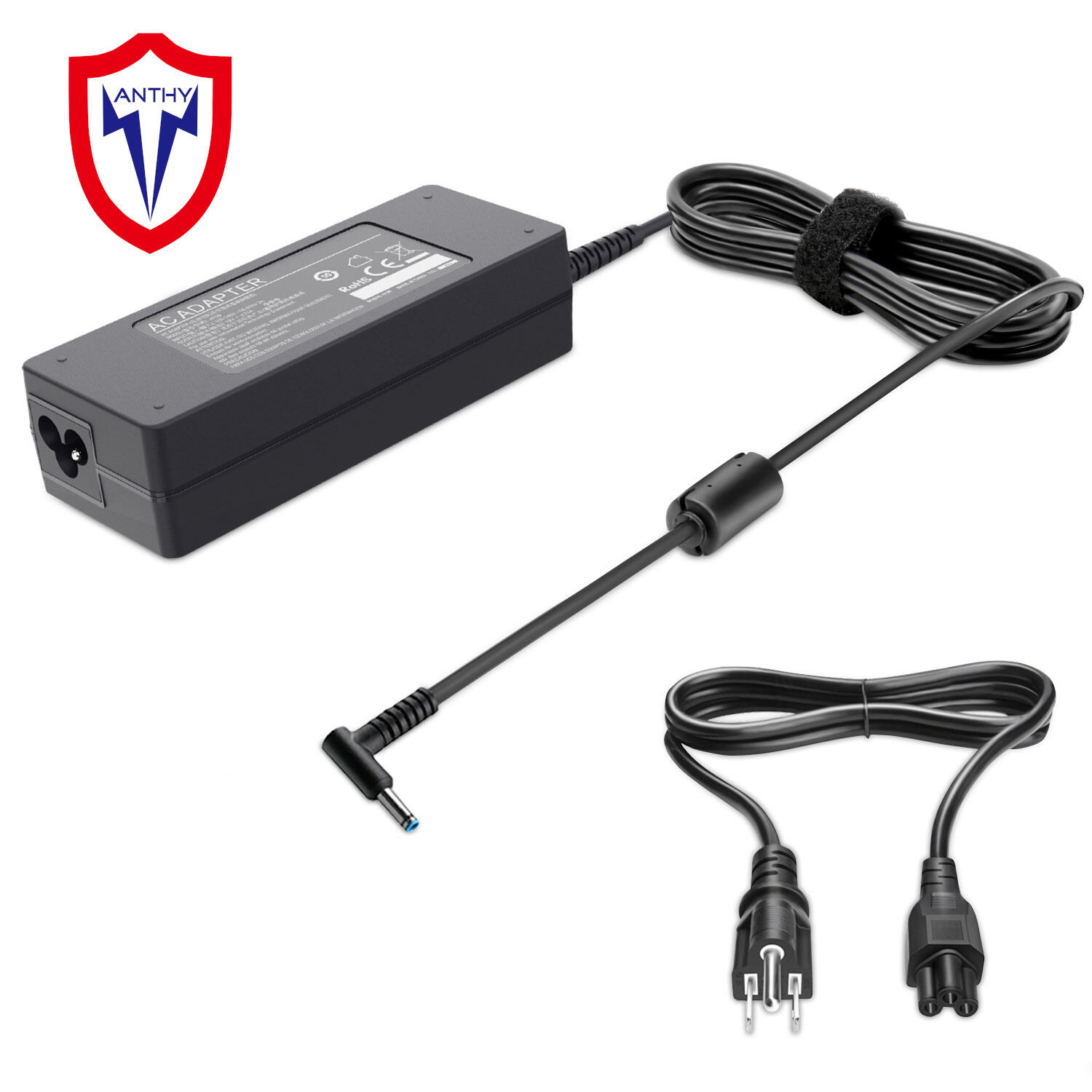

| Product Series | 90W Laptop AC Adapter For HP |

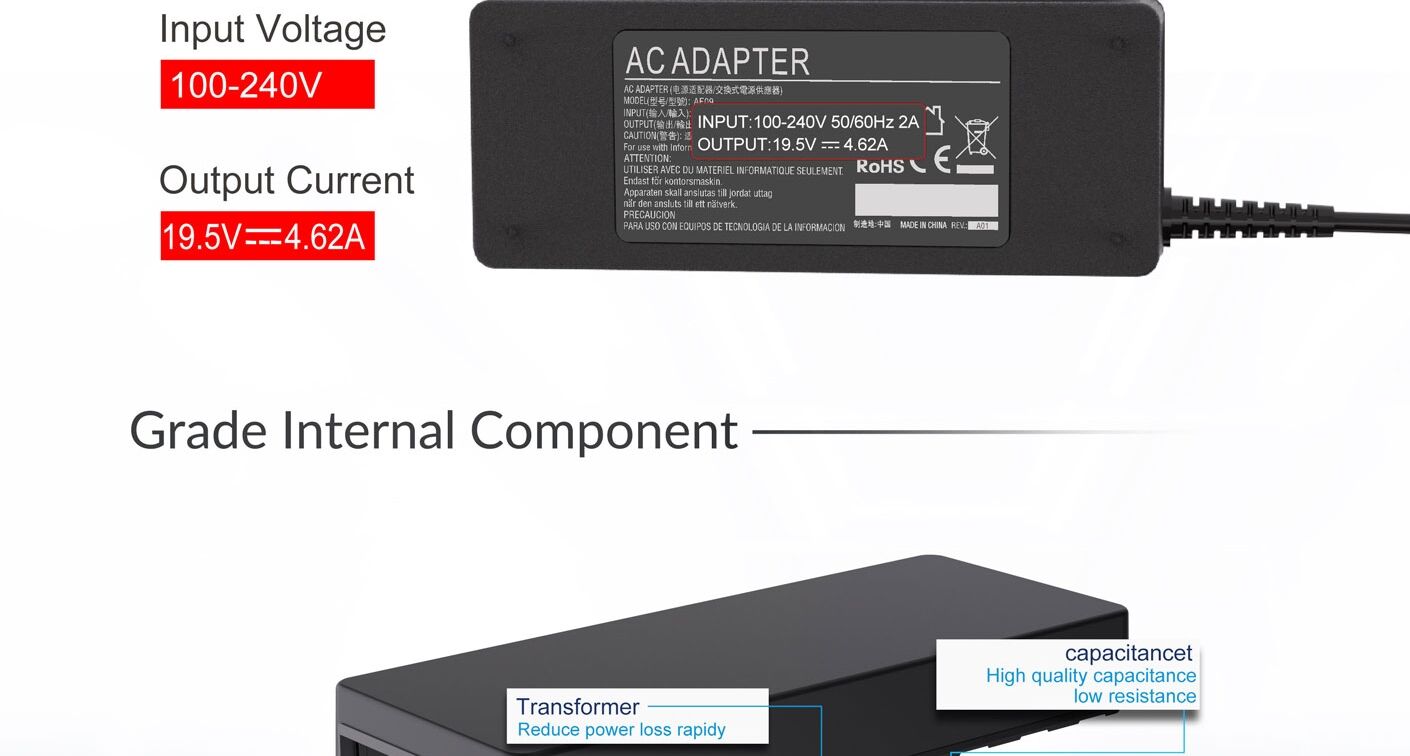

| Input voltage/Input frequency | 100-240V 50-60Hz |
| Output voltage/Output current | 19.5V 4.62A |
| Static loss | ≤0.1W |
| Output ripple | ≤200mV |
| Output efficiency | ≥88% |
| Protection | Over voltage protection/Over current protection |
| Short circuit protection/Temperature protection |
Other Parameters

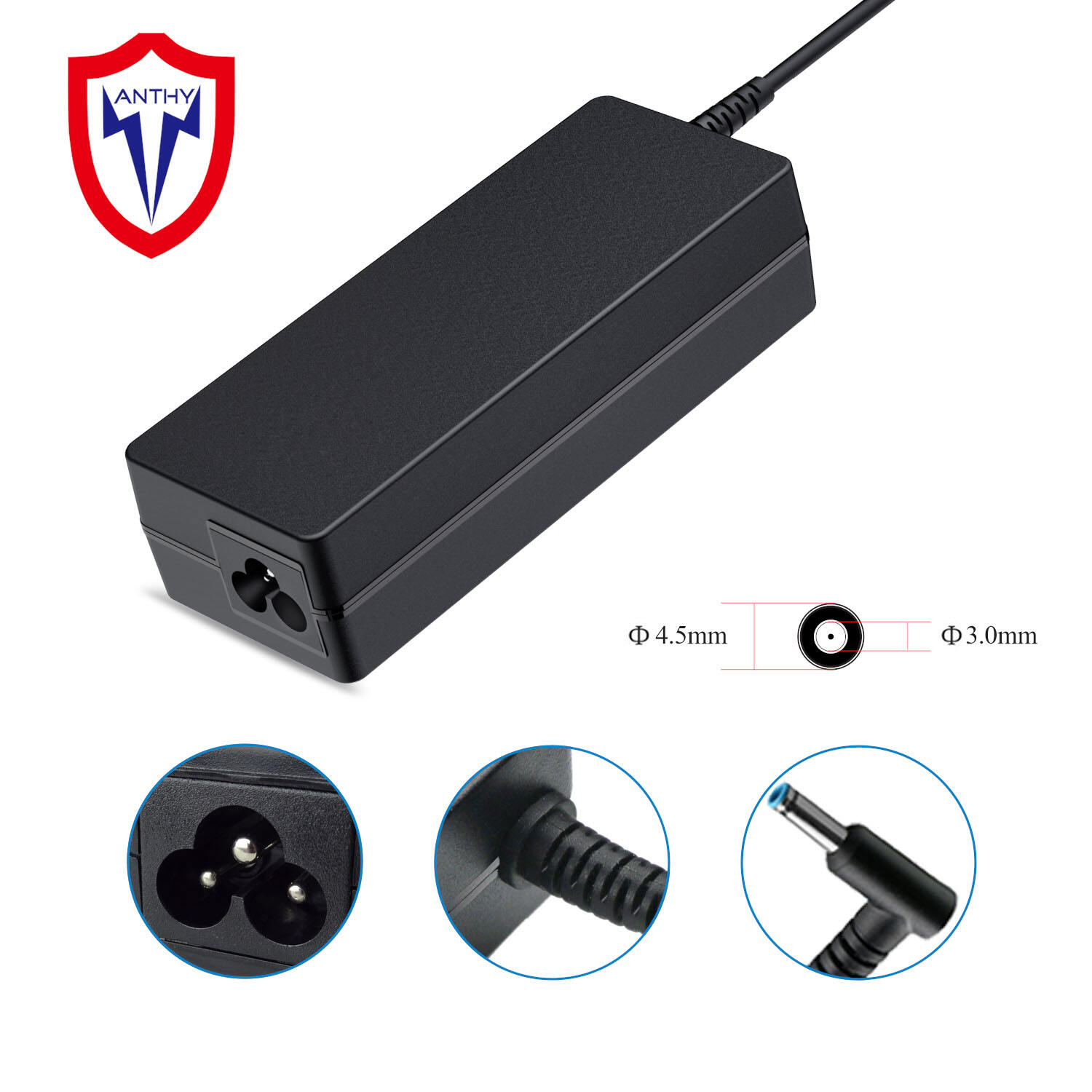

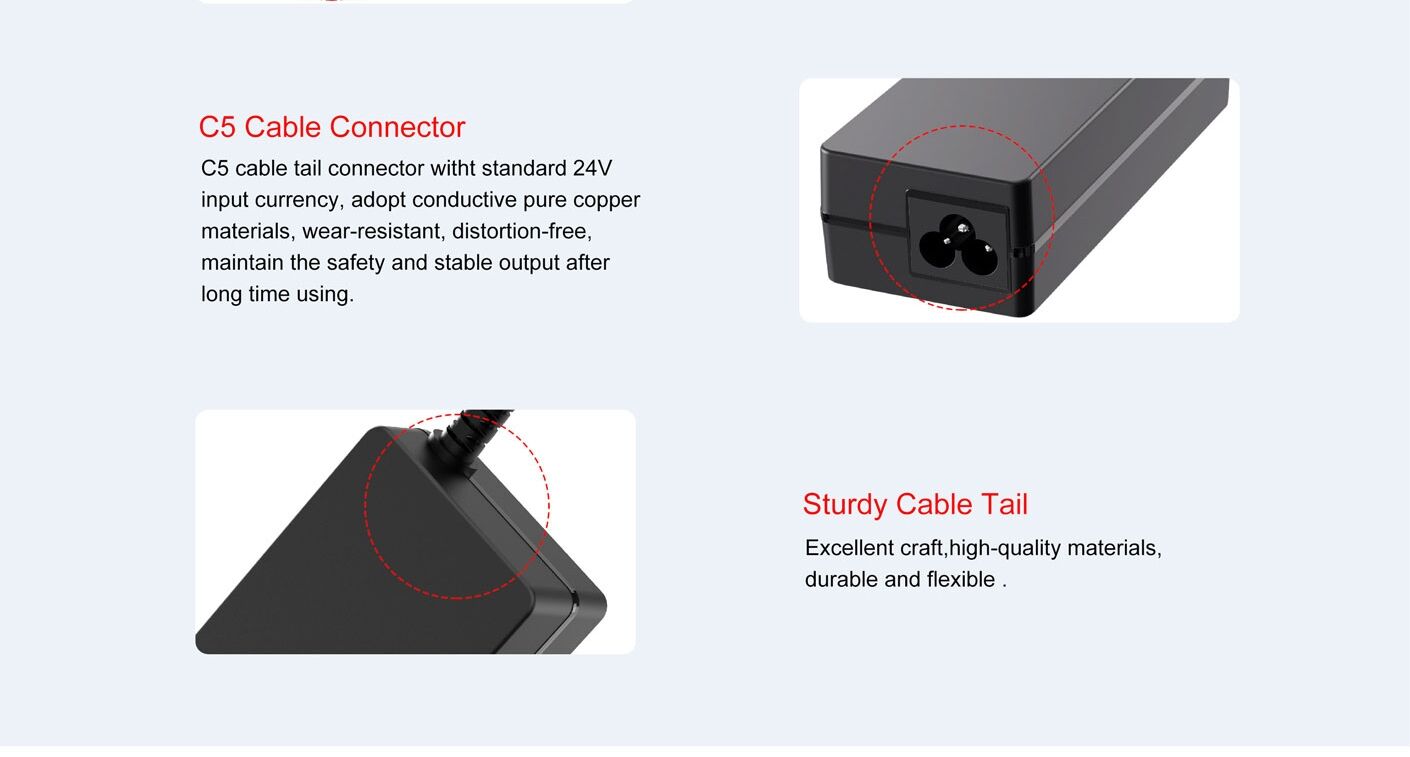

| AC Port | C5/C7 Cable Connector |
| AC cable Optiona | EU/UK/US/AU/IT/CN/SA/IL/BR |

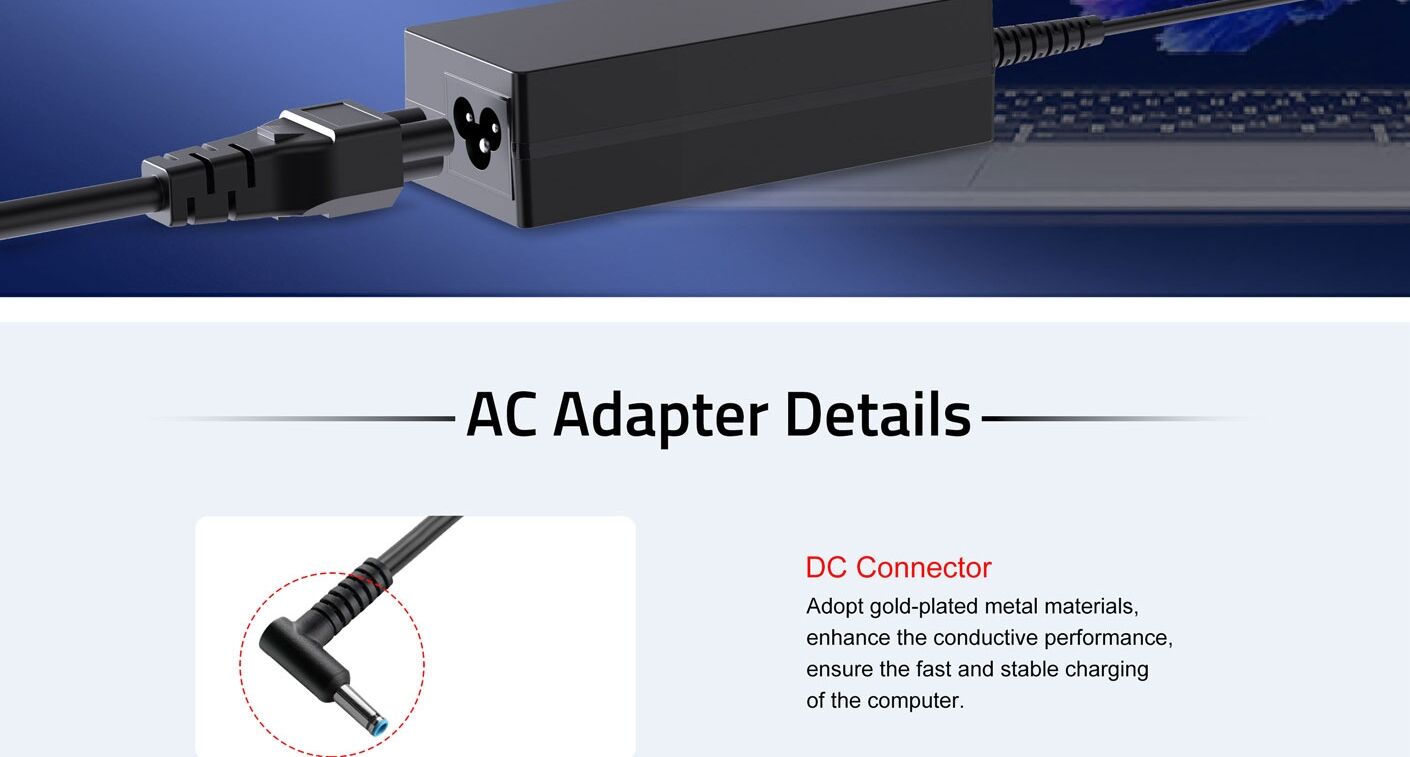

| DC line length/DC tips | Customizable |
| Product Size | 128.0*51.2*32.9mm |
| Product Color | Black/White |
INPUT VOLTAGE & FREQUENCY
| Input Voltage | Minimum | Nominal | Maximum |
| Input Voltage | 100Vac | 200/230Vac | 240Vac |
| Input Frequency | 47Hz | 50/60Hz | 63Hz |
INPUT CURRENT：The maximum input current is2A at 100Vac at full load
STATIC LOSS：The static loss is less than 0.21W at normal input voltage
Inrush current：50A peak @115VAC，35A peak @230VAC，Full load @25°C ambient cold start
RIPPLE AND NOISE：
The ripple and noise is less than 200mV measured by 20MHz bandwidth oscilloscope and terminated
each output with a 0.1uF ceramic capacitor and a 10uF aluminum electrolytic capacitor.
TURN ON DELAY：
During turn on,output voltage shall not exceed its nominal voltage by more than 10% and all
output shall reach their steady state values within 2 seconds of trun on.
The power supply shall go into latch-off mode when the IC's temperature is over its trigger point(145℃) ,
and when IC temperature is lower than regulation value , the power supply shall be self-recovering.
OPERATING CONDITION
| Ambient Temperature | 0°C~35C | Relative Humidity | 20%~90% |
STORAGE CONDITION
| Ambient Temperature | -20°C~70°C | Relative Humidity | 20%~90% |
Global Compliance & Tier-1 Certification Gain immediate market access with our fully
certified solutions. Anthy adapters are compliant with CE, LVD,EMC,TUV-GS, RoHS,
and REACH. As a TUV-Audited factory, we provide complete traceable test reports to support
your local compliance requirements
