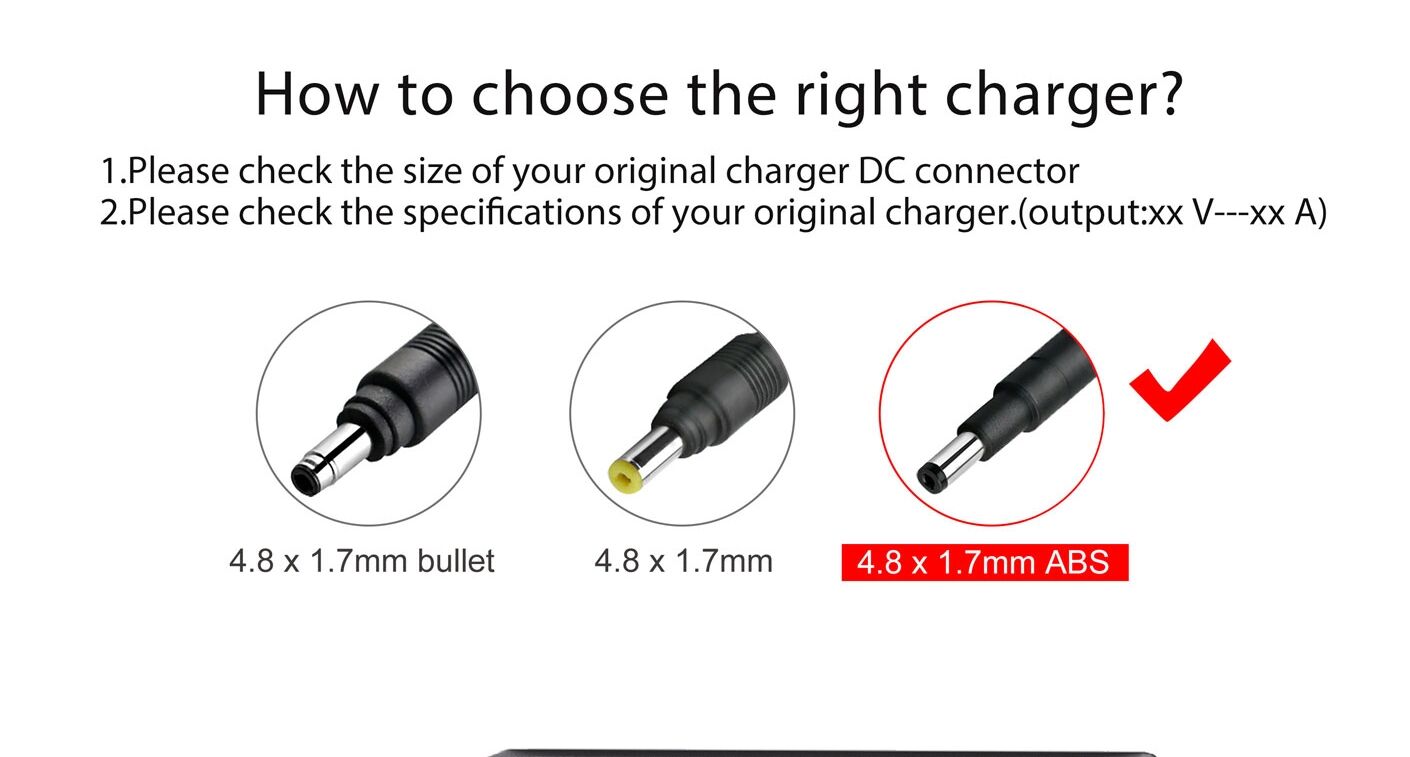

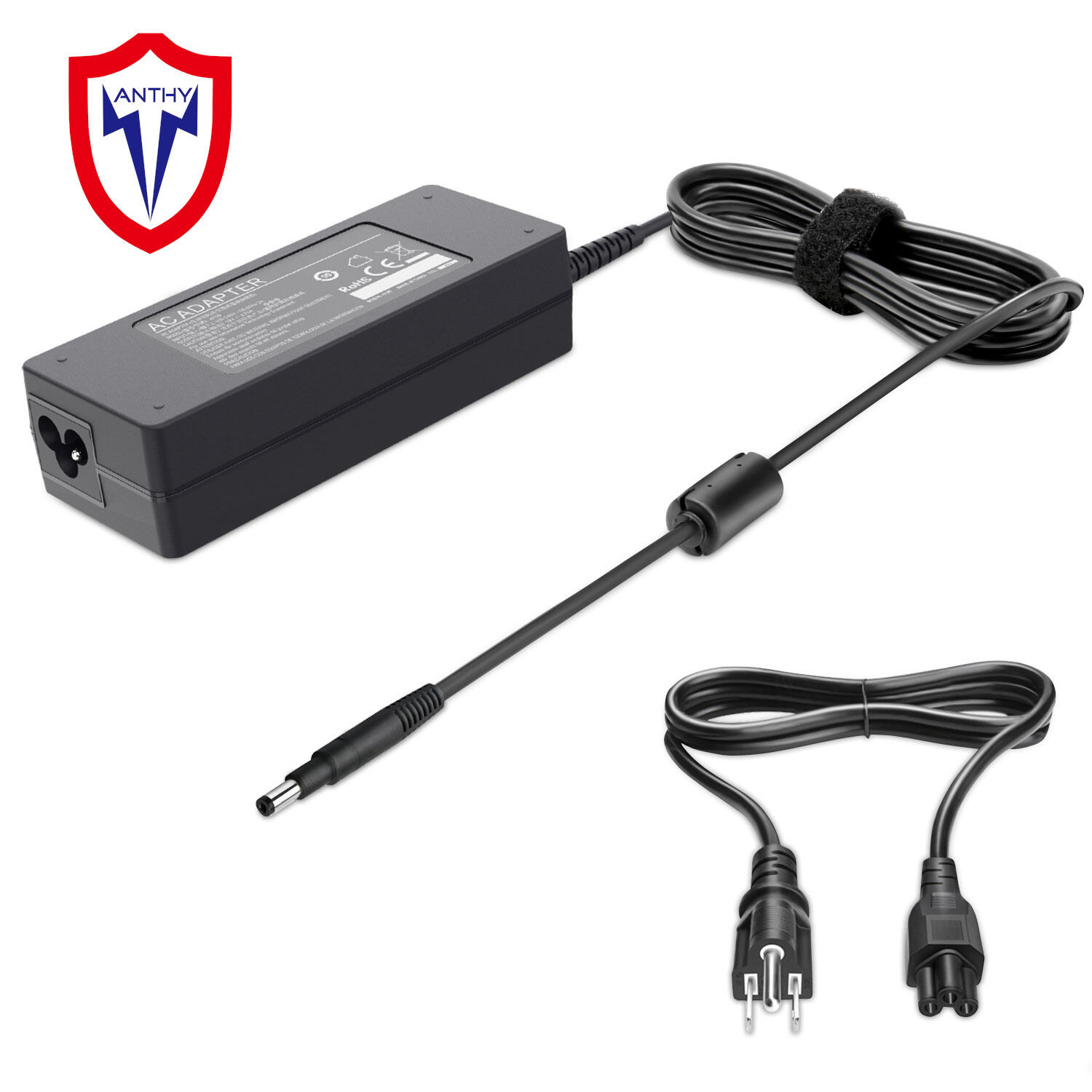

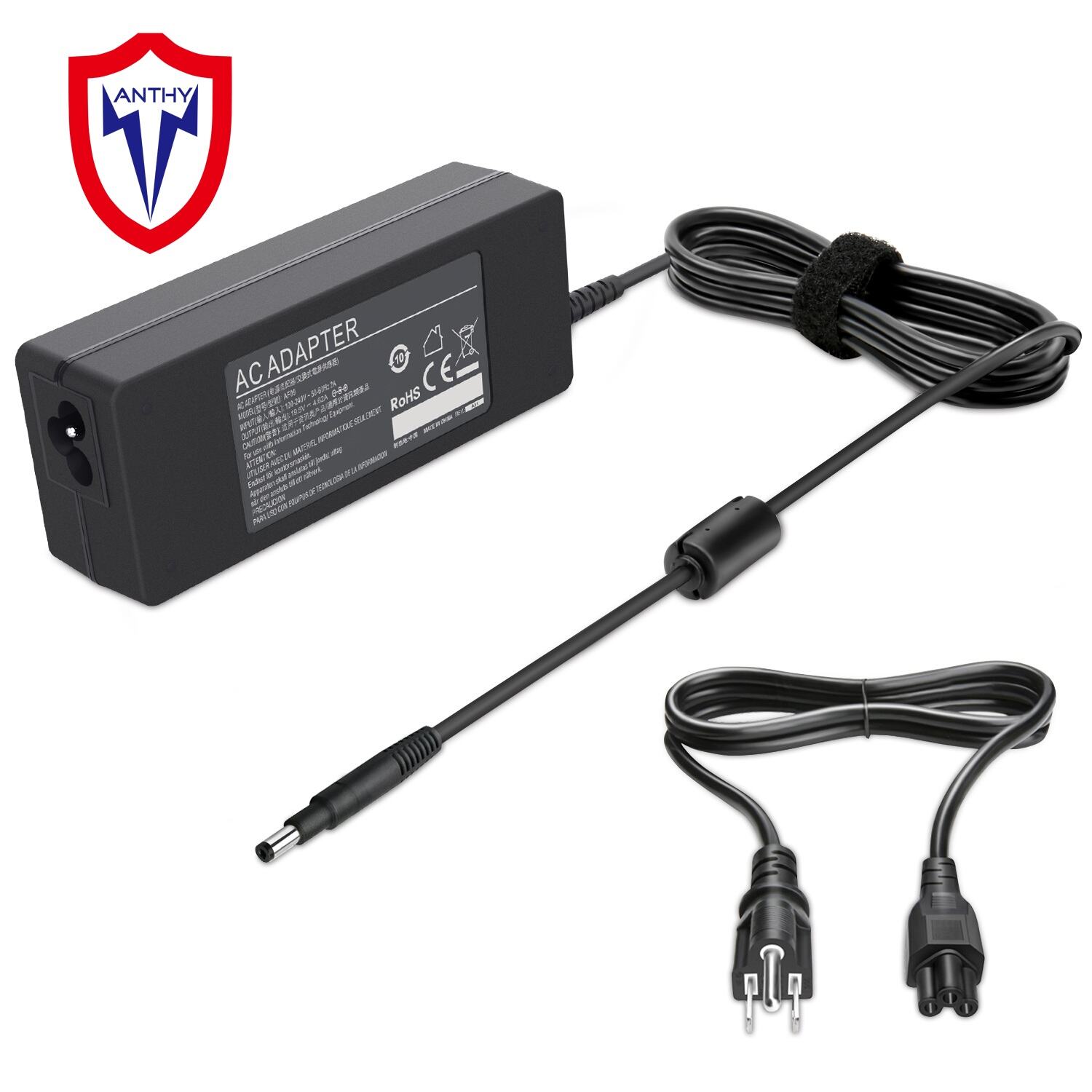

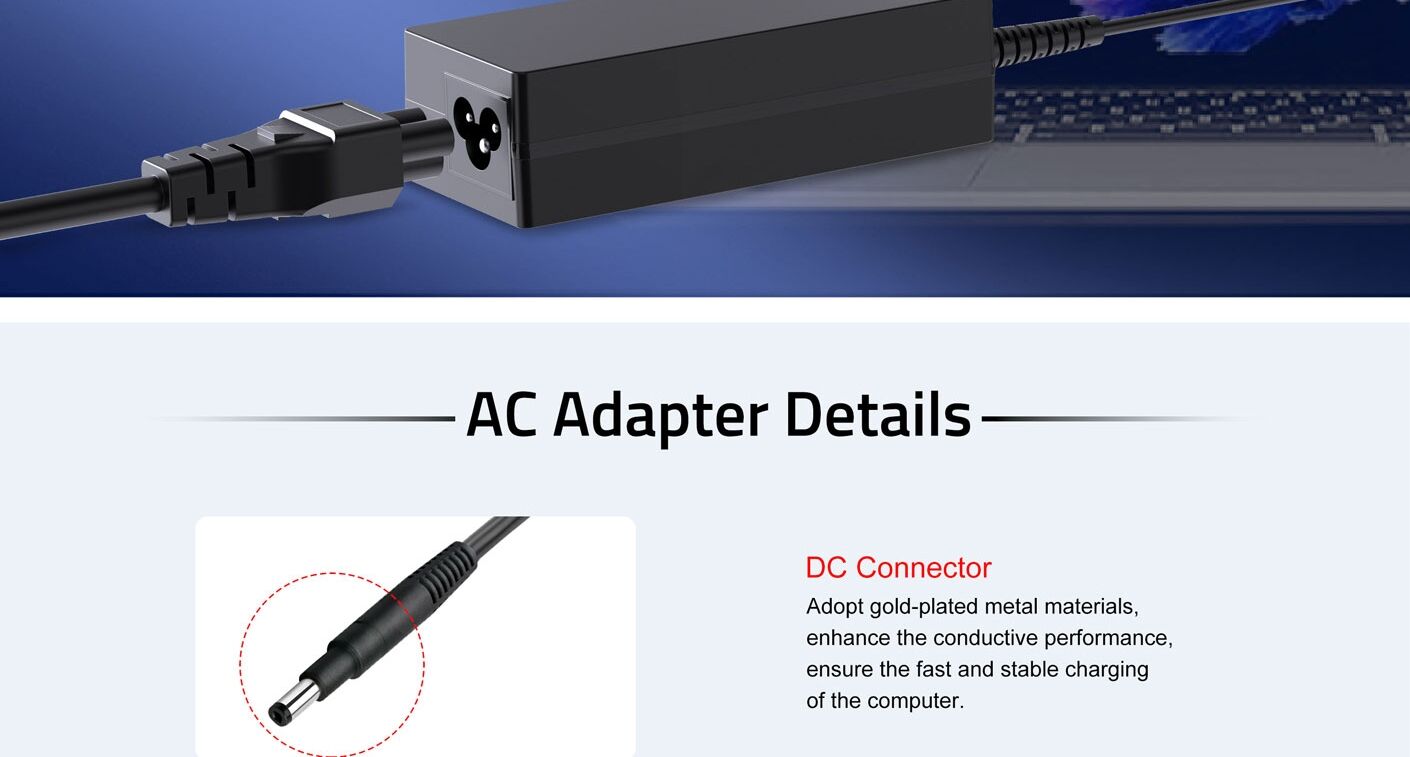

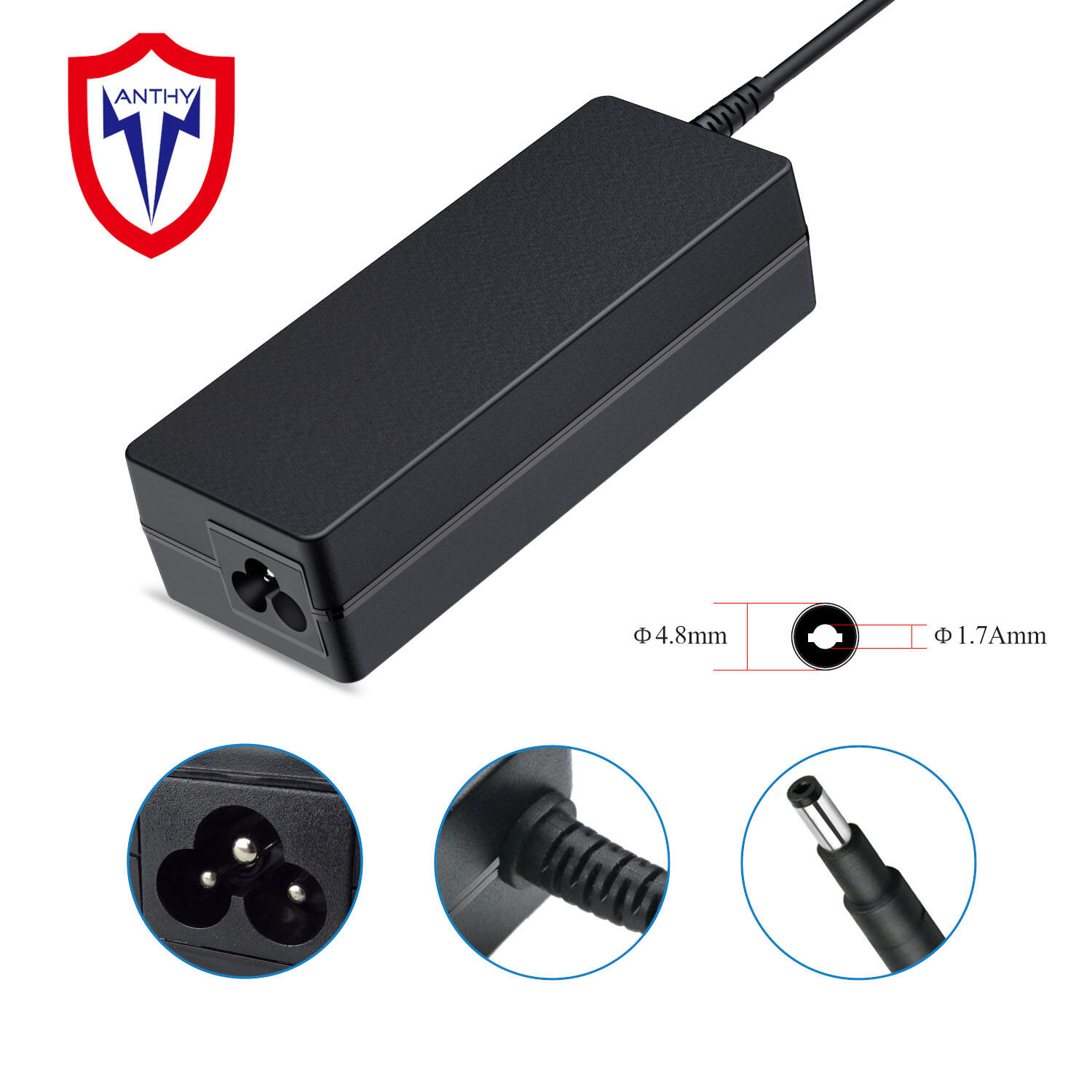

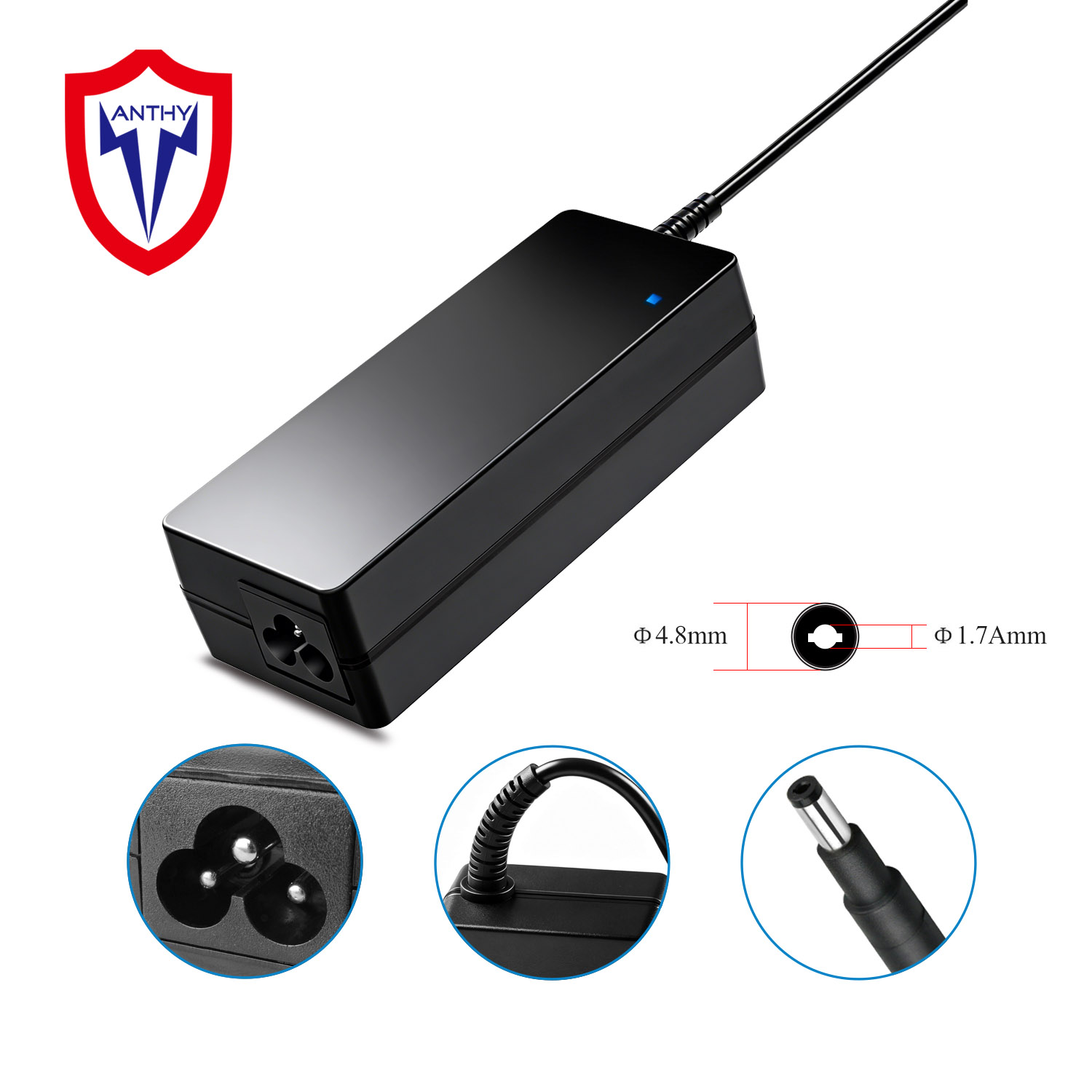

4.8*1.7mm ABS DC Connector(90W 19.5V 4.62A) HP Sleekbook 15-b060sf 14-b013cl 14-b031us
90W Power Output: Provides sufficient power to charge and run your Dell laptop efficiently.
Multiple Protection Features: Includes overvoltage, overcurrent, and short circuit protection, enhancing the safety and reliability of the adapter.
Basic parameters
| Product Series | 90W Laptop AC Adapter For HP |
| Input voltage/Input frequency | 100-240V 50-60Hz |

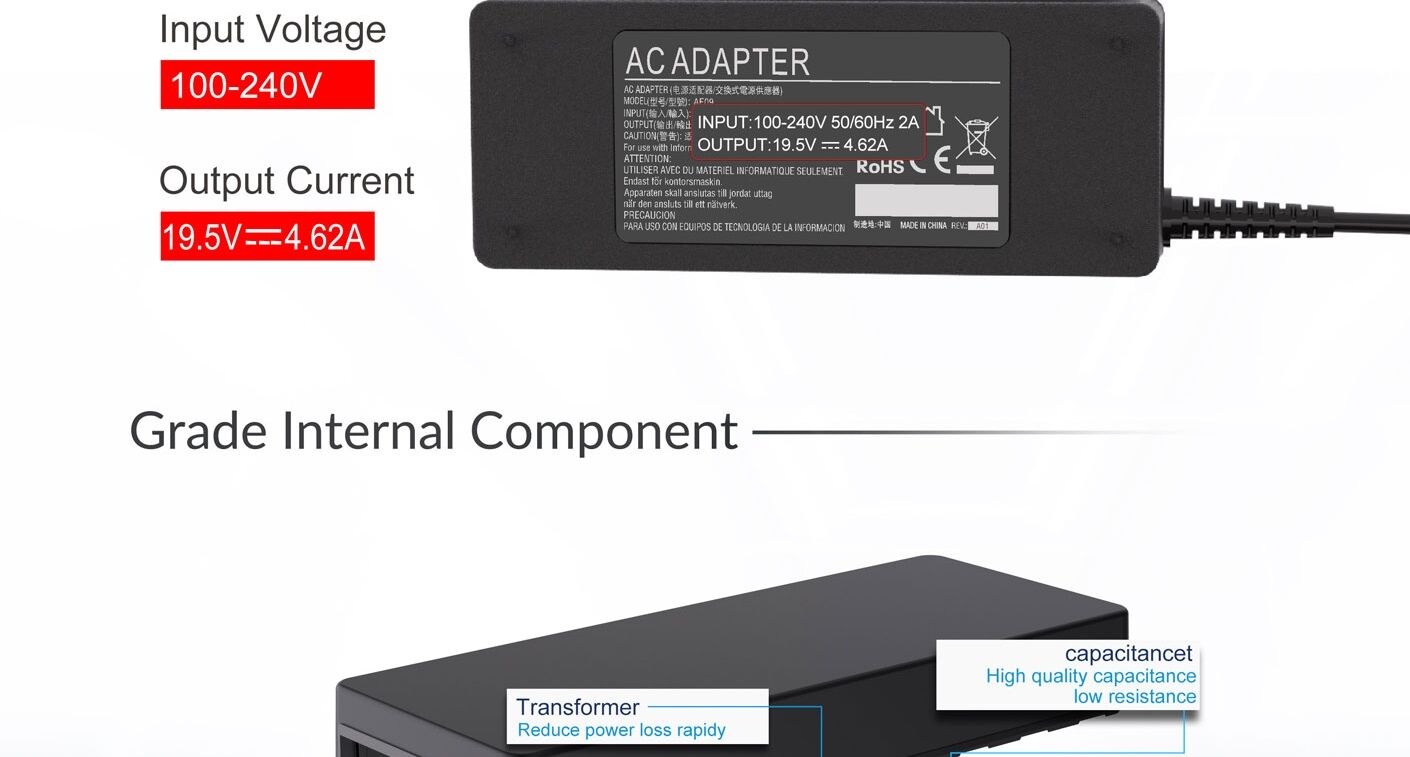

| Output voltage/Output current | 19.5V 4.62A |
| Static loss | ≤0.1W |
| Output ripple | ≤200mV |
| Output efficiency | ≥88% |
| Protection | Over voltage protection/Over current protection |
| Short circuit protection/Temperature protection |
Other Parameters

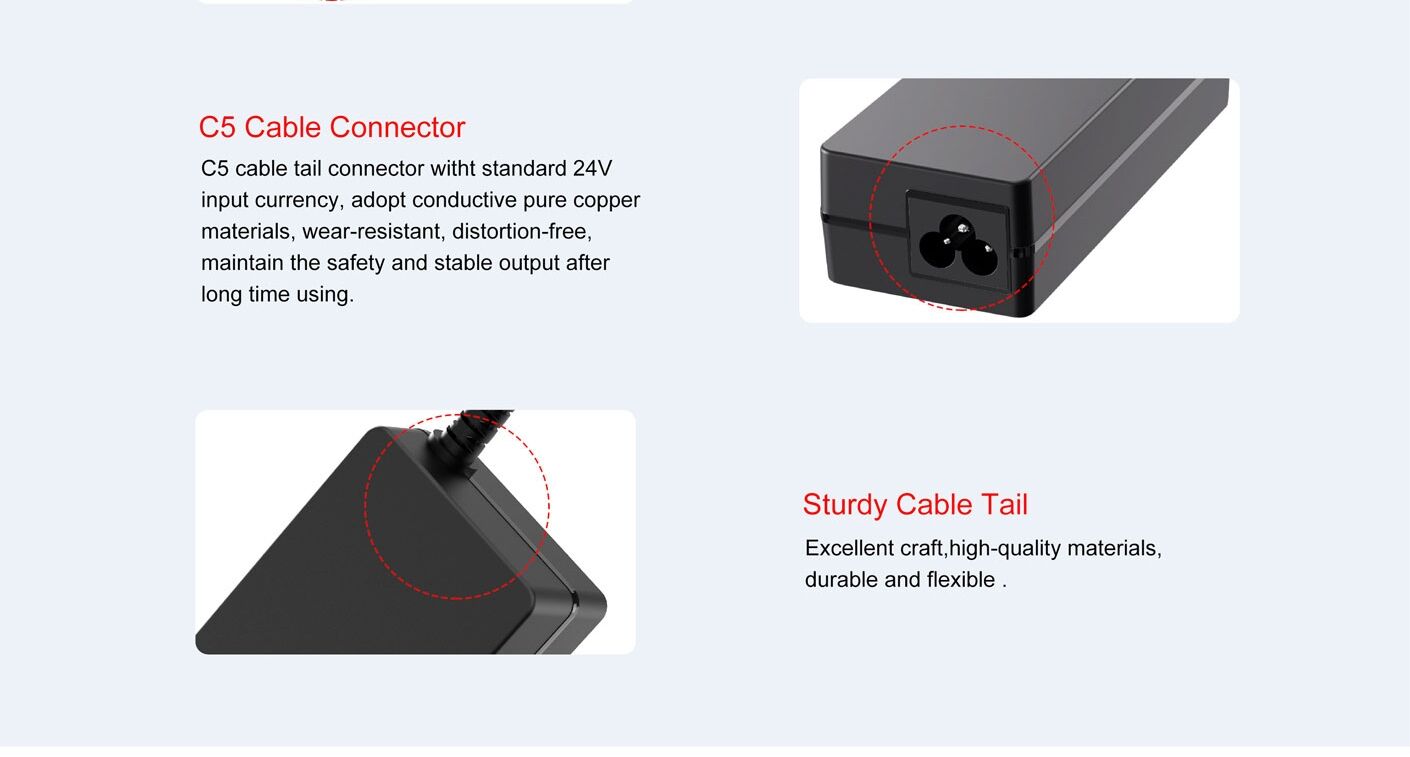

| AC Port | C5/C7 Cable Connector |
| AC cable Optiona | EU/UK/US/AU/IT/CN/SA/IL/BR |
| DC line length/DC tips | Customizable |
| Product Size | 128.0*51.2*32.9mm |
| Product Color | Black/White |
INPUT VOLTAGE & FREQUENCY
| Input Voltage | Minimum | Nominal | Maximum |
| Input Voltage | 100Vac | 200/230Vac | 240Vac |
| Input Frequency | 47Hz | 50/60Hz | 63Hz |
INPUT CURRENT：The maximum input current is2A at 100Vac at full load
STATIC LOSS：The static loss is less than 0.21W at normal input voltage
Inrush current：50A peak @115VAC，35A peak @230VAC，Full load @25°C ambient cold start
RIPPLE AND NOISE：
The ripple and noise is less than 200mV measured by 20MHz bandwidth oscilloscope and terminated
each output with a 0.1uF ceramic capacitor and a 10uF aluminum electrolytic capacitor.
TURN ON DELAY：
During turn on,output voltage shall not exceed its nominal voltage by more than 10% and all
output shall reach their steady state values within 2 seconds of trun on.
The power supply shall go into latch-off mode when the IC's temperature is over its trigger point(145℃) ,
and when IC temperature is lower than regulation value , the power supply shall be self-recovering.
OPERATING CONDITION
| Ambient Temperature | 0°C~35C | Relative Humidity | 20%~90% |
STORAGE CONDITION
| Ambient Temperature | -20°C~70°C | Relative Humidity | 20%~90% |
Global Compliance & Tier-1 Certification Gain immediate market access with our fully
certified solutions. Anthy adapters are compliant with CE, LVD,EMC,TUV-GS, RoHS,
and REACH. As a TUV-Audited factory, we provide complete traceable test reports to support
your local compliance requirements
