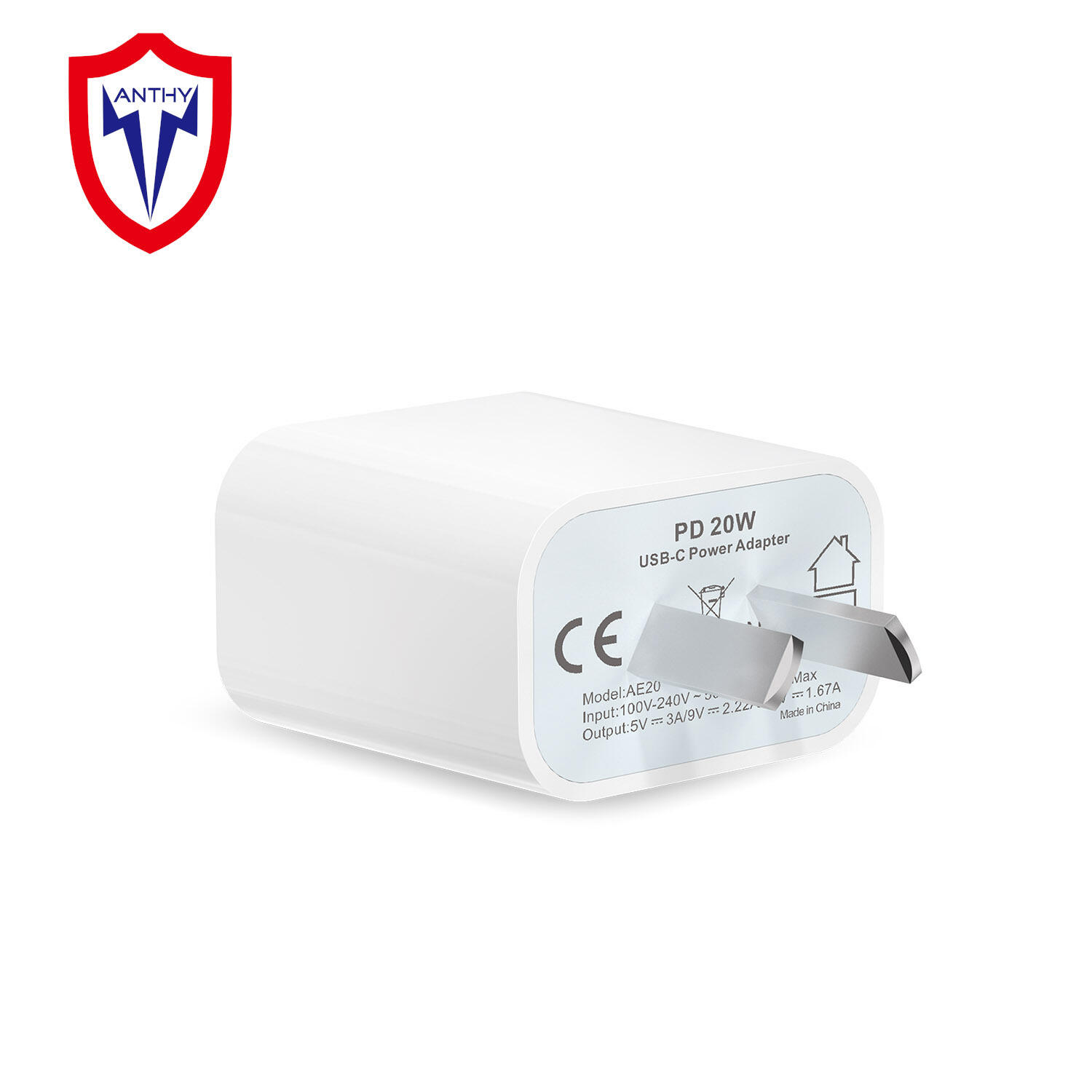

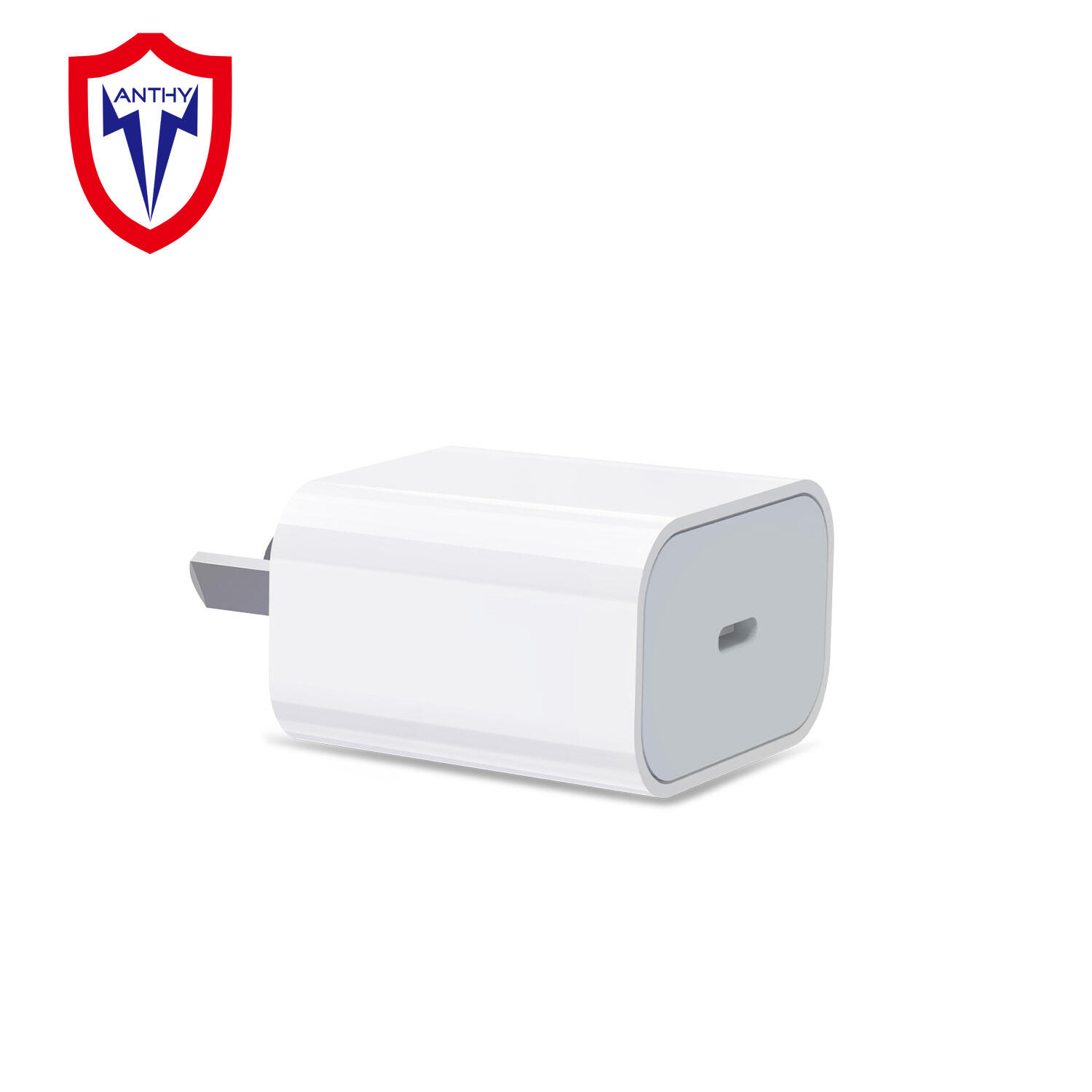

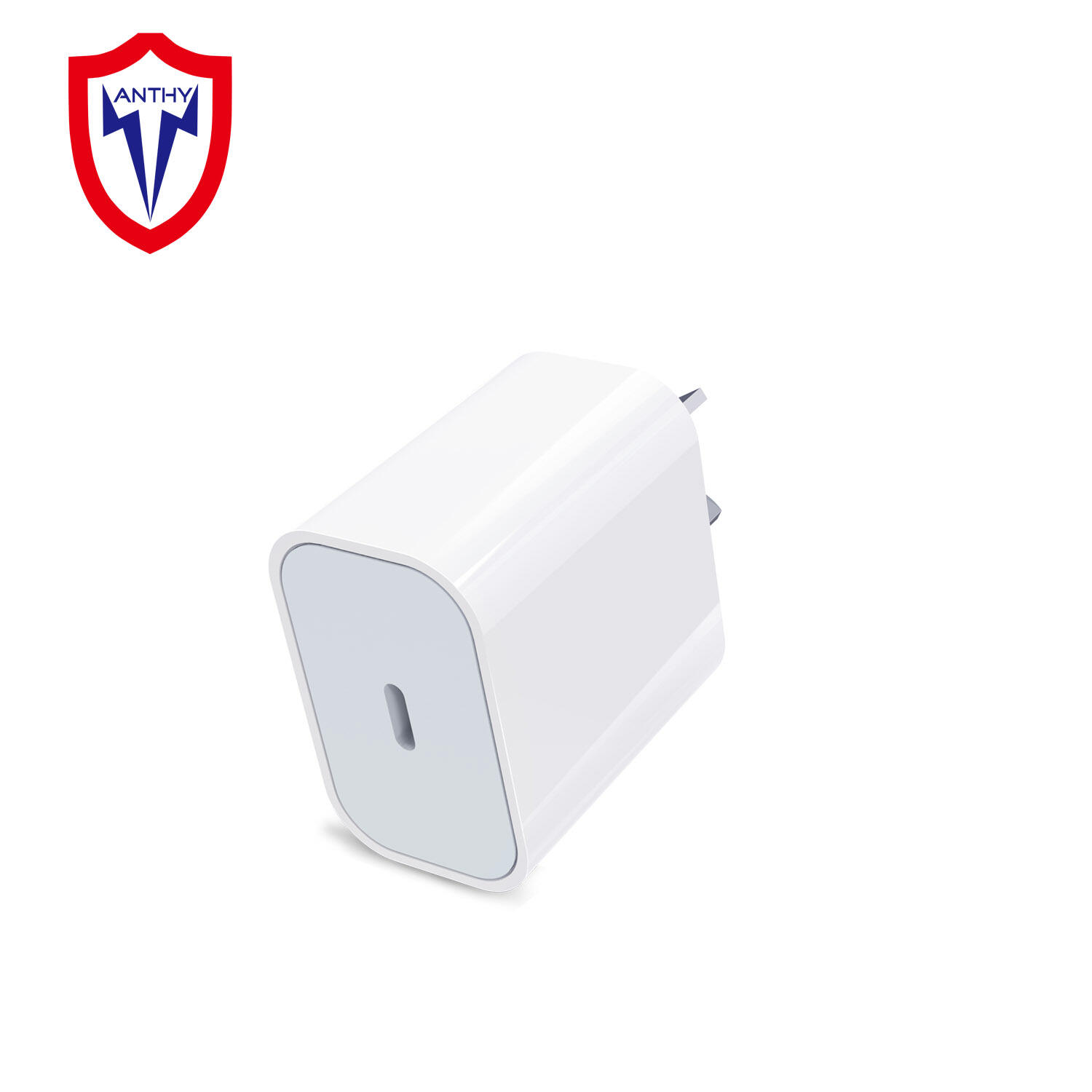

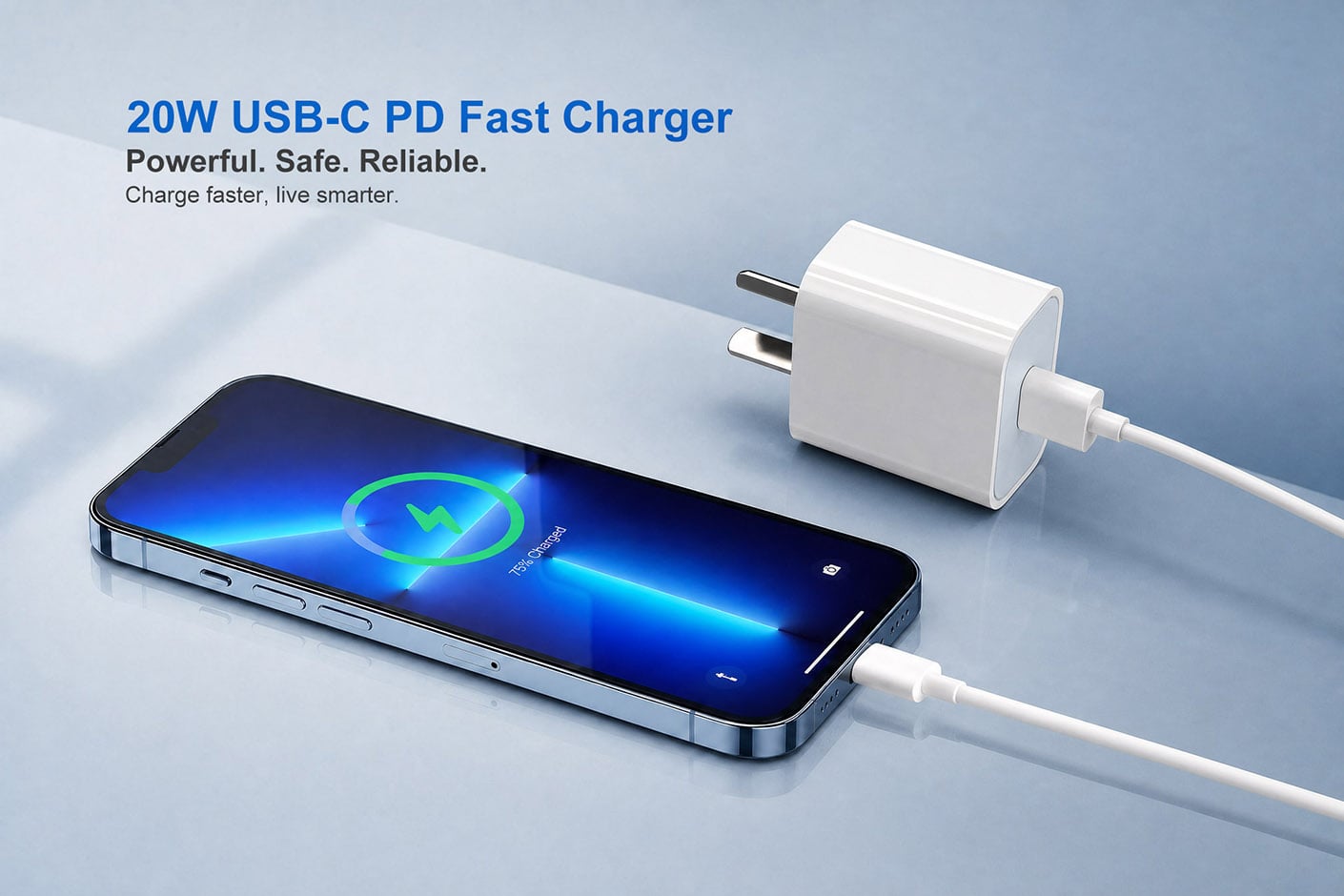

iPhone 16 15 Charger Fast Charging, 3 Pack 20W USB C Charger Block with 6FT Type C Cable, USB C Wall Plug for iPhone 16/15/16 Plus/16 Pro/16 Pro Max/15 Plus/15 Pro/15 Pro Max
Industrial-Grade Safety & Reliability Quality is our bedrock. Every unit undergoes a 100% Full-Load One
Week Aging Test before shipping. Our multi-protection system safeguards against:
OVP (Over Voltage Protection)
OCP (Over Current Protection)
SCP (Short Circuit Protection)
OTP (Over Temperature Protection)
Basic parameters

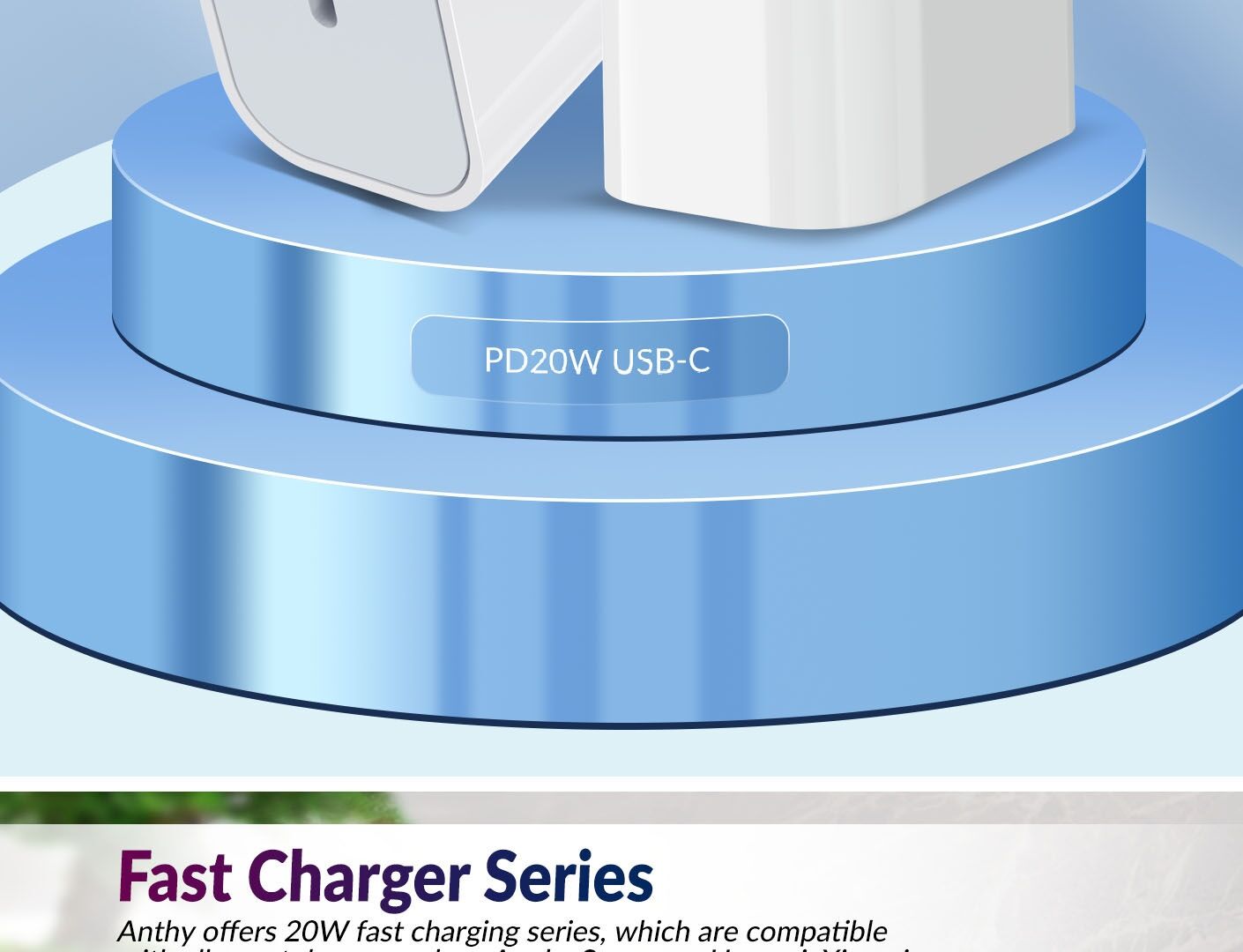

| Product Series | PD 20W USB-C Power Adapter |
| Input voltage/Input frequency | 100-240V 50-60Hz |
| Output voltage/Output current | 5V/3A,9V/2.22A,12V/1.67A |
| Static loss | ≤0.1W |
| Output ripple | ≤200mV |
| Output efficiency | ≥85.48% |
| Protection | Over voltage protection/Over current protection |
| Short circuit protection/Temperature protection |
Other Parameters
| socket standard | CN/EU/US/UK/KR/BR/AR/AU |
| Connector Type | AC Input 2 Plug |
| DC Output Type-C,Lightning | |
| Product Size | 43*27.5*41.5mm |
| Product Color | White/Black |
NPUT VOLTAGE & FREQUENCY
| Input Voltage | Minimum | Nominal | Maximum |
| Input Voltage | 100Vac | 200/230Vac | 240Vac |
| Input Frequency | 47Hz | 50/60Hz | 63Hz |
INPUT CURRENT:The maximum input current is 0.8A at 100Vac at full load
STATIC LOSS:The static loss is less than 0.1W at normal input voltage
Inrush current:45A peak @115VAC，35A peak @230VAC，Full load @25°C ambient cold start
Trickle protection Not afraid to charge it all night
When PD fast charging is in operation, once the battery reaches 80%the intelligent trickle mode is activated to lower the charging
temperature,ensuring the battery is fully charged and extending its lifespan
RIPPLE AND NOISE
The ripple and noise is less than 200mV measured by 20MHz bandwidth oscilloscope and
terminated each output with a 0.1uF ceramic capacitor and a 10uF aluminum electrolytic capacitor.
TURN ON DELAY
During turn on,output voltage shall not exceed its nominal voltage by more than 10% and all output
shall reach their steady state values within 2 seconds of trun on
HOLD UP TIME
When the power supply turns off,the output voltage shall hold up more than 10 msec.
OPERATING CONDITION
| Ambient Temperature | 0°C~35C | Relative Humidity | 20%~90% |
STORAGE CONDITION
| Ambient Temperature | -20°C~70°C | Relative Humidity | 20%~90% |
