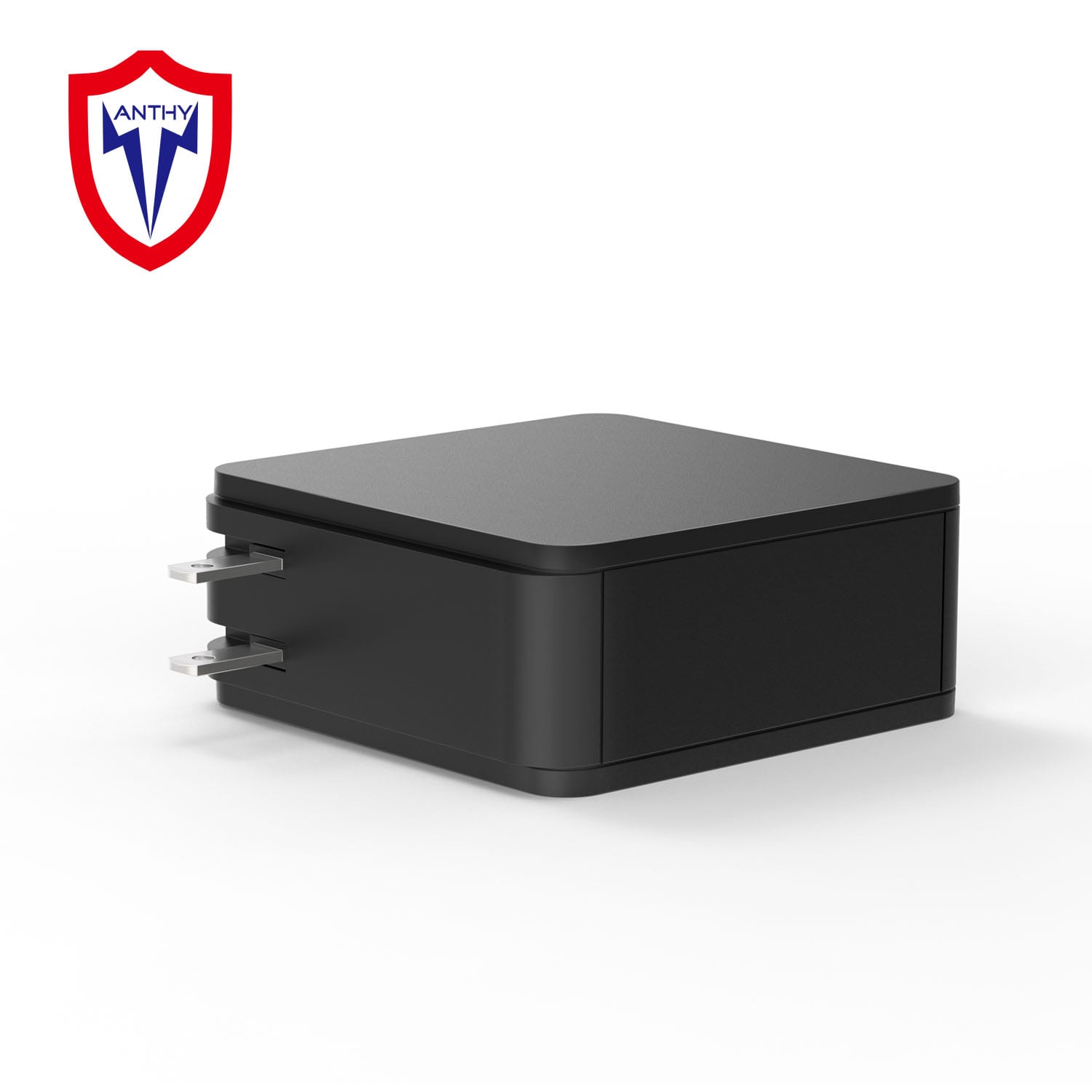

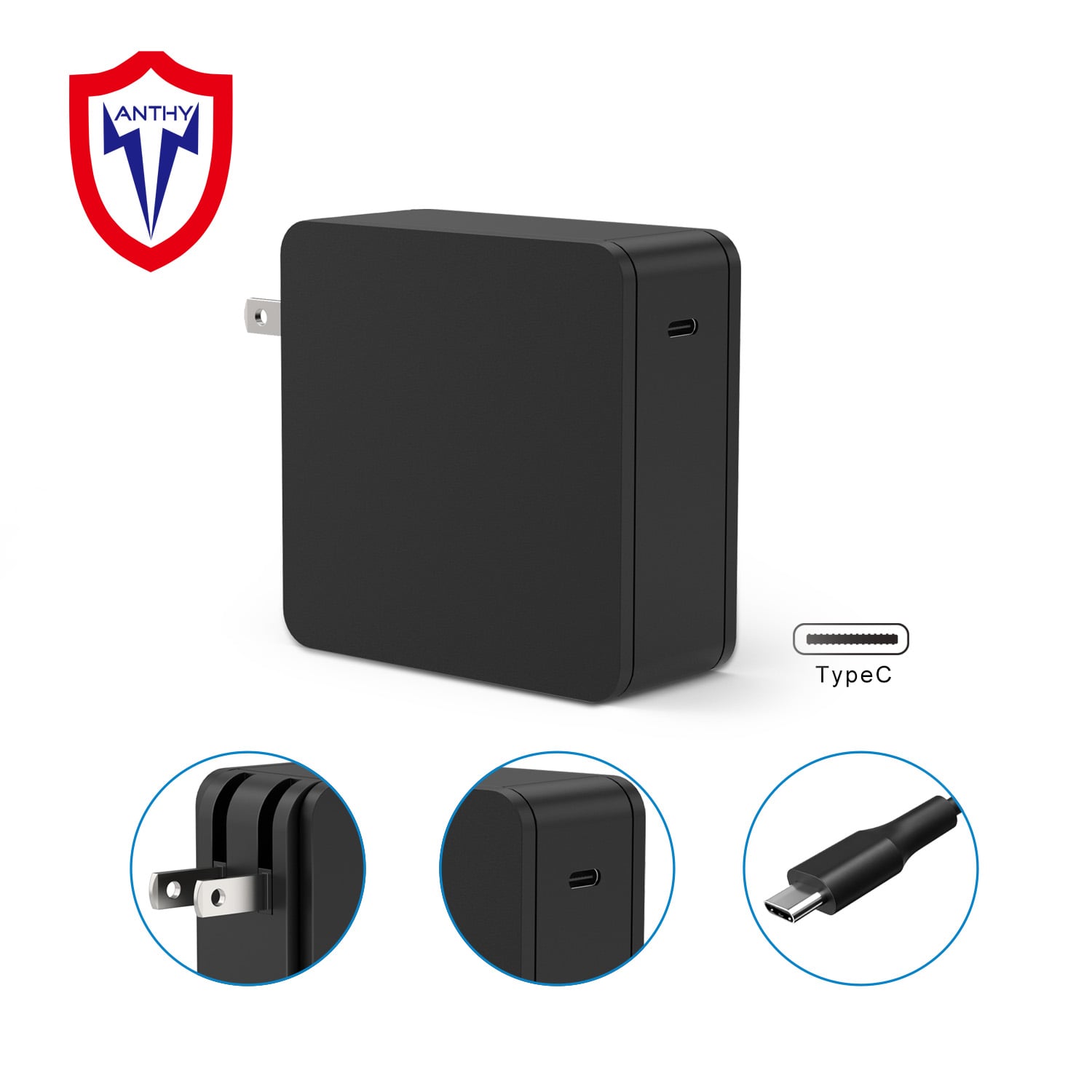

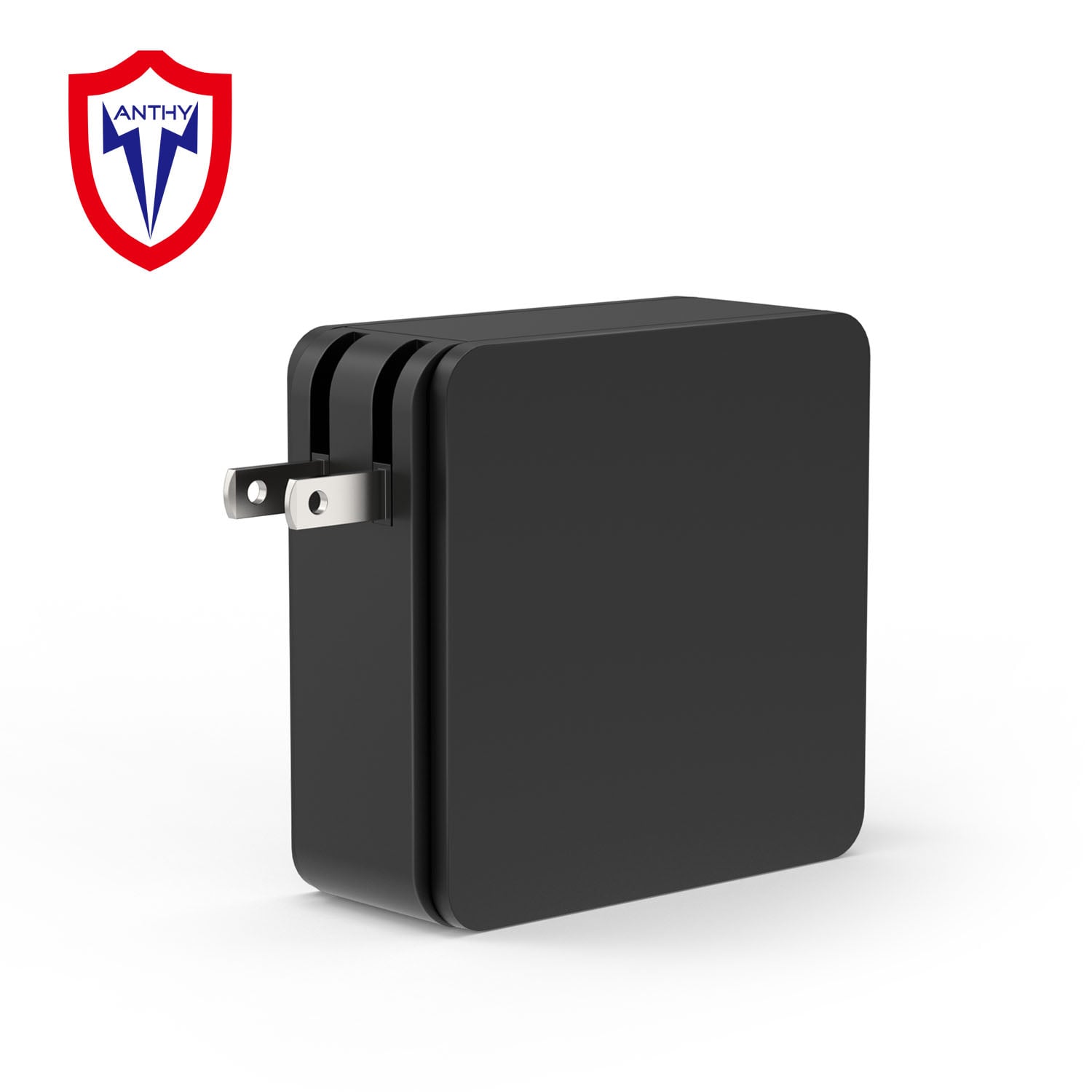

USB Type-C Charger 65W USB C International Laptop Power Adapter for Macbook Laptop Adapter Charger Type c with Extended Cable
Industrial-Grade Safety & Reliability Quality is our bedrock. Every unit undergoes a 100% Full-Load One
Week Aging Test before shipping. Our multi-protection system safeguards against:
OVP (Over Voltage Protection)
OCP (Over Current Protection)
SCP (Short Circuit Protection)
OTP (Over Temperature Protection)
Basic parameters
| Product Series | 65W USB-C AC Adapter |
| Input voltage/Input frequency | 100-240V 50-60Hz |
| Output voltage/Output current | 5V/3A,9V/3A,12V/3A,15V/3A,20V/3.25A |
| Static loss | ≤0.1W |
| Output ripple | ≤200mV |
| Output efficiency | ≥88% |
| Protection | Over voltage protection/Over current protection |
| Short circuit protection/Temperature protection |
Other Parameters
| AC Plug | Not Removable |
| AC Plug | EU/US/CN Plug |
| DC line length/DC tips | Customizable |
| Product Size | 76.2*76.2x38x32.7mm |
| Product Color | Black/White |
INPUT VOLTAGE & FREQUENCY
| Input Voltage | Minimum | Nominal | Maximum |
| Input Voltage | 100Vac | 200/230Vac | 240Vac |
| Input Frequency | 47Hz | 50/60Hz | 63Hz |
INPUT CURRENT:The maximum input current is 2A at 100Vac at full load
STATIC LOSS:The static loss is less than 0.1W at normal input voltage
Inrush current:45A peak @115VAC，30A peak @230VAC，Full load @25°C ambient cold start
RIPPLE AND NOISE
The ripple and noise is less than 200mV measured by 20MHz bandwidth oscilloscope and
terminated each output with a 0.1uF ceramic capacitor and a 10uF aluminum electrolytic capacitor.
TURN ON DELAY
During turn on,output voltage shall not exceed its nominal voltage by more than 10% and all output
shall reach their steady state values within 2 seconds of trun on
HOLD UP TIME
When the power supply turns off,the output voltage shall hold up more than 10 msec.
OPERATING CONDITION
| Ambient Temperature | 0°C~35C | Relative Humidity | 20%~90% |
STORAGE CONDITION
| Ambient Temperature | -20°C~70°C | Relative Humidity | 20%~90% |
Global Compliance & Tier-1 Certification Gain immediate market access with our fully certified solutions. Anthy adapters are compliant with
CE-LVD,CE-EMC,CB, RoHS,and REACH. As a TUV-Audited factory, we provide complete traceable test reports to support
your local compliance requirements
