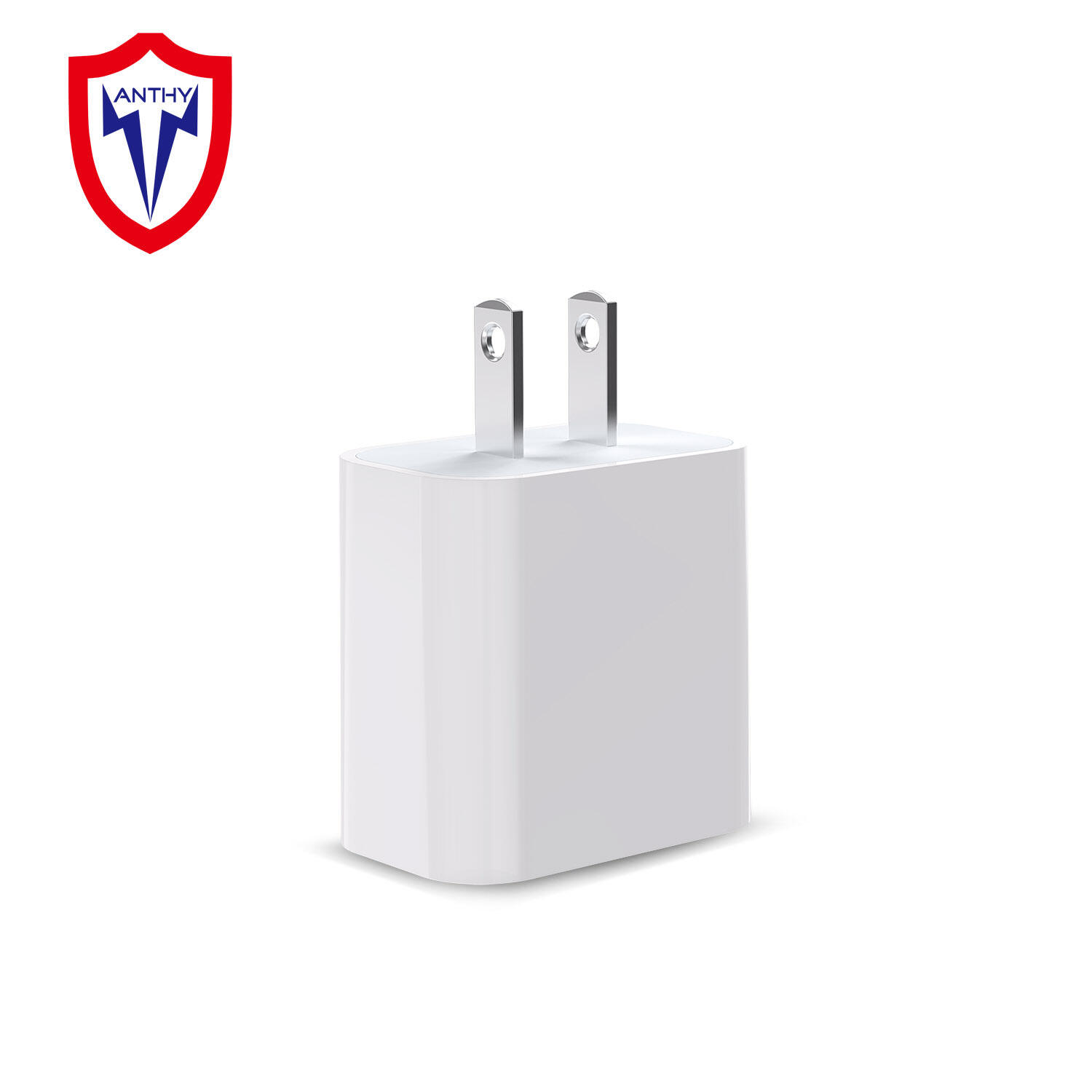

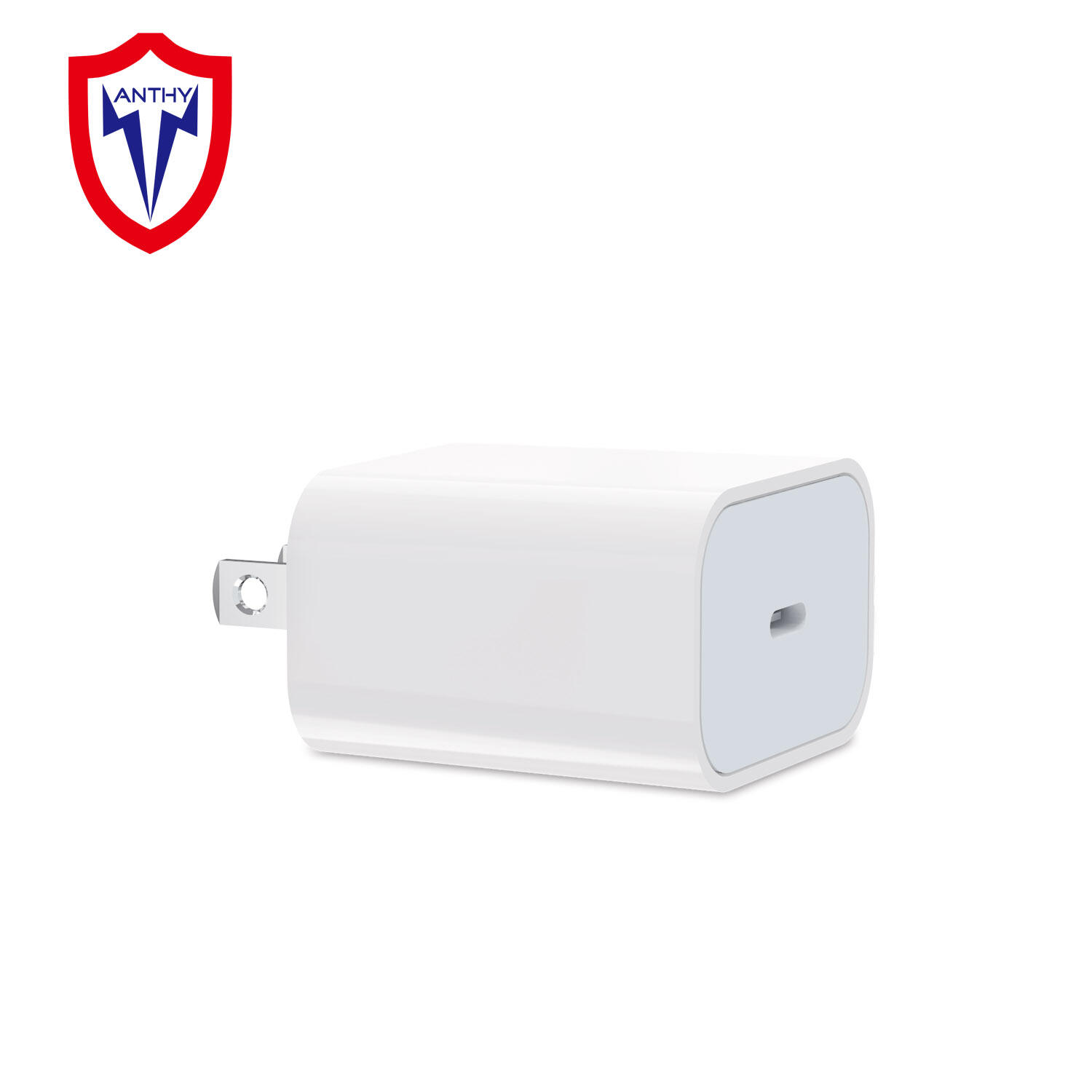

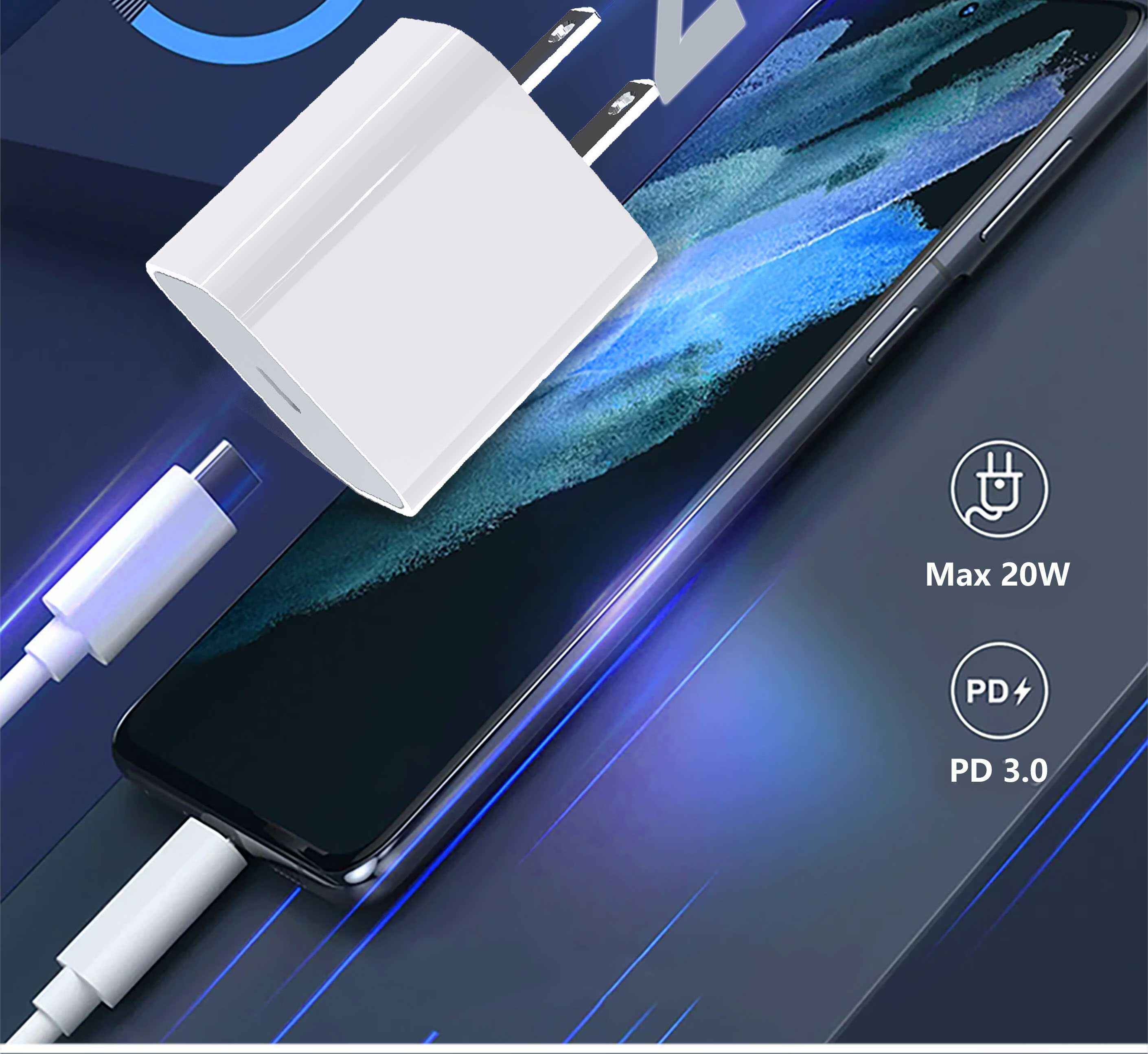

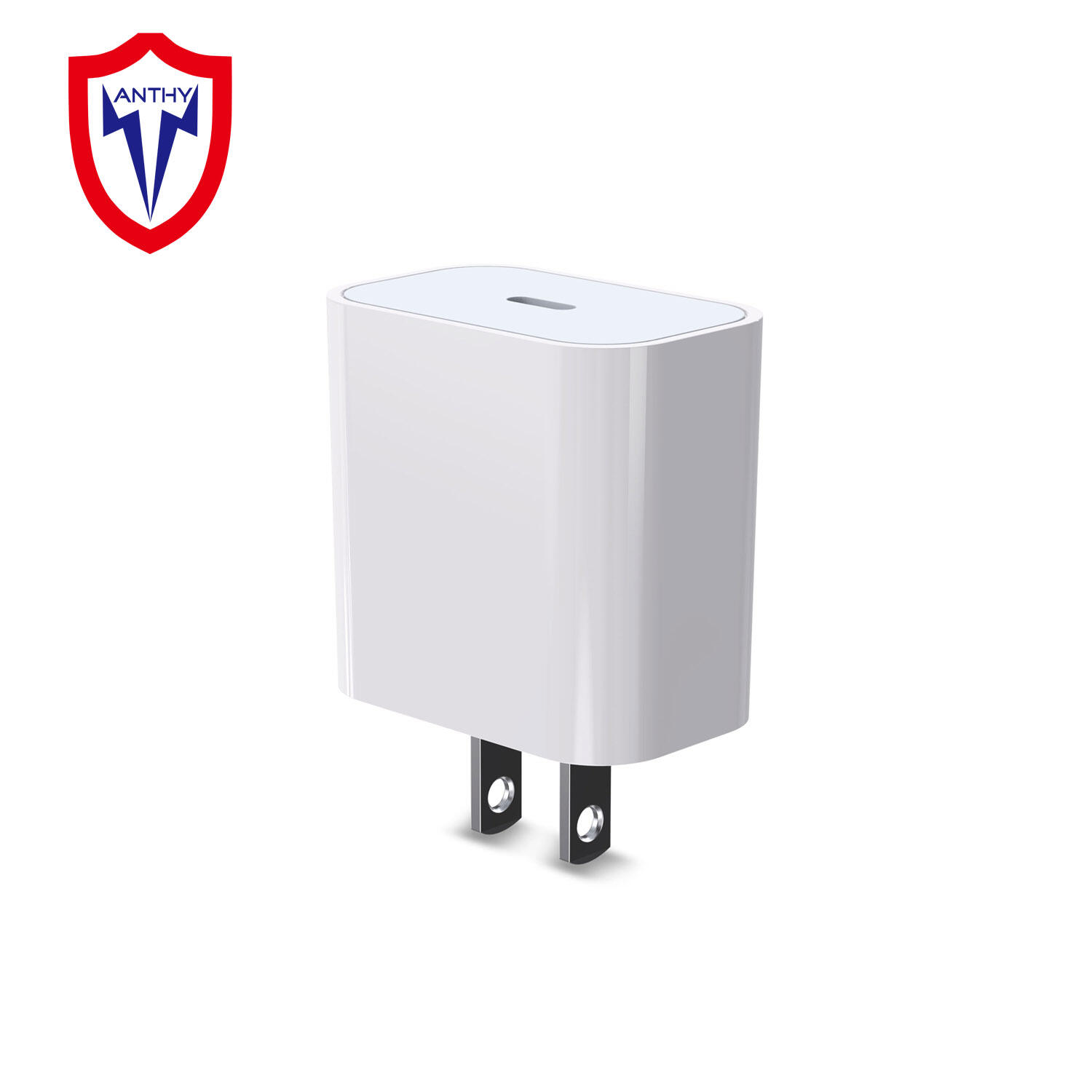

iPhone 16 15 Charger Fast Charging, 3 Pack 20W USB C Charger Block with 6FT Type C Cable, USB C Wall Plug for iPhone 16/15/16 Plus/16 Pro/16 Pro Max/15 Plus/15 Pro/15 Pro Max
Industrial-Grade Safety & Reliability Quality is our bedrock. Every unit undergoes a 100% Full-Load One
Week Aging Test before shipping. Our multi-protection system safeguards against:
OVP (Over Voltage Protection)
OCP (Over Current Protection)
SCP (Short Circuit Protection)
OTP (Over Temperature Protection)
Basic parameters
| Product Series | PD 20W USB-C Power Adapter |
| Input voltage/Input frequency | 100-240V 50-60Hz |
| Output voltage/Output current | 5V/3A,9V/2.22A,12V/1.67A |
| Static loss | ≤0.1W |
| Output ripple | ≤200mV |
| Output efficiency | ≥85.48% |
| Protection | Over voltage protection/Over current protection |
| Short circuit protection/Temperature protection |
Other Parameters
| socket standard | CN/EU/US/KR/BR/AR/AU |
| Connector Type | AC Input 2 Plug |
| DC Output Type-C,Lightning | |
| Product Size | 43*27.5*41.5mm |
| Product Color | White/Black |

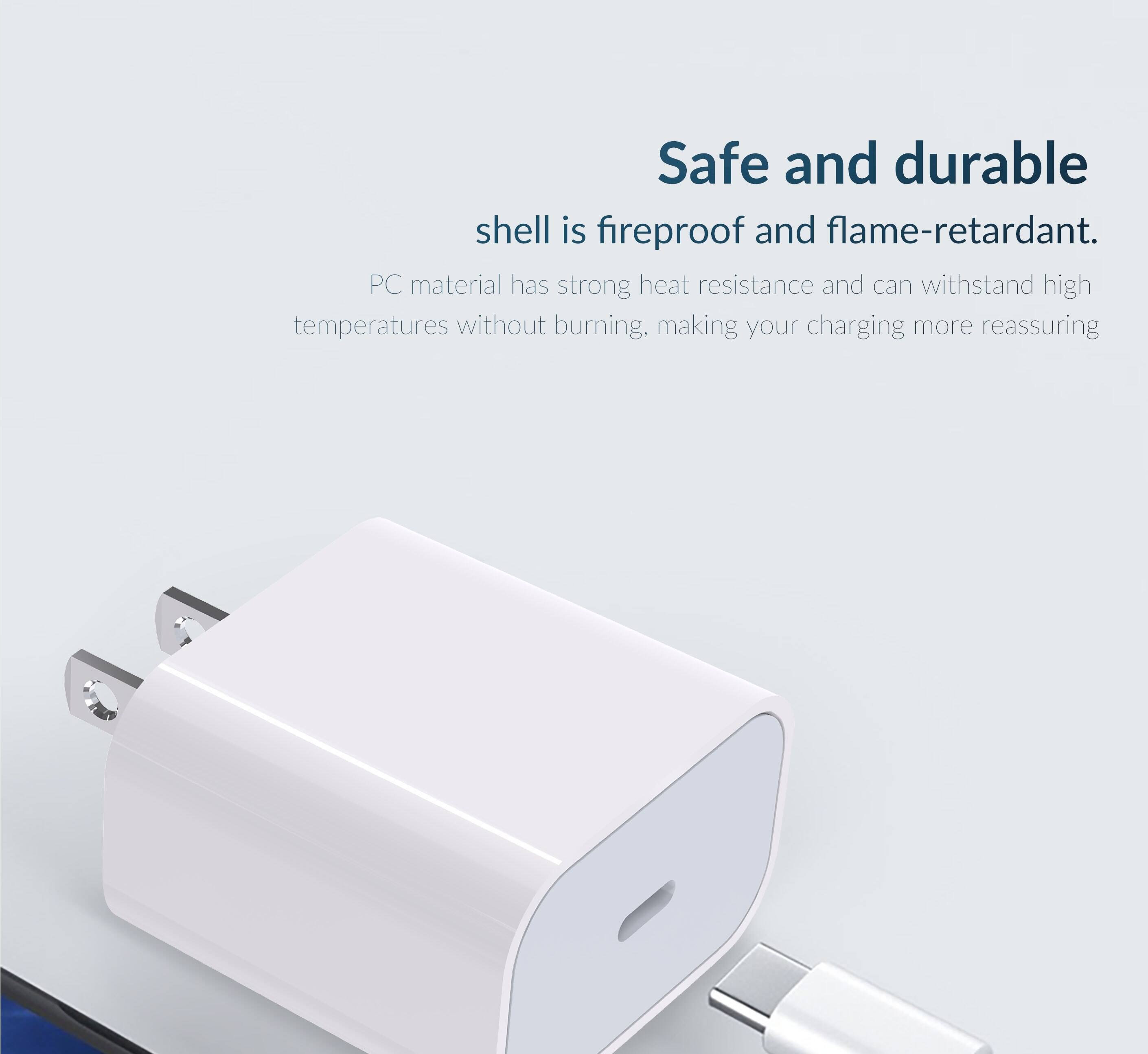

Safe and durable shell is fireproof and flame-retardant.
PC material has strong heat resistance and can withstand hightemperatures without burning, making your charging more reassuring

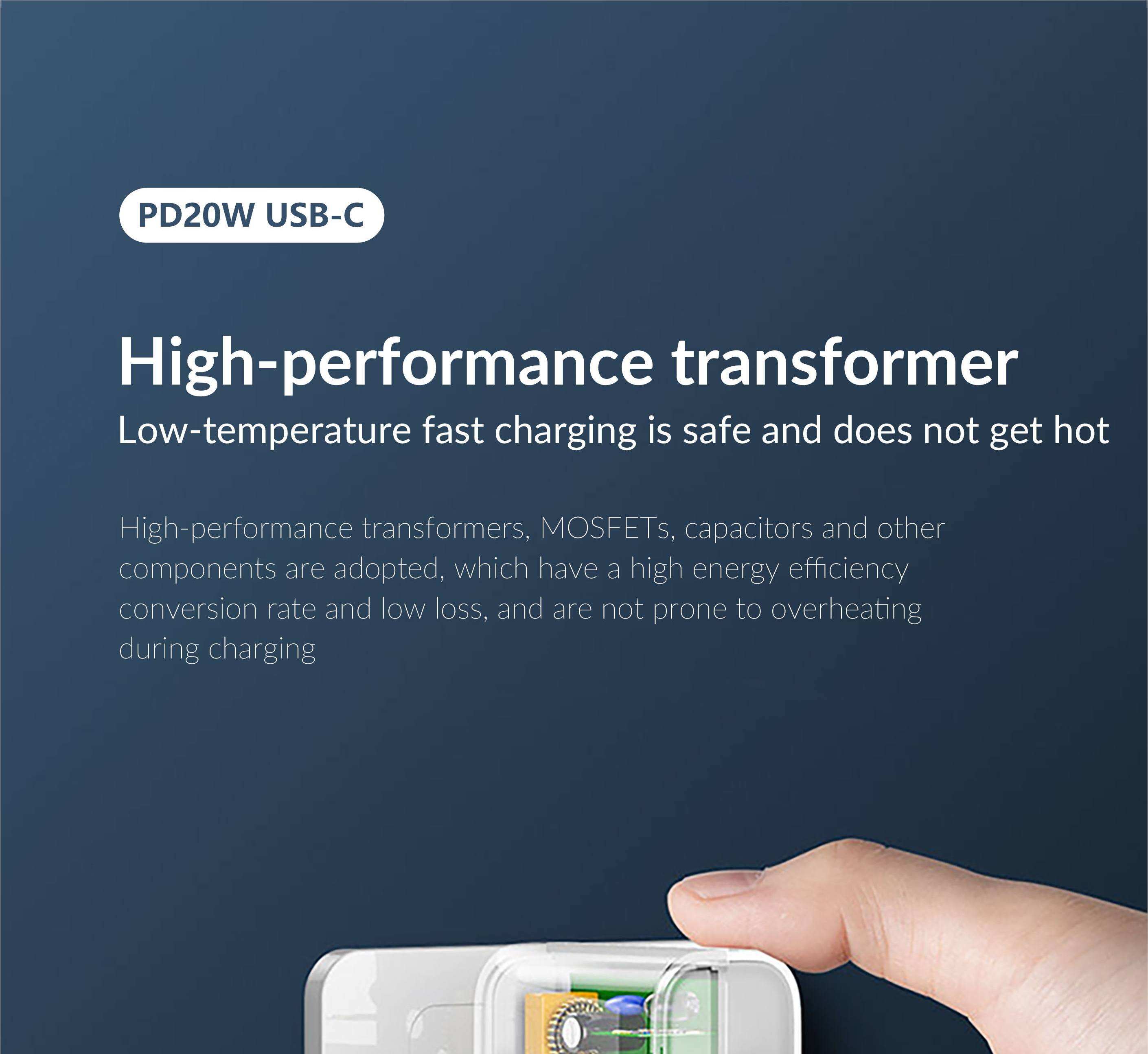

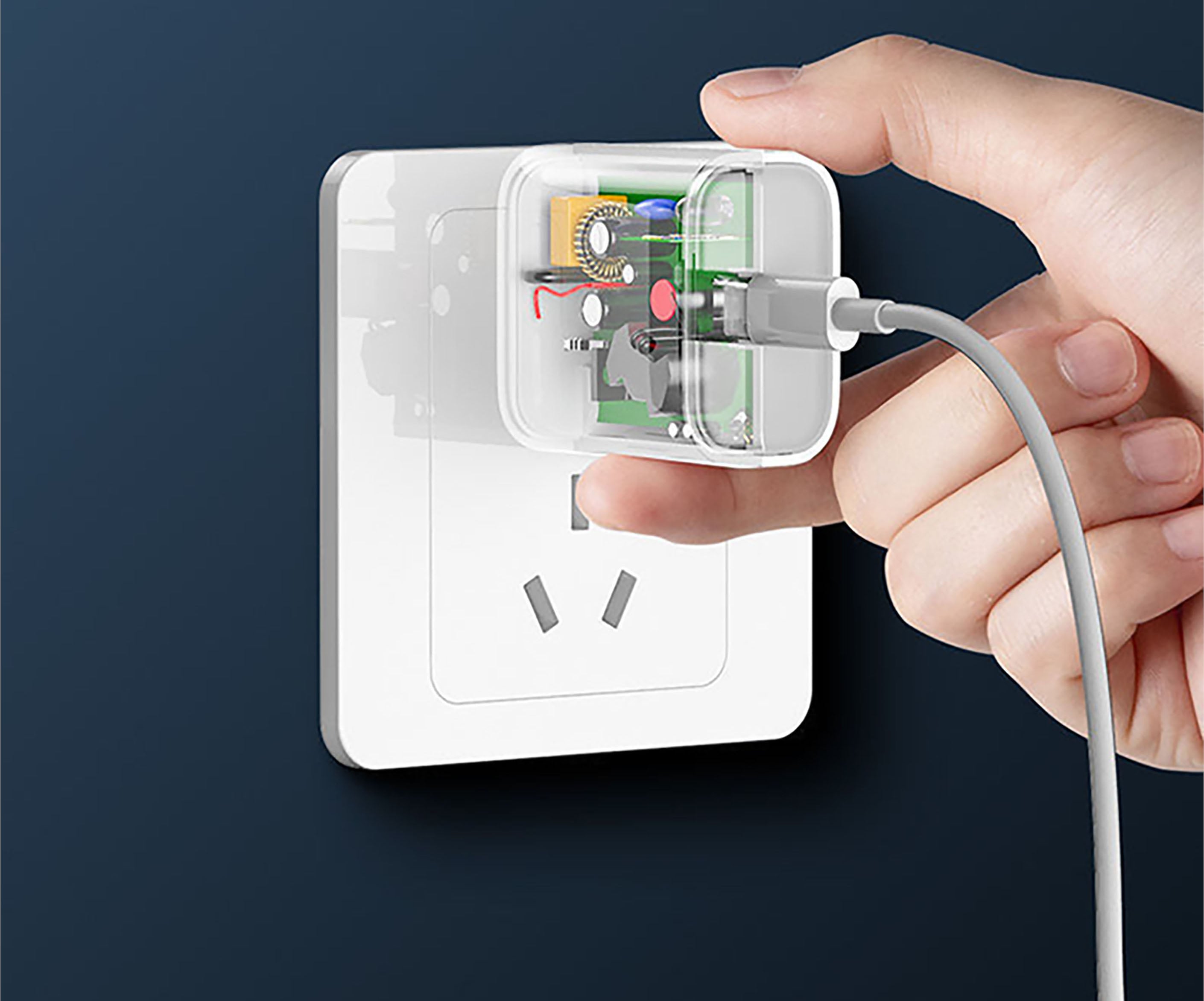

High-performance transformer
Low-temperature fast charging is safe and does not get hot
High-performance transformers, MOSFETs, capacitors and othercomponents are adopted,
which have a high energy efficiencyconversion rate and low loss, and are not prone to overheatingduring charging
NPUT VOLTAGE & FREQUENCY
| Input Voltage | Minimum | Nominal | Maximum |
| Input Voltage | 100Vac | 200/230Vac | 240Vac |
| Input Frequency | 47Hz | 50/60Hz | 63Hz |
INPUT CURRENT:The maximum input current is 0.8A at 100Vac at full load
STATIC LOSS:The static loss is less than 0.1W at normal input voltage
Inrush current:45A peak @115VAC，35A peak @230VAC，Full load @25°C ambient cold start
RIPPLE AND NOISE
The ripple and noise is less than 200mV measured by 20MHz bandwidth oscilloscope and
terminated each output with a 0.1uF ceramic capacitor and a 10uF aluminum electrolytic capacitor.
TURN ON DELAY
During turn on,output voltage shall not exceed its nominal voltage by more than 10% and all output
shall reach their steady state values within 2 seconds of trun on
HOLD UP TIME
When the power supply turns off,the output voltage shall hold up more than 10 msec.
OPERATING CONDITION
| Ambient Temperature | 0°C~35C | Relative Humidity | 20%~90% |
STORAGE CONDITION
| Ambient Temperature | -20°C~70°C | Relative Humidity | 20%~90% |
