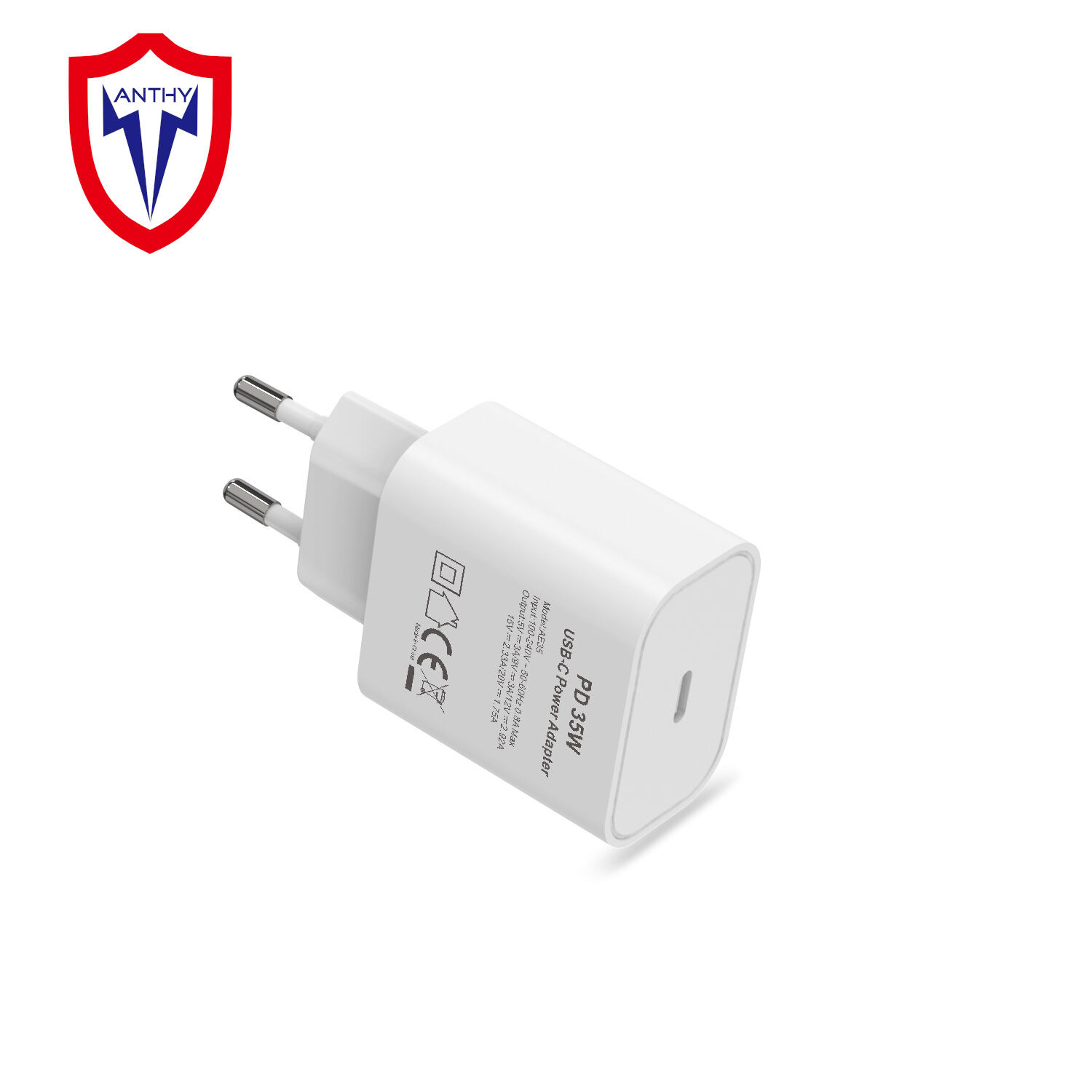

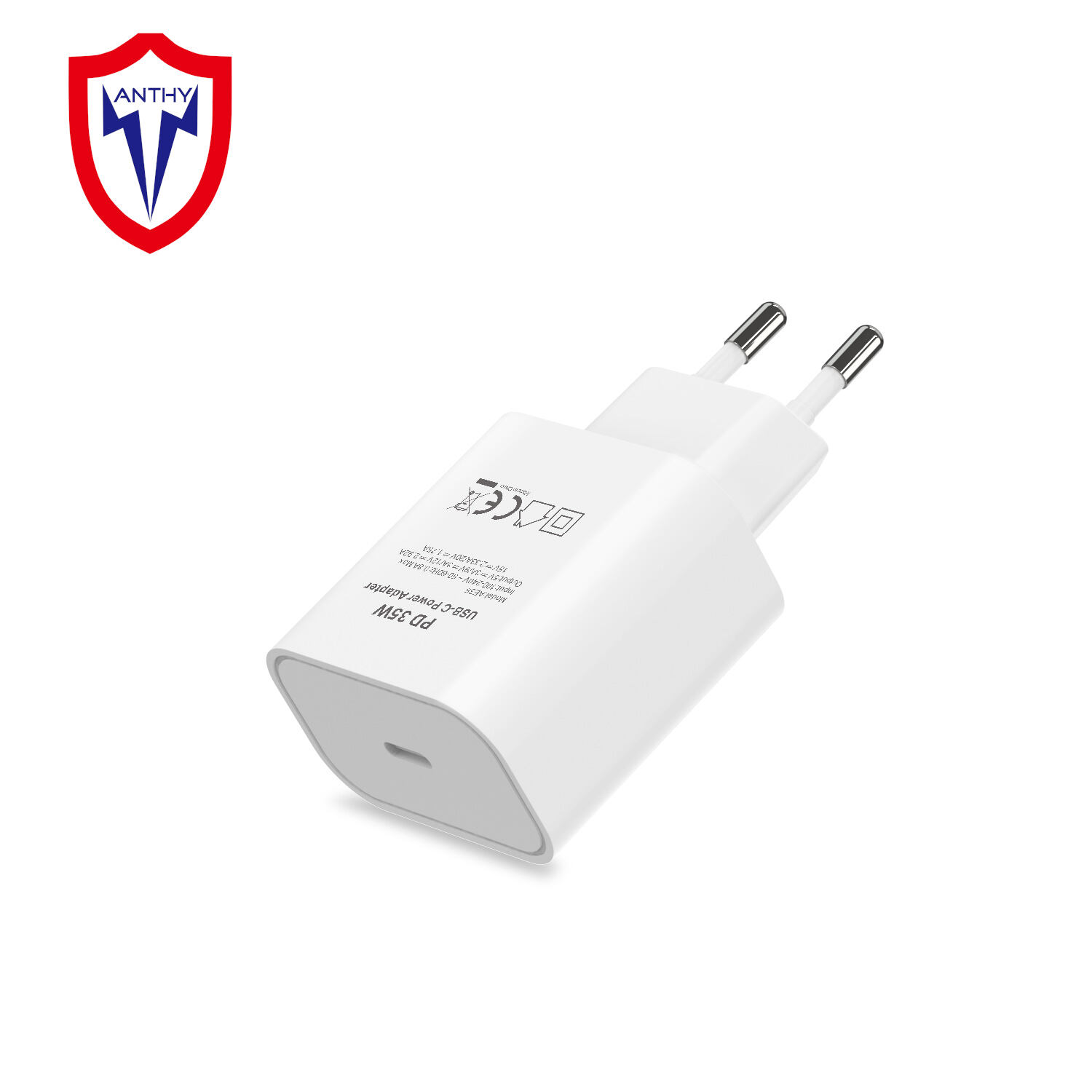

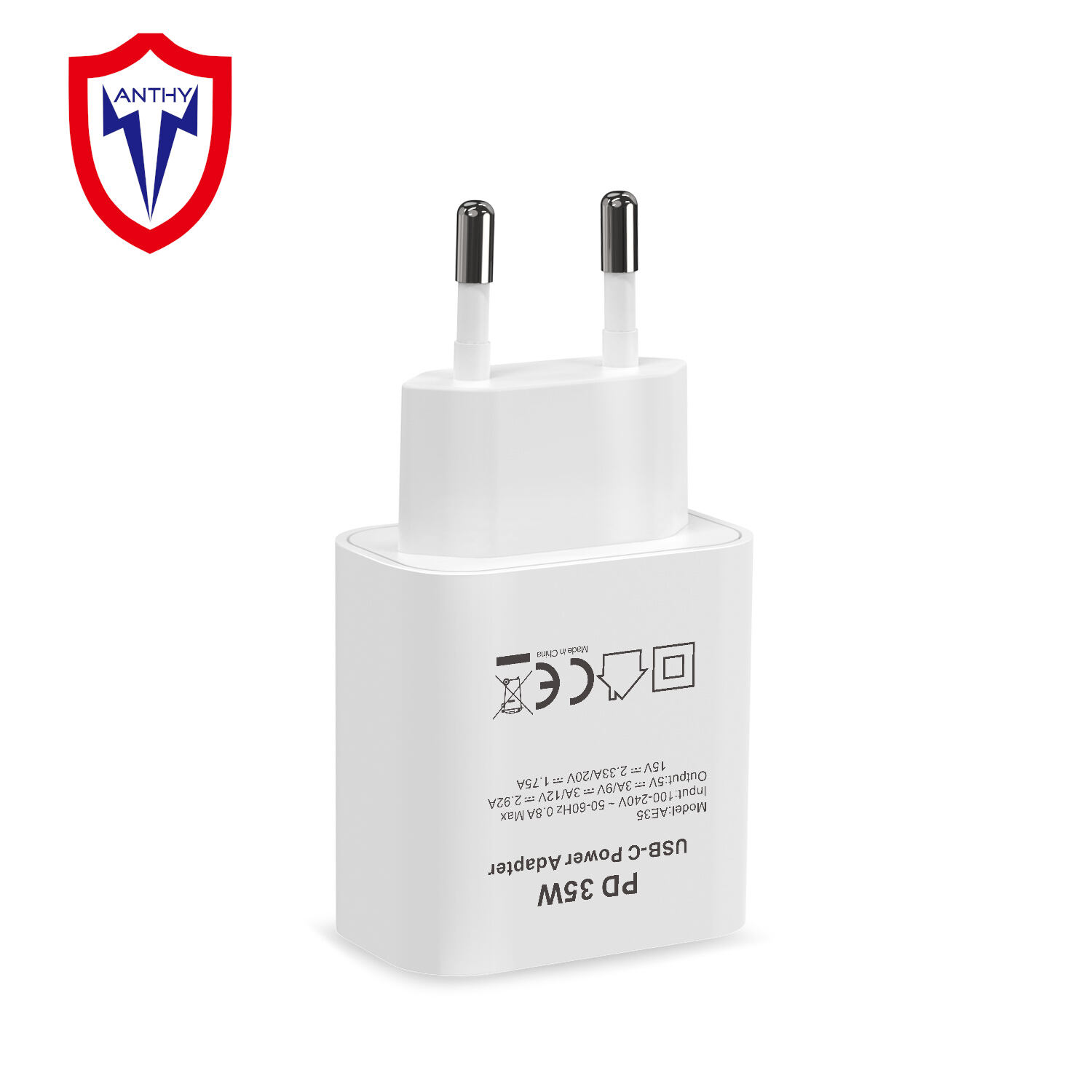

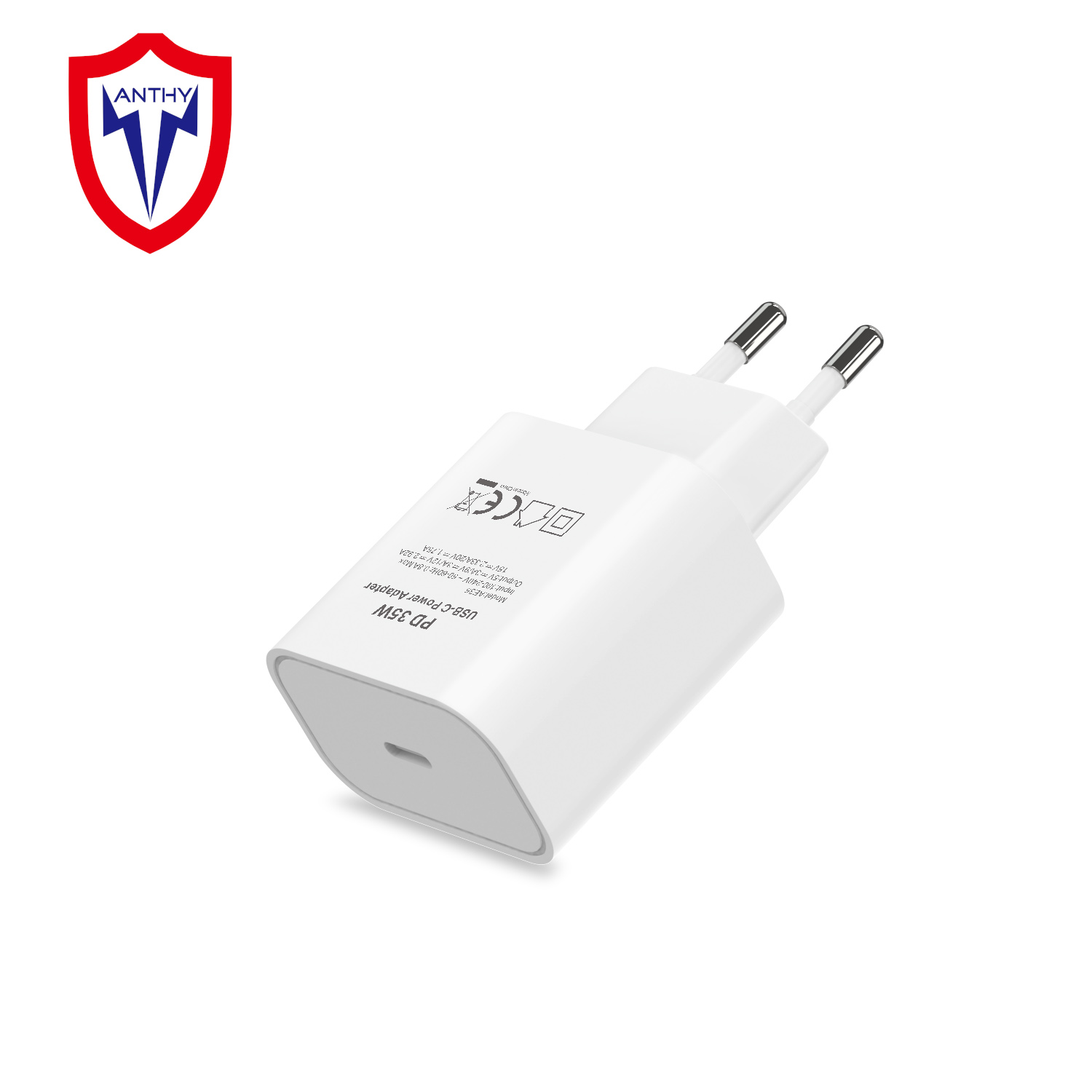

35W USB C Super Fast Wall Charger Block for iPad Pro 13/12.9/11 inch 2025/2024/2022/2021/2020, Air 6/5th, Mini 7/6, i Pad 11/10th Generation
Compatible with iPad Pro 13/12.9/11 inch 6th/5th/4th/3rd, iPad Air 13/11 inch M3 M2 Air 6th/5th, iPad Mini A17 Pro 2025 7th/6th, iPad 11th A16 2025 10th Generation, iPhone 16/16 Plus/16 Pro/16 Pro Max/15/15 Plus/15 Pro/15 Pro Max, Samsung, Pixel LG, Moto, Tablet, Laptop, Android Phone, and more USB-C devices
Basic parameters

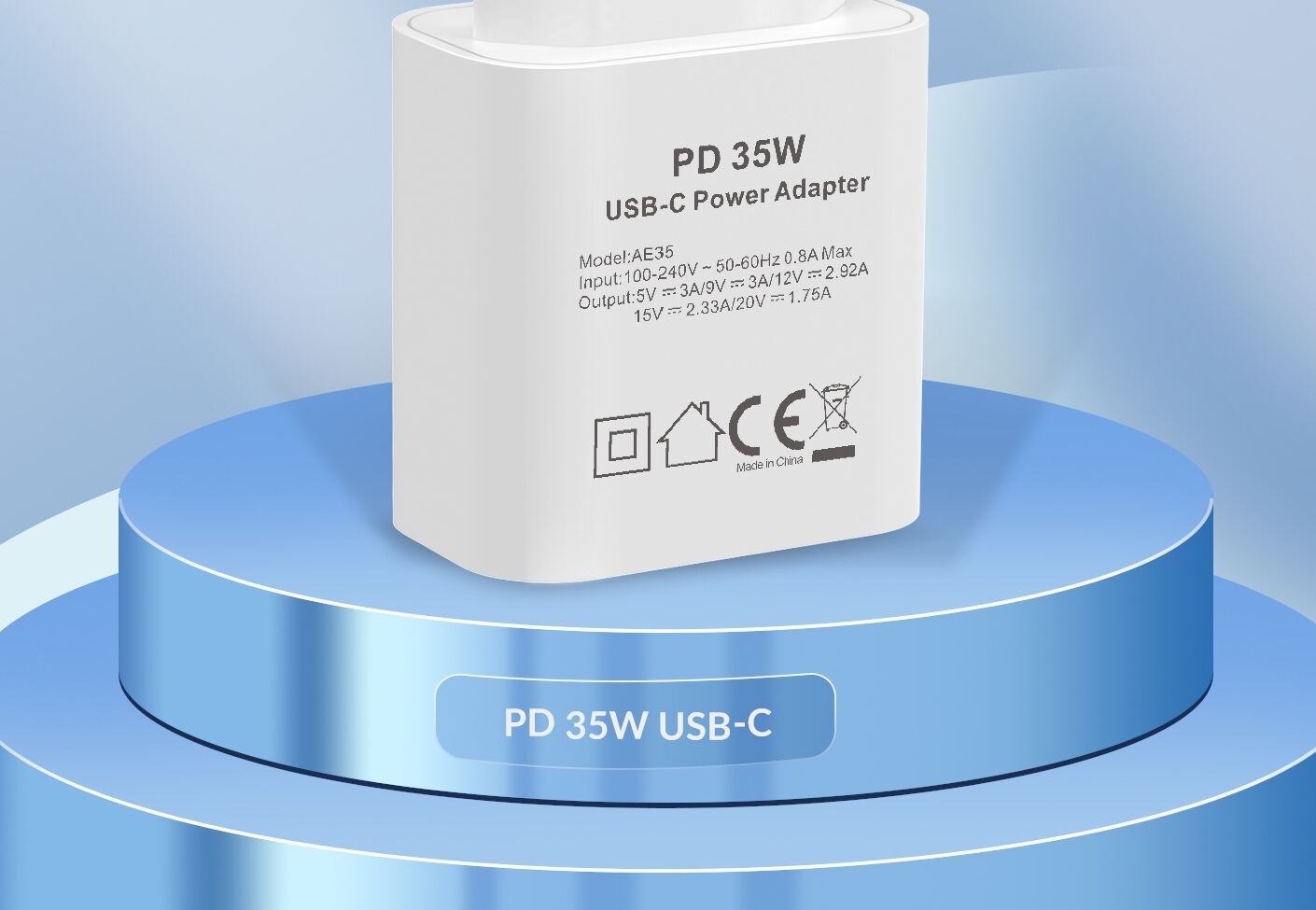

| Product Series | PD 35W USB-C Power Adapter |
| Input voltage/Input frequency | 100-240V 50-60Hz |
| Output voltage/Output current | 5V/3A,9V/3A,12V/2.92A，15V/2.33A,20V/1.75A |
| Static loss | ≤0.1W |
| Output ripple | ≤200mV |
| Output efficiency | ≥85.48% |
| Protection | Over voltage protection/Over current protection |
| Short circuit protection/Temperature protection |
Other Parameters
| socket standard | CN/EU/US/UK/KR/BR/AR/AU |
| Connector Type | AC Input 2 Plug |
| DC Output Type-C,Lightning | |
| Product Size | 44*44*27.6mm |
| Product Color | White/Black |
NPUT VOLTAGE & FREQUENCY
| Input Voltage | Minimum | Nominal | Maximum |
| Input Voltage | 100Vac | 200/230Vac | 240Vac |
| Input Frequency | 47Hz | 50/60Hz | 63Hz |
INPUT CURRENT:The maximum input current is 0.8A at 100Vac at full load
STATIC LOSS:The static loss is less than 0.1W at normal input voltage
Inrush current:45A peak @115VAC，35A peak @230VAC，Full load @25°C ambient cold start

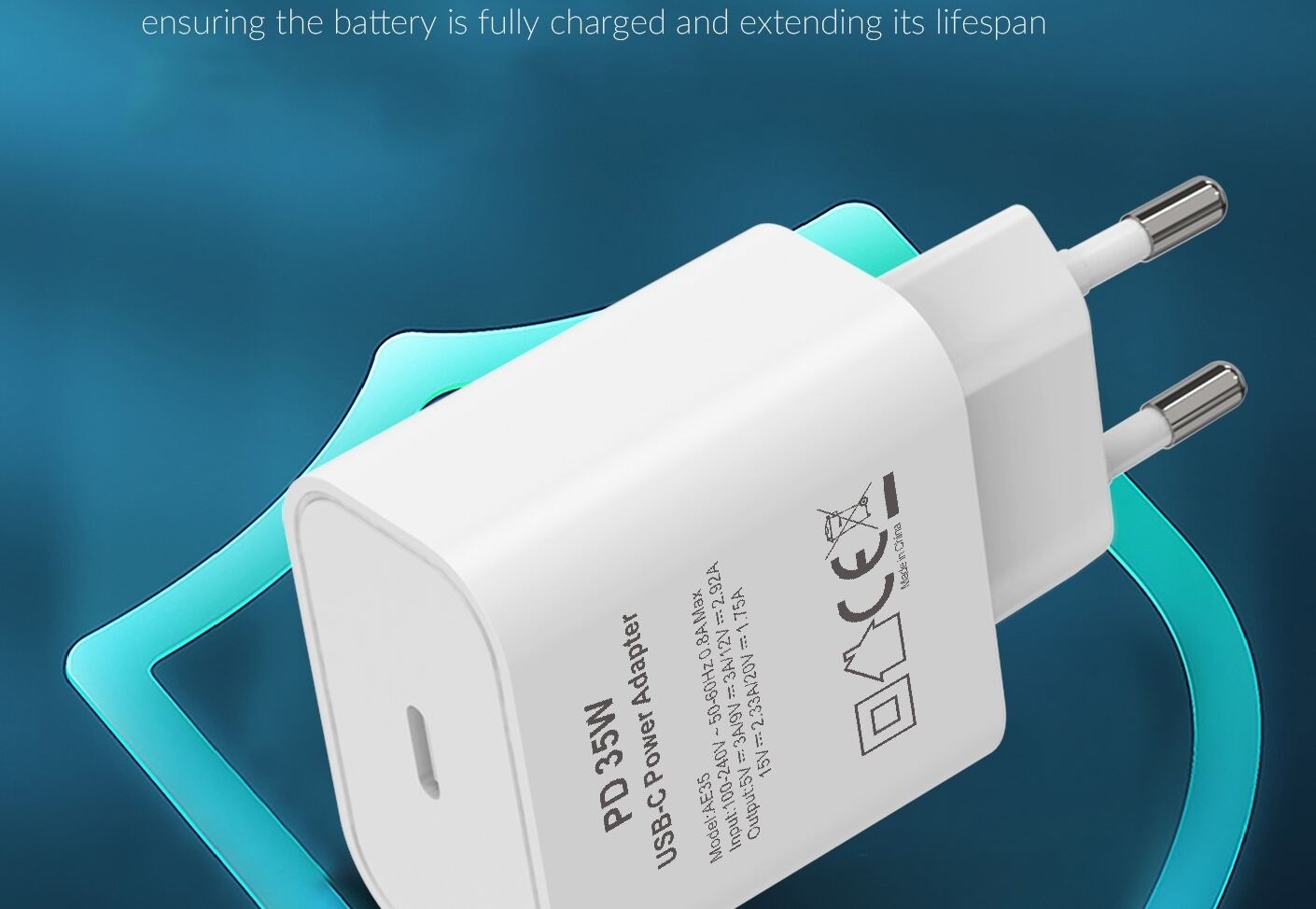

Trickle protection Not afraid to charge it all night
When PD fast charging is in operation, once the battery reaches 80%the intelligent trickle mode is activated to lower the charging
temperature,ensuring the battery is fully charged and extending its lifespan
Trickle protection Not afraid to charge it all night
When PD fast charging is in operation, once the battery reaches 80%,the intelligent trickle mode is activated to lower the charging
temperature,ensuring the battery is fully charged and extending its lifespan
High performance / stability / lasting

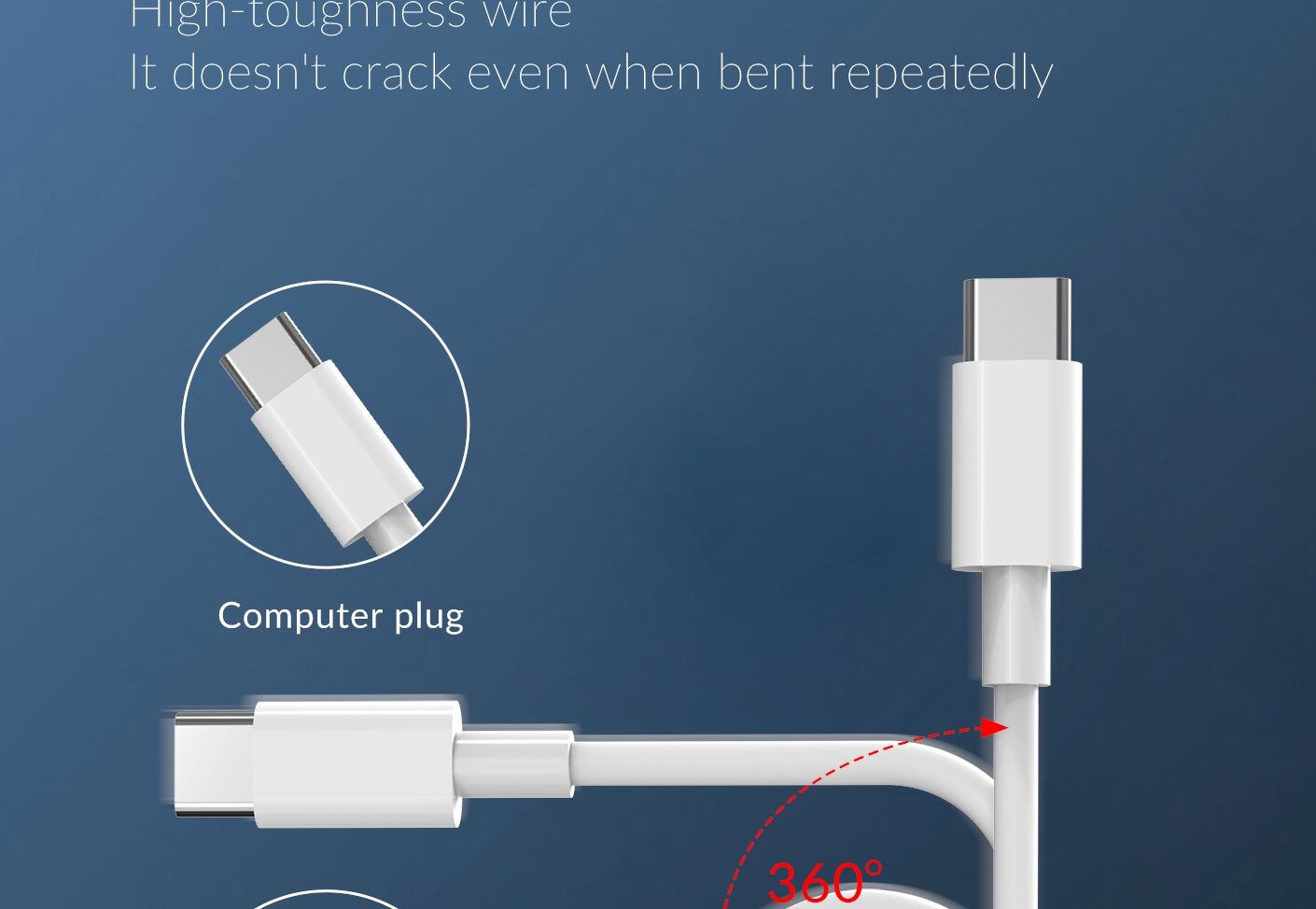

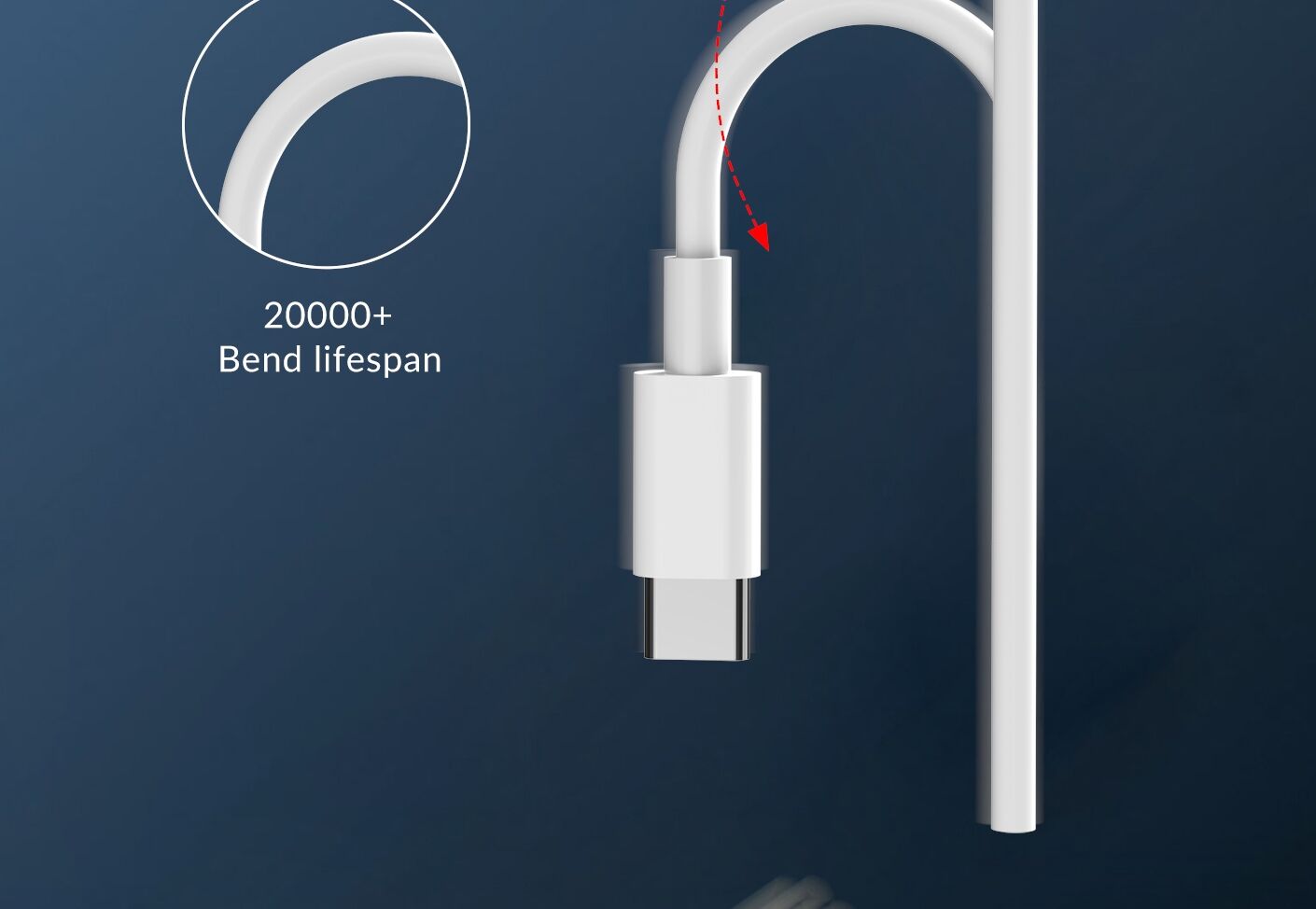

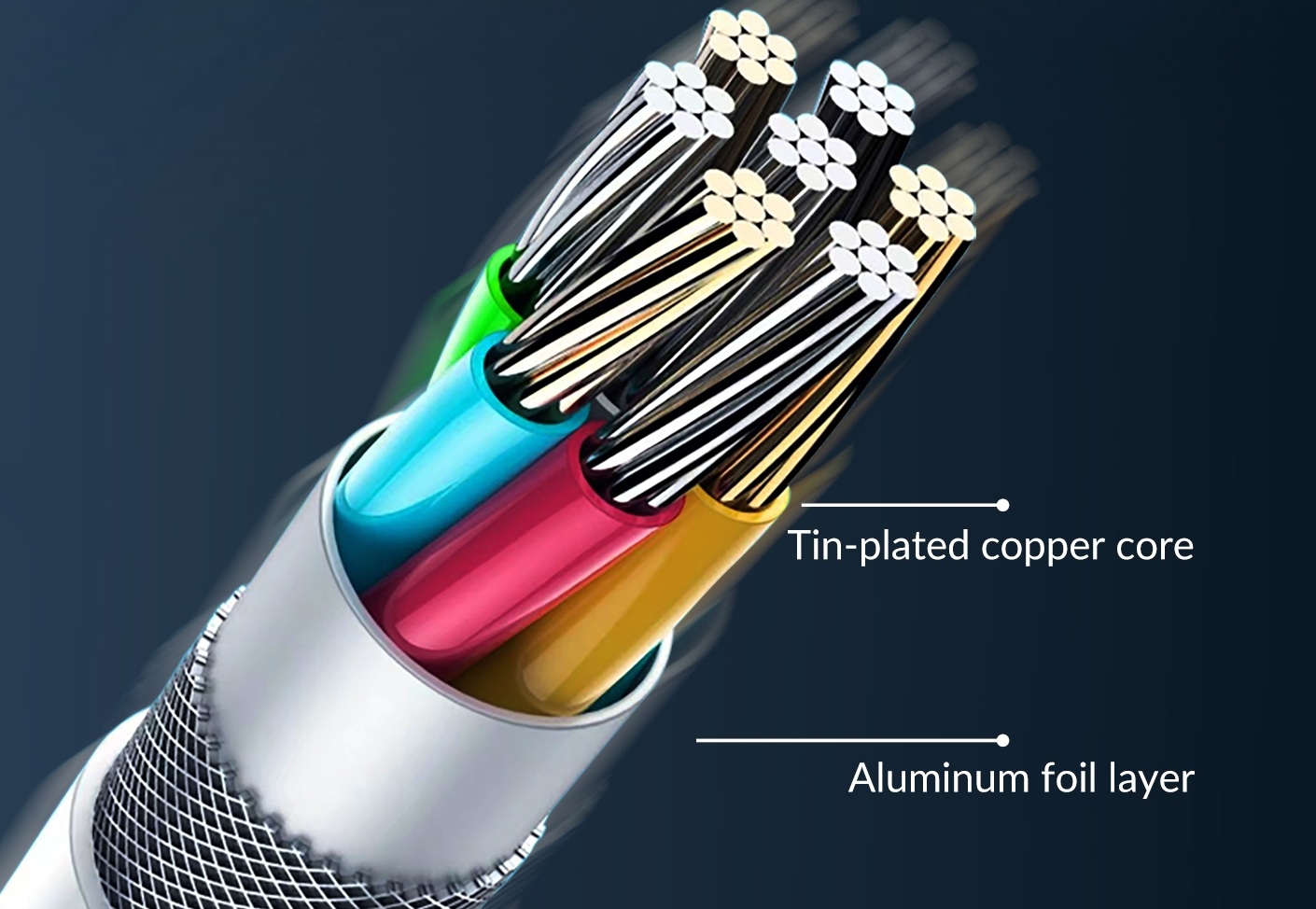

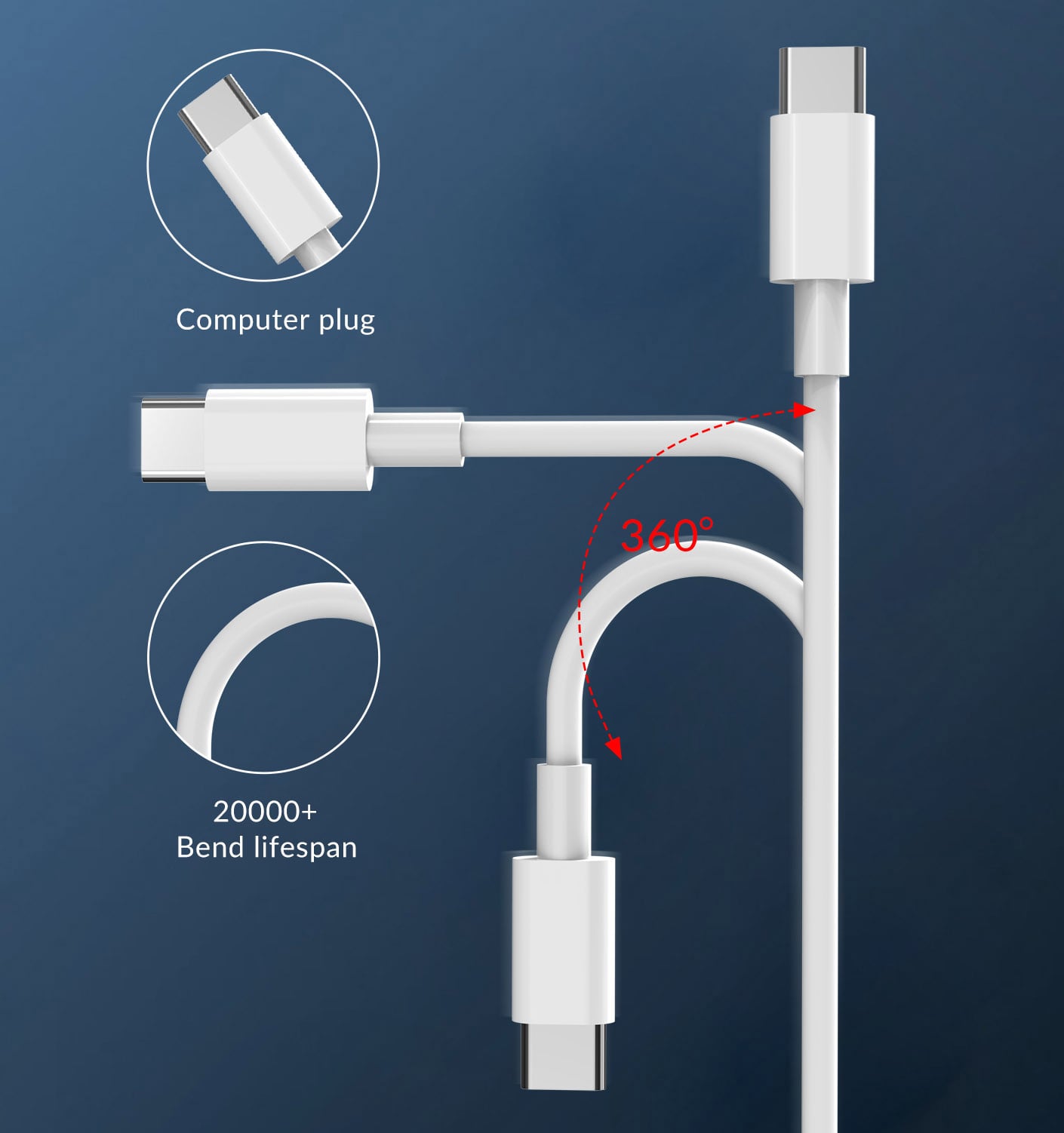

High-toughness wire.It doesn't crack even when bent repeatedly
RIPPLE AND NOISE
The ripple and noise is less than 200mV measured by 20MHz bandwidth oscilloscope and
terminated each output with a 0.1uF ceramic capacitor and a 10uF aluminum electrolytic capacitor.
TURN ON DELAY
During turn on,output voltage shall not exceed its nominal voltage by more than 10% and all output
shall reach their steady state values within 2 seconds of trun on
HOLD UP TIME
When the power supply turns off,the output voltage shall hold up more than 10 msec.
OPERATING CONDITION
| Ambient Temperature | 0°C~35C | Relative Humidity | 20%~90% |
STORAGE CONDITION
| Ambient Temperature | -20°C~70°C | Relative Humidity | 20%~90% |
