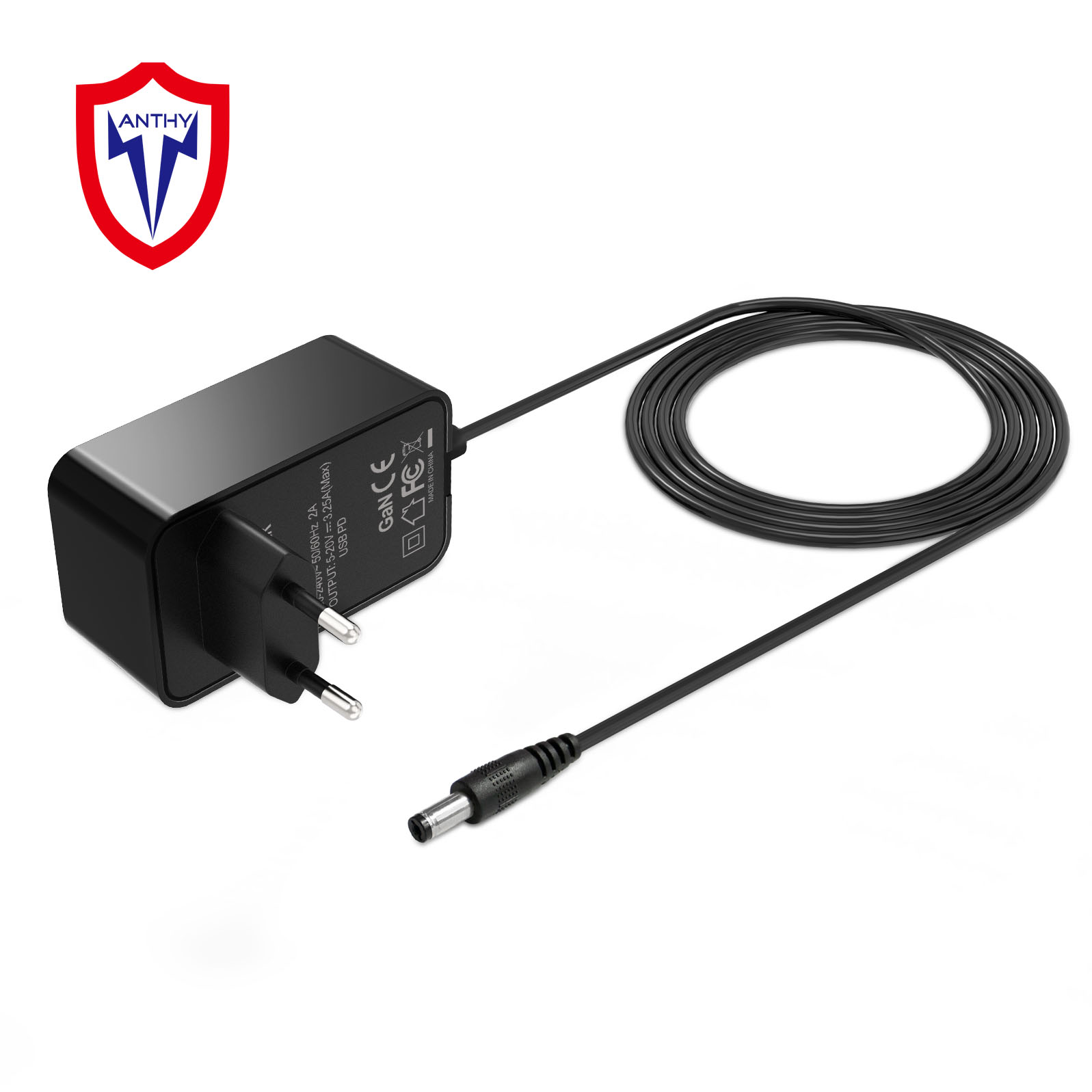

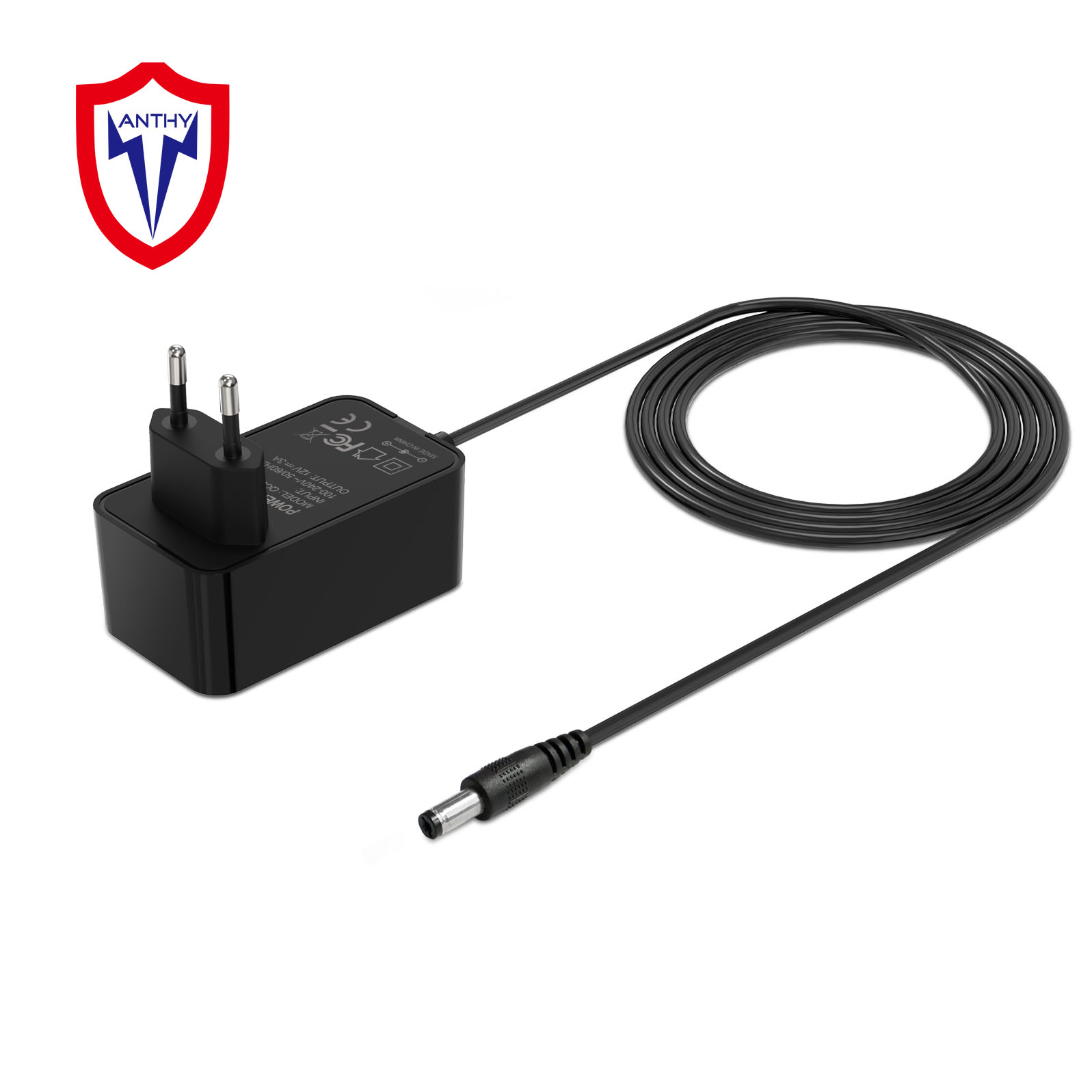

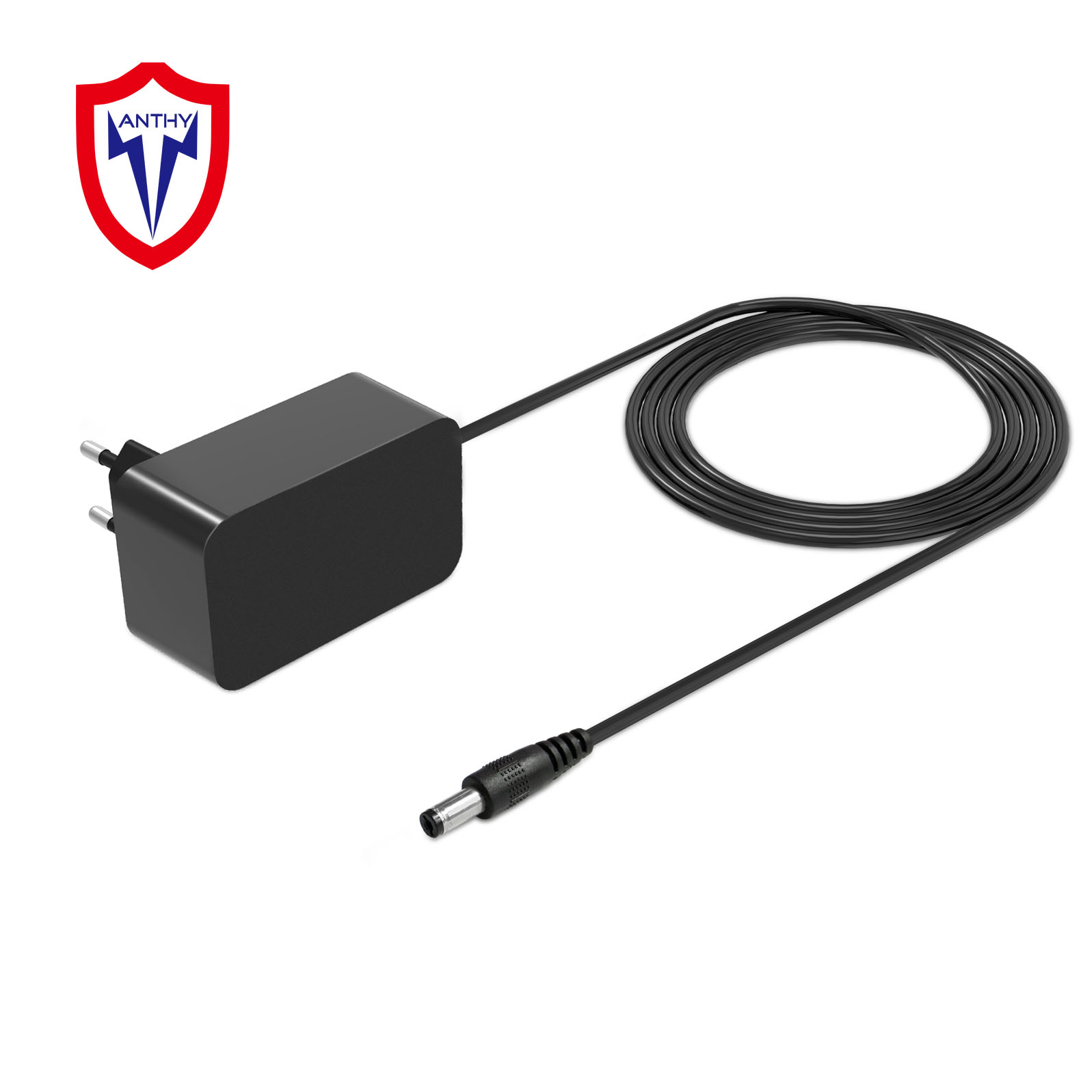

Universal AC Adapter 12V2.5A/12V3A Power Supply Charger 24W/36W AC100V to DC12V 2000mA 1500mA 1000mA 500mA Power Driver 11 DC Plug Tips 12 Volt Converter Inverter Transformer ac dc Adapter(DC12V~2.5A/3A)
Industrial-Grade Safety & Reliability Quality is our bedrock. Every unit undergoes a 100% Full-Load One Week Aging Test before shipping. Our multi-protection system safeguards against:
OVP (Over Voltage Protection)
OCP (Over Current Protection)
SCP (Short Circuit Protection)
OTP (Over Temperature Protection)
Basic parameters
| Product Series | Wall Plug-in Power Adapter |
| Input voltage/Input frequency | 100-240V 50-60Hz |
| Output voltage/Output current | 12V/2.5A,12V/3A,24V/1.5A,12V/5A |
| Output Power | 30W/36W/60W |
| Static loss | ≤0.1W |
| Output ripple | ≤200mV |
| Output efficiency | ≥87.5% |
| Protection | Over voltage protection/Over current protection |
| Short circuit protection/Temperature protection |
Other Parameters
| AC Plug | Not Removable |
| AC cable Optiona | EU/US/CN/AR/AU/BR Plug |
| DC line length/DC tips | Customizable |
| Product Size | 76.5*44.5x31mm |
| Product Color | Black/White |
| material | PC Fireproof Material, ABS |
| private mold | No |
| brand name | OEM/ODM |
| Certificate | CE,CB,CCC,GS |
| Condition | 100% |
INPUT VOLTAGE & FREQUENCY
| Input Voltage | Minimum | Nominal | Maximum |
| Input Voltage | 100Vac | 200/230Vac | 240Vac |
| Input Frequency | 47Hz | 50/60Hz | 63Hz |
INPUT CURRENT：The maximum input current is1.5A at 100Vac at full load
STATIC LOSS：The static loss is less than 0.1W at normal input voltage
Inrush current：45A peak @115VAC, 70A peak @230VAC, Full load @25°C ambient cold start
RIPPLE AND NOISE：
The ripple and noise is less than 200mV measured by 20MHz bandwidth oscilloscope and terminated
each output with a 0.1uF ceramic capacitor and a 10uF aluminum electrolytic capacitor.
TURN ON DELAY：
During turn on,output voltage shall not exceed its nominal voltage by more than 10% and all output shall reach
their steady state values within 2 seconds of trun on.
The power supply shall go into latch-off mode when the IC's temperature is over its trigger point(145℃) ,
and when IC temperature is lower than regulation value , the power supply shall be self-recovering.
OPERATING CONDITION
| Ambient Temperature | 0°C~35C | Relative Humidity | 20%~90% |
STORAGE CONDITION
| Ambient Temperature | -20°C~70°C | Relative Humidity | 20%~90% |
| COOLING METHOD | Free convection |
Global Compliance & Tier-1 Certification Gain immediate market access with our fully
certified solutions. Anthy adapters are compliant with CE, LVD,EMC,TUV-GS, RoHS,
and REACH. As a TUV-Audited factory, we provide complete traceable test reports to support
your local compliance requirements
