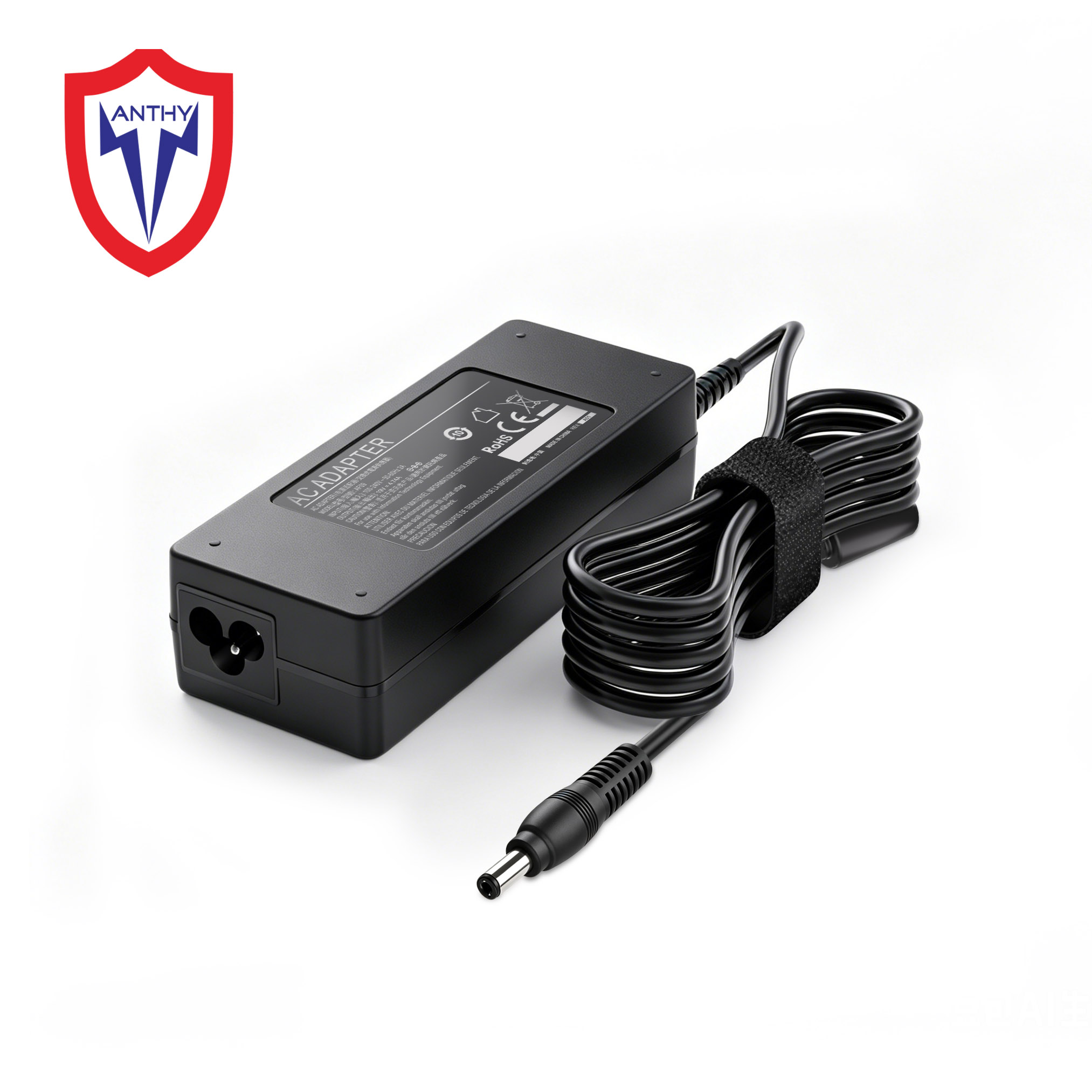

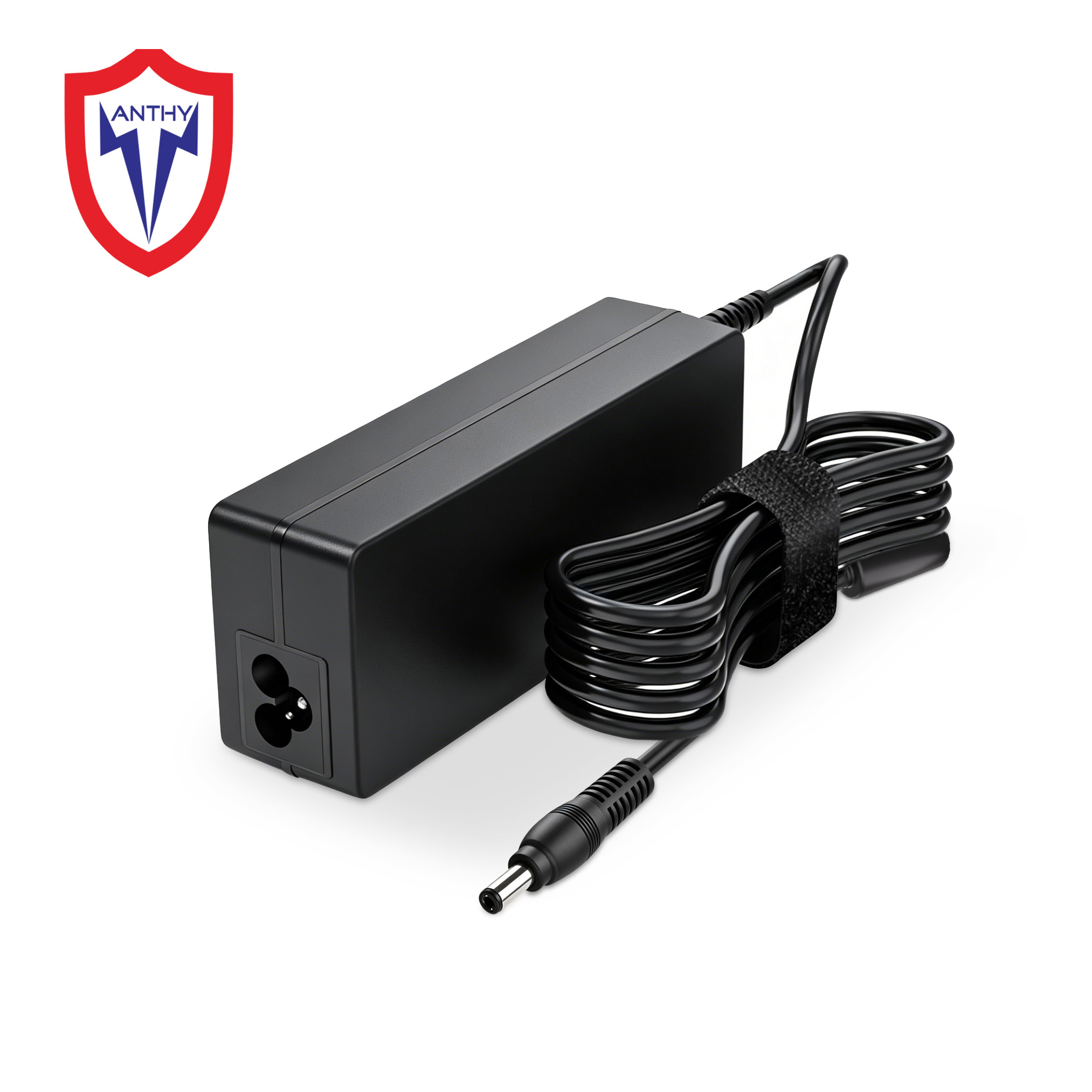

ASUS laptop charger Compatible with Toshiba Satellite ASUS, ASUS 19V 4.74A TOSHIBA 19V 4.74A LENOVO 19V 4.74A MEDION 19V 4.74A, 1005px A40 A42F A43 A45 A450C A52 A52F A53 A53E A53S A53SD A53T a53u A54 A54C A55 A55A A55V A55VD

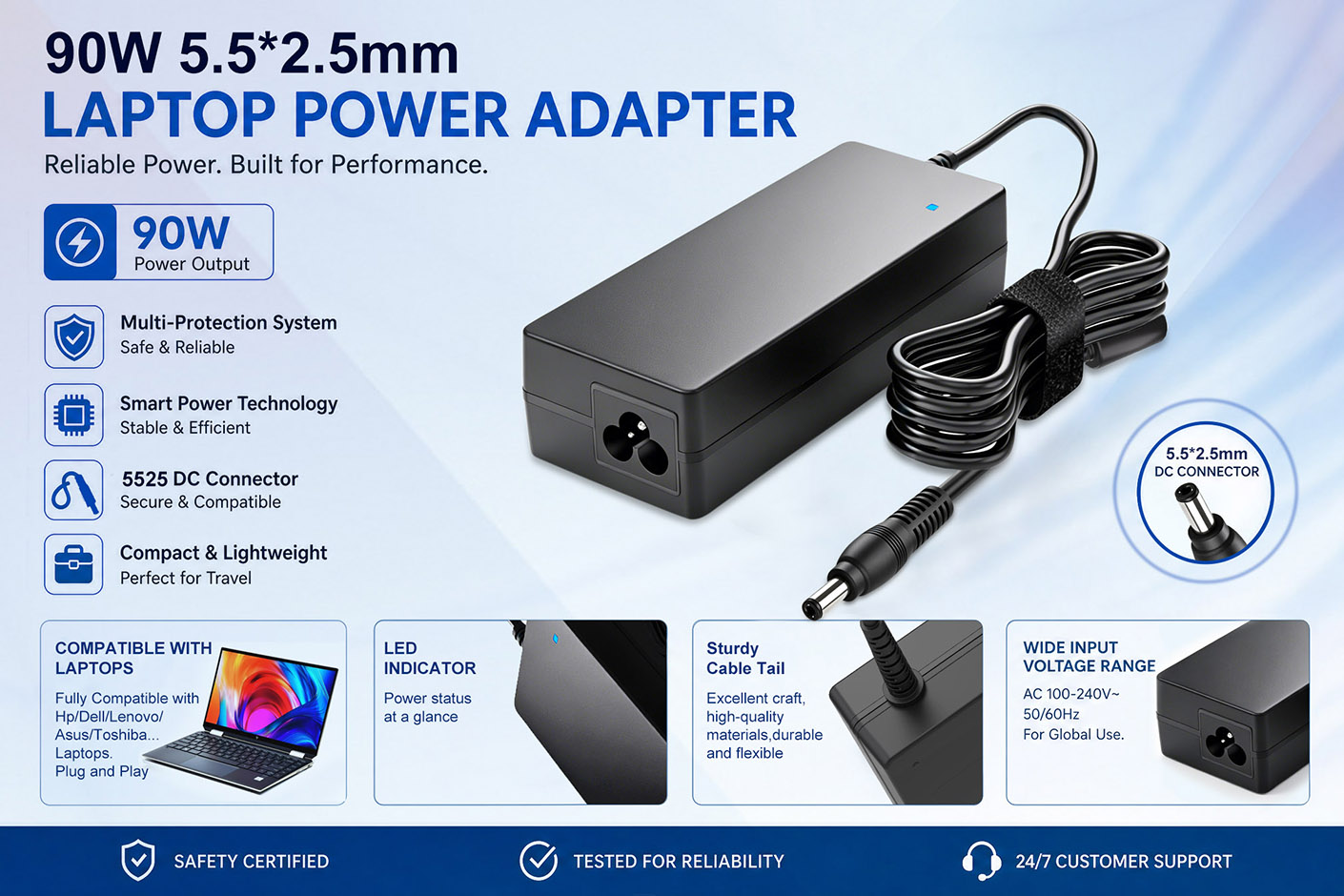

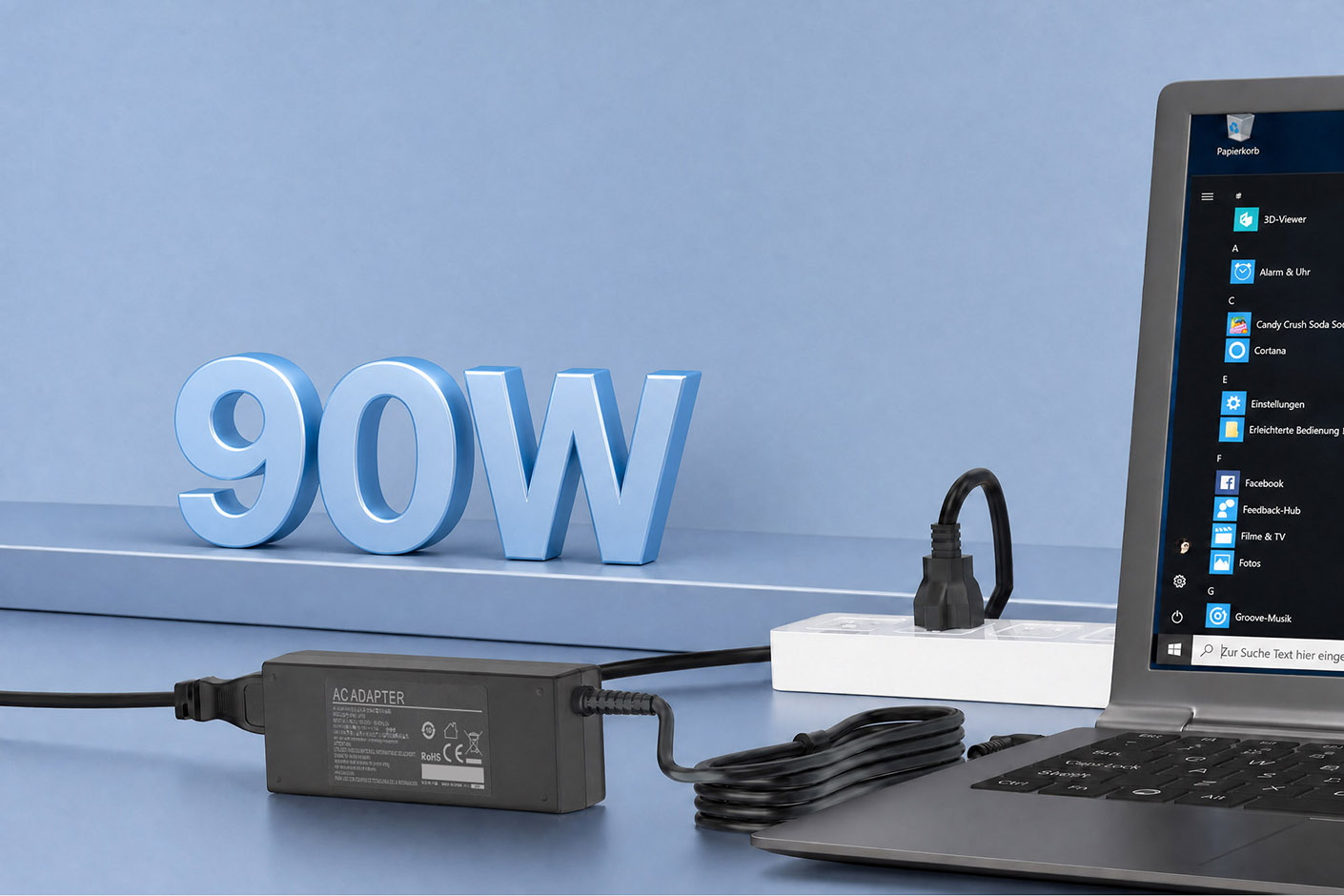

90W Power Output: Provides sufficient power to charge and run your Dell laptop efficiently.
Multiple Protection Features: Includes overvoltage, overcurrent, and short circuit protection, enhancing the safety and reliability of the adapter.
Basic parameters
| Product Series | 90W Laptop AC Adapter For ACER/LENOVO/HP/TOSHIBA |
| Input voltage/Input frequency | 100-240V 50-60Hz |

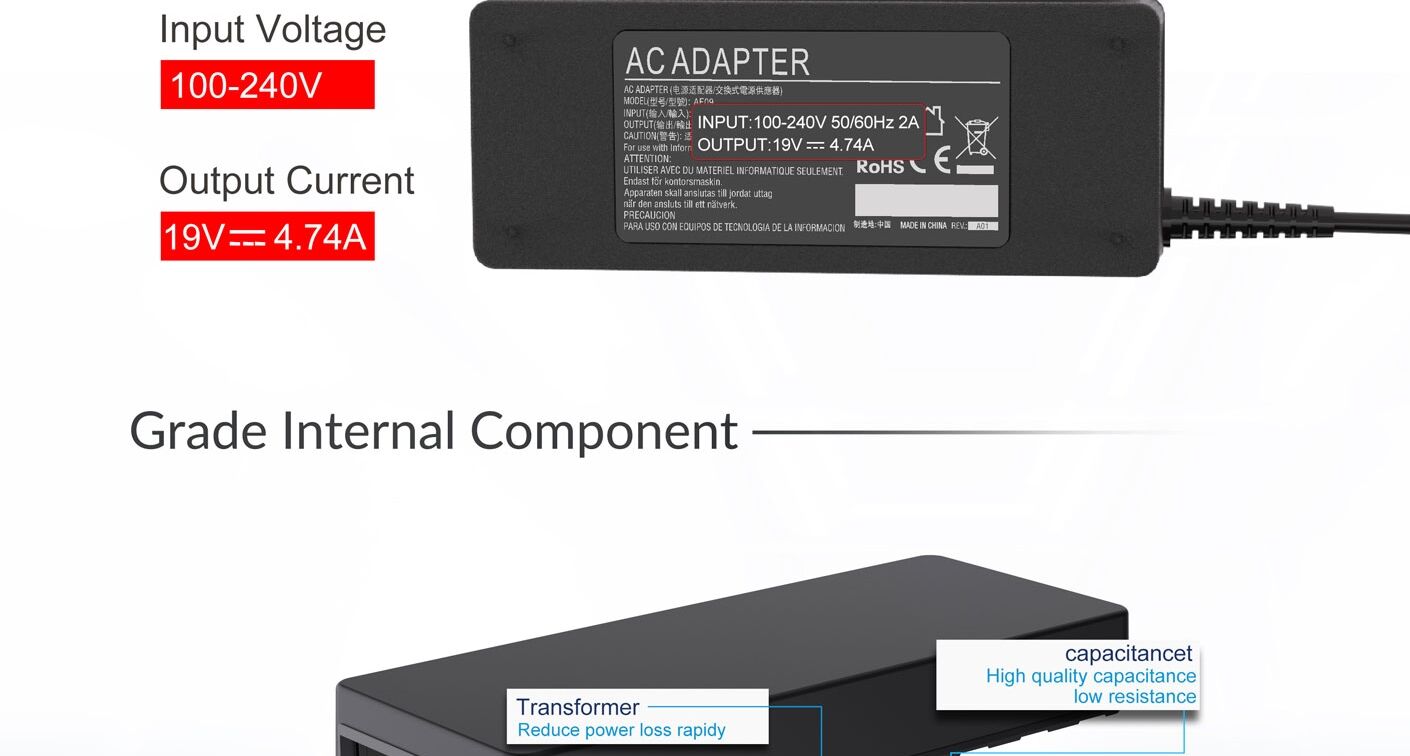

| Output voltage/Output current | 19V 4.74A |
| Static loss | ≤0.1W |
| Output ripple | ≤200mV |
| Output efficiency | ≥88% |
| Protection | Over voltage protection/Over current protection |
| Short circuit protection/Temperature protection |
Other Parameters

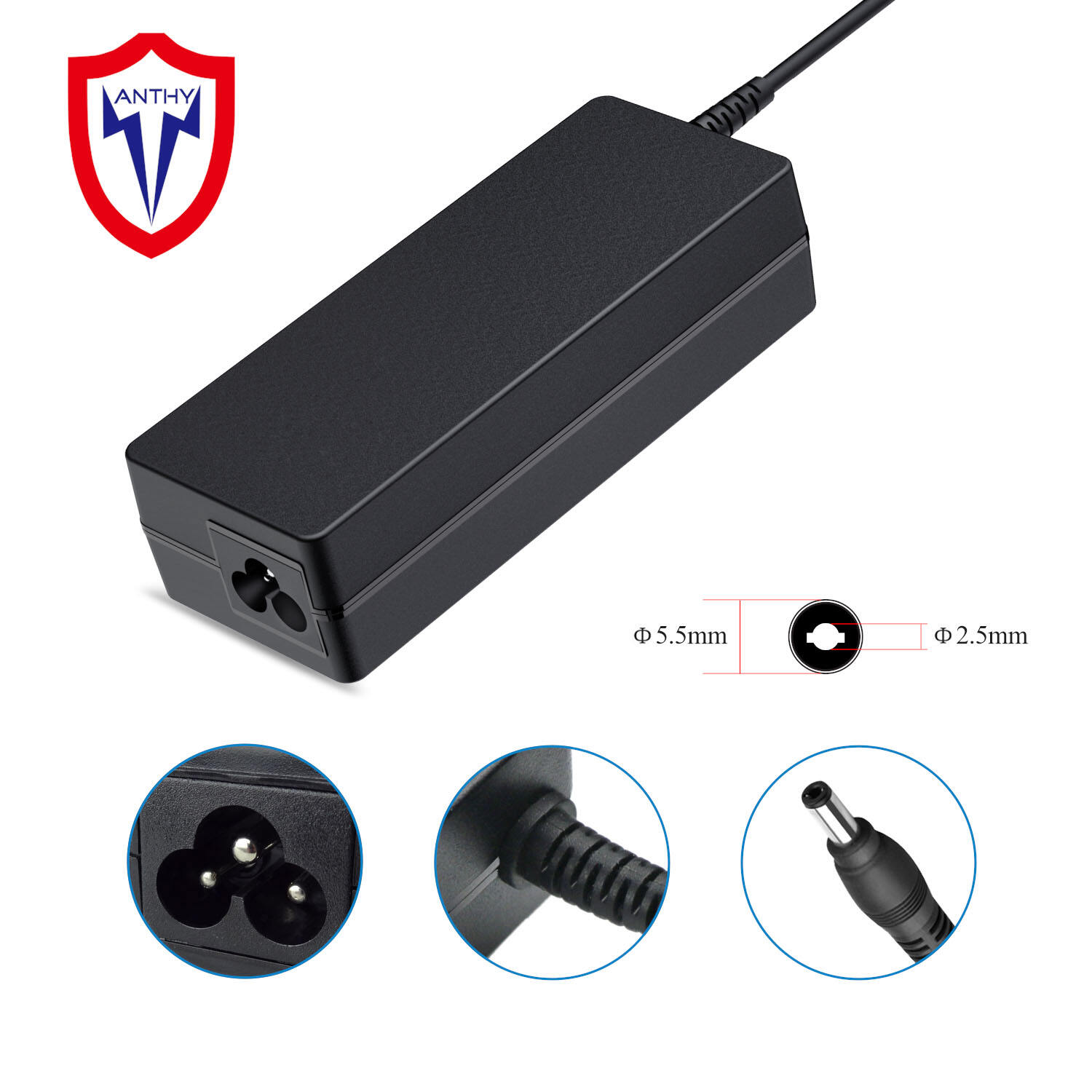

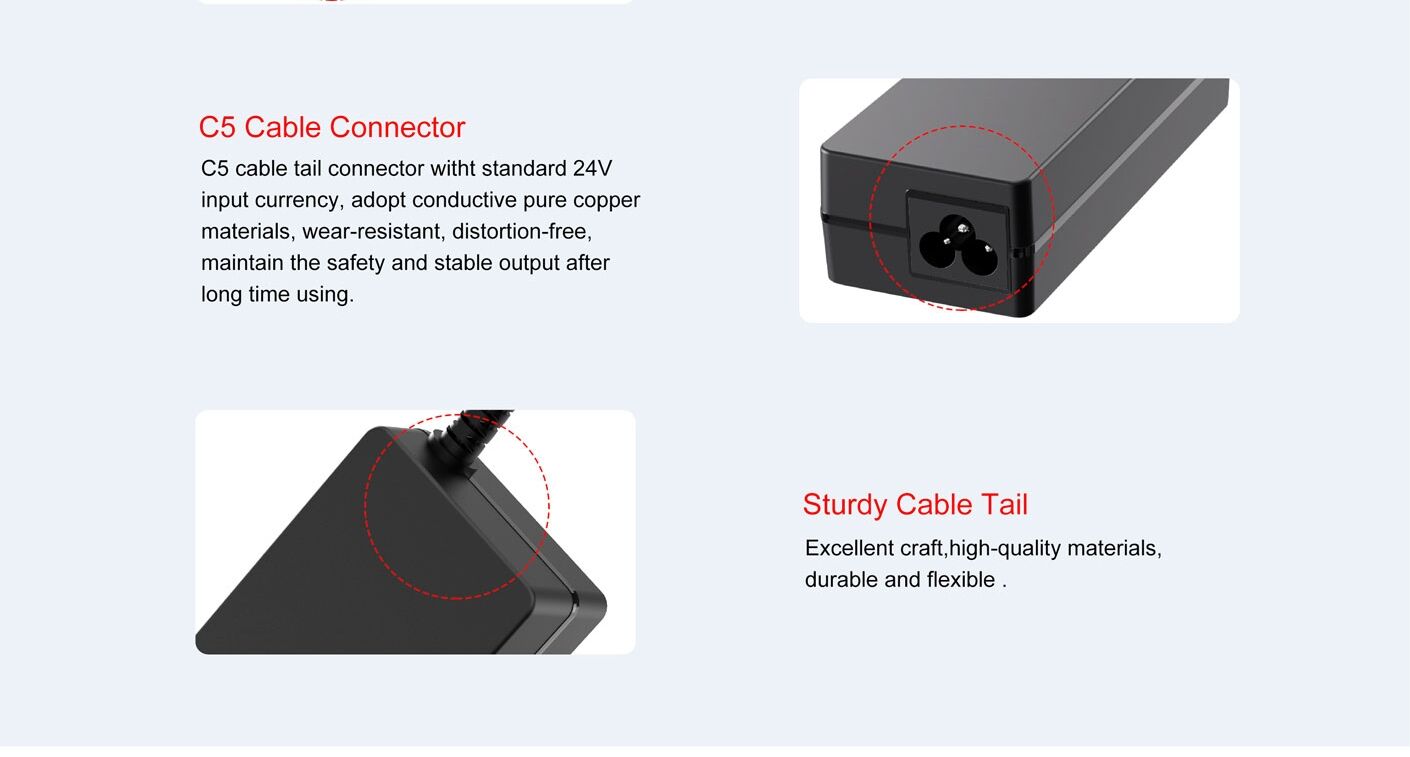

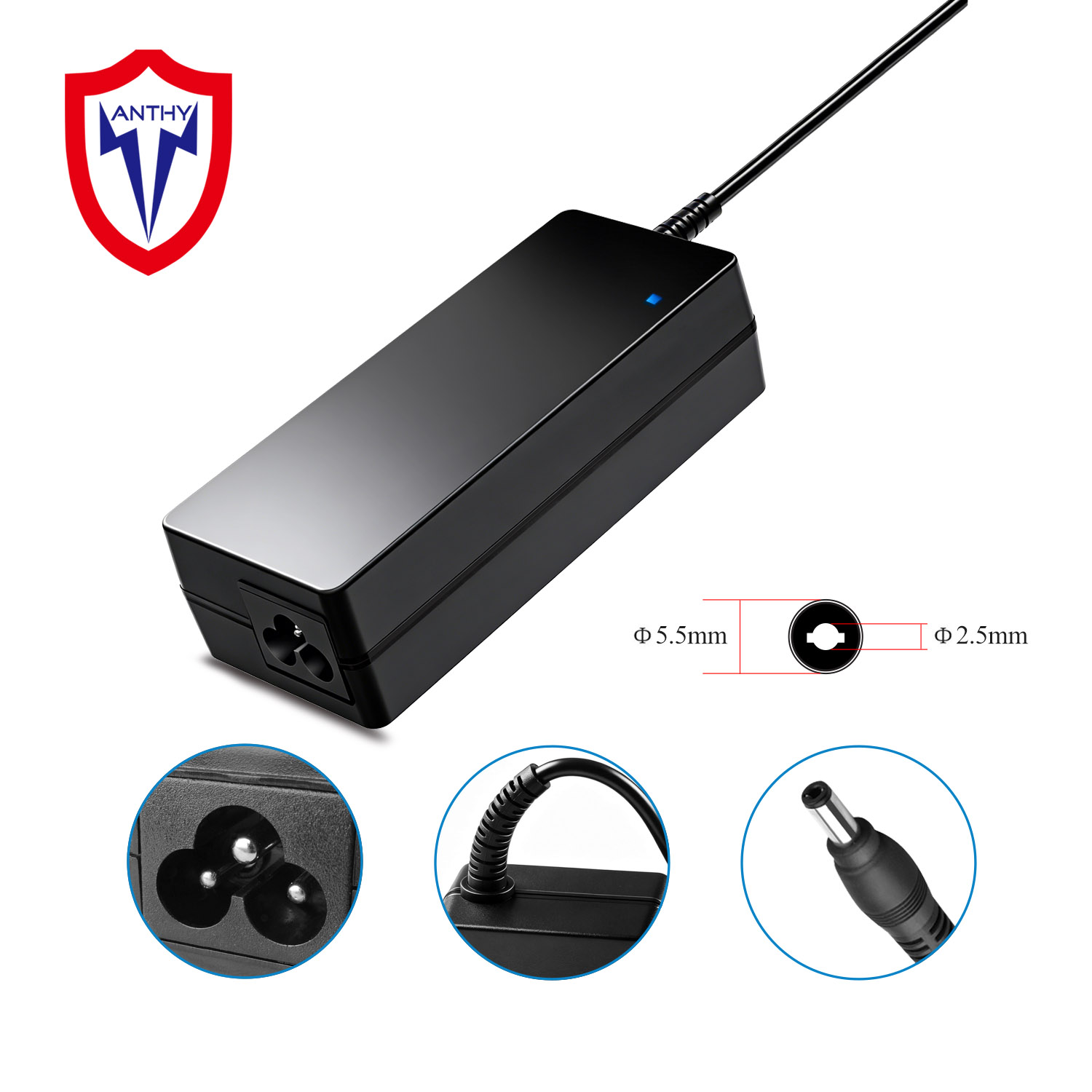

| AC Port | C5/C7 Cable Connector |
| AC cable Optiona | EU/UK/US/AU/IT/CN/SA/IL/BR |
| DC line length/DC tips | Customizable |
| Product Size | 128.0*51.2*32.9mm |
| Product Color | Black/White |
INPUT VOLTAGE & FREQUENCY
| Input Voltage | Minimum | Nominal | Maximum |
| Input Voltage | 100Vac | 200/230Vac | 240Vac |
| Input Frequency | 47Hz | 50/60Hz | 63Hz |
INPUT CURRENT：The maximum input current is2A at 100Vac at full load
STATIC LOSS：The static loss is less than 0.21W at normal input voltage
Inrush current：50A peak @115VAC，35A peak @230VAC，Full load @25°C ambient cold start
RIPPLE AND NOISE：
The ripple and noise is less than 200mV measured by 20MHz bandwidth oscilloscope and terminated
each output with a 0.1uF ceramic capacitor and a 10uF aluminum electrolytic capacitor.
TURN ON DELAY：
During turn on,output voltage shall not exceed its nominal voltage by more than 10% and all
output shall reach their steady state values within 2 seconds of trun on.
The power supply shall go into latch-off mode when the IC's temperature is over its trigger point(145℃) ,
and when IC temperature is lower than regulation value , the power supply shall be self-recovering.
OPERATING CONDITION
| Ambient Temperature | 0°C~35C | Relative Humidity | 20%~90% |
STORAGE CONDITION
| Ambient Temperature | -20°C~70°C | Relative Humidity | 20%~90% |
Global Compliance & Tier-1 Certification Gain immediate market access with our fully
certified solutions. Anthy adapters are compliant with CE, LVD,EMC,TUV-GS, RoHS,
and REACH. As a TUV-Audited factory, we provide complete traceable test reports to support
your local compliance requirements
