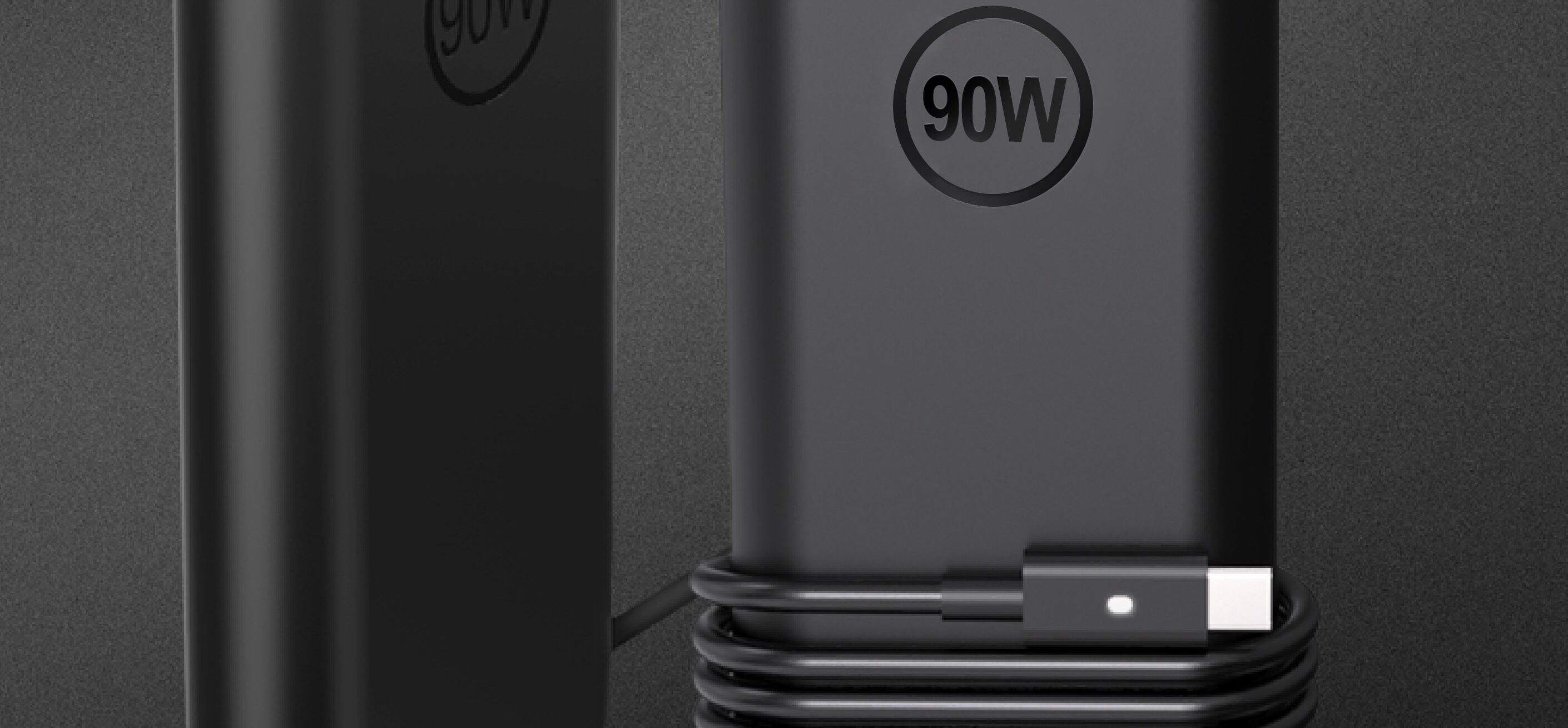

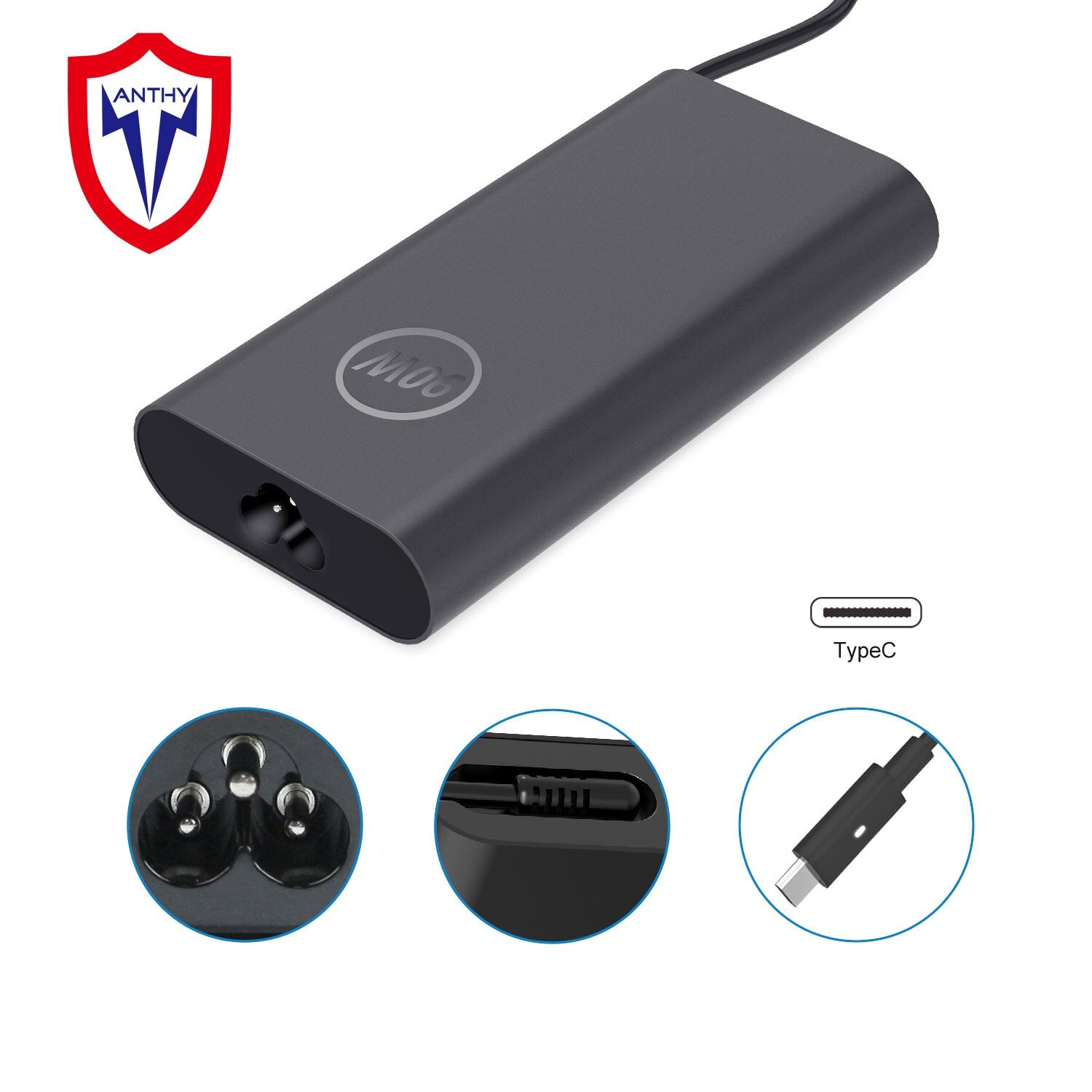

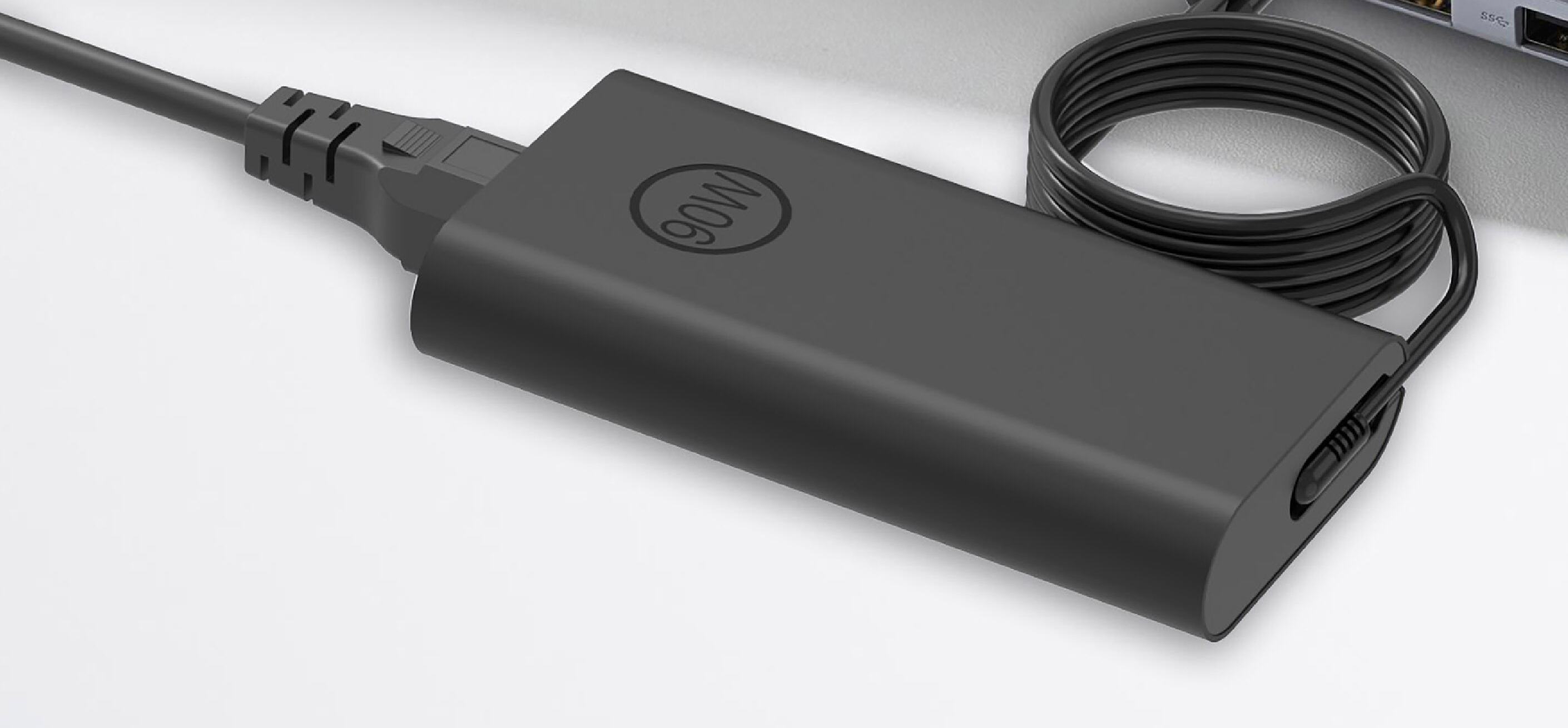

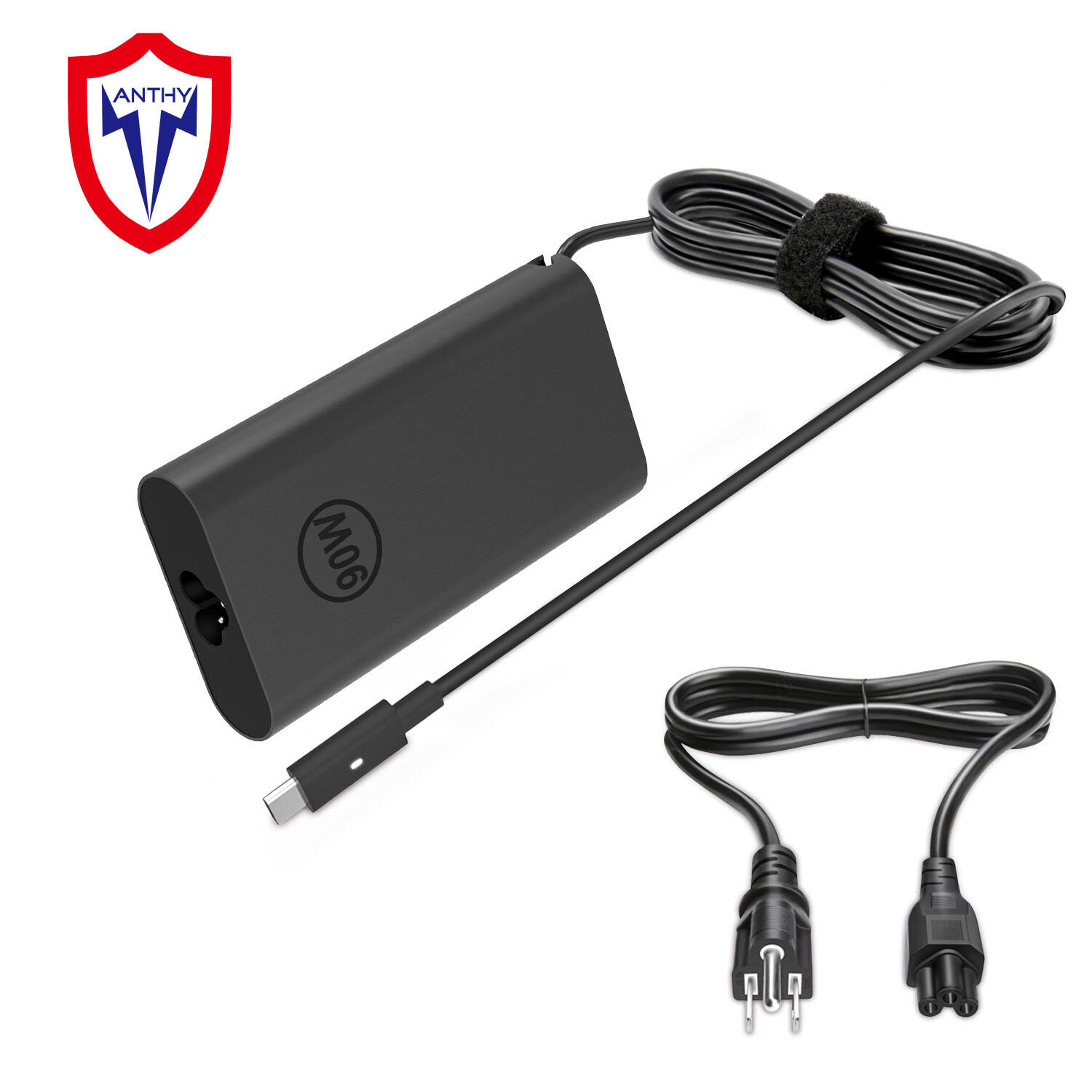

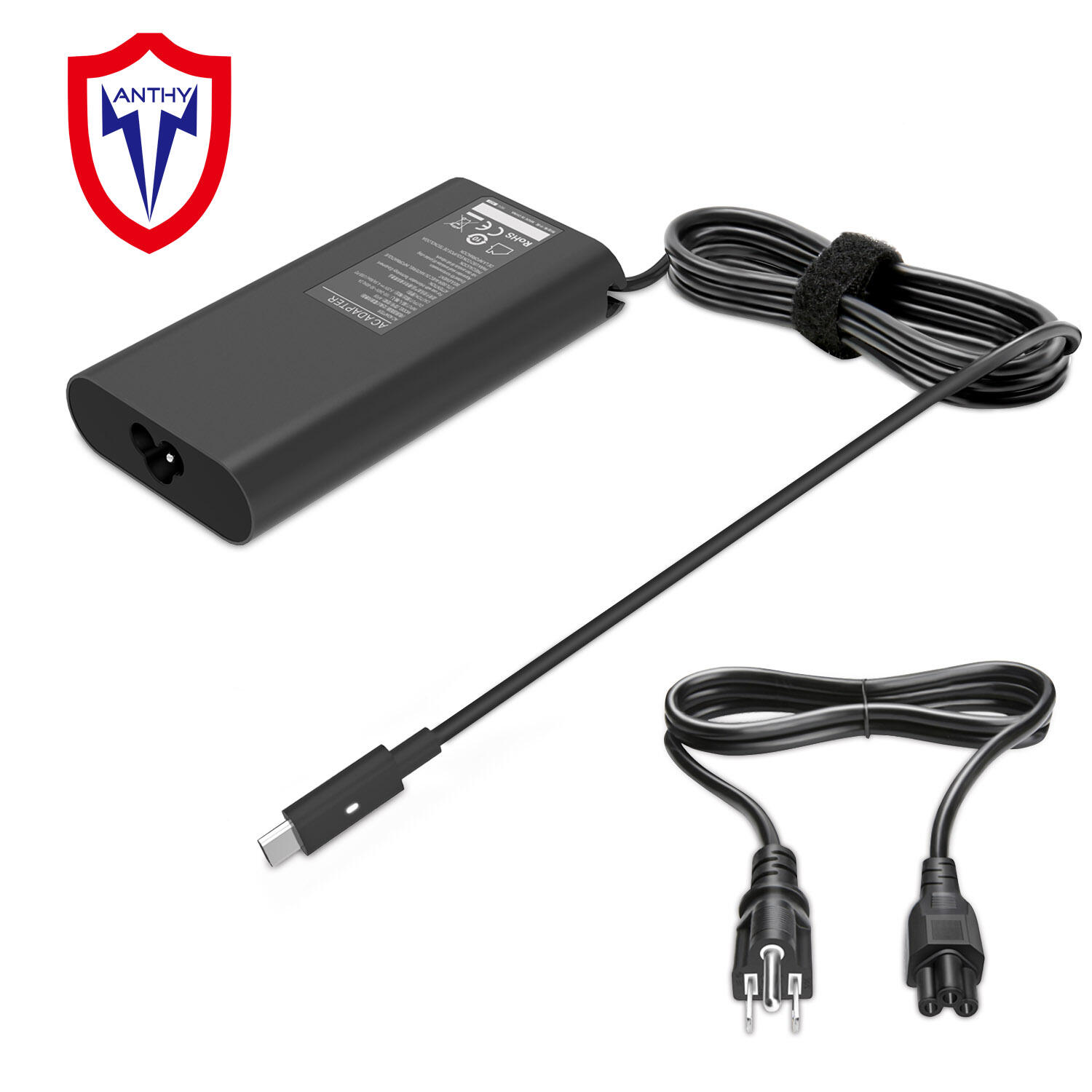

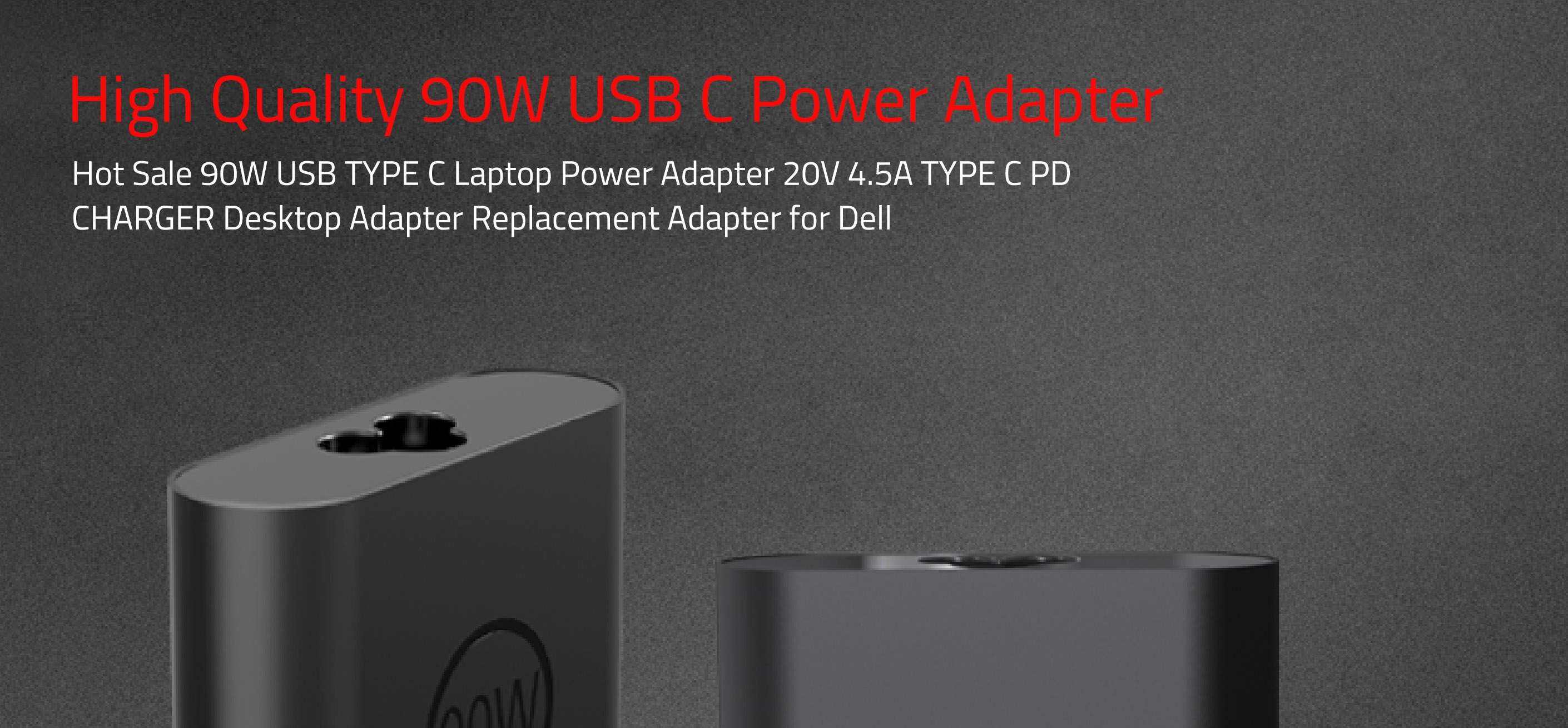

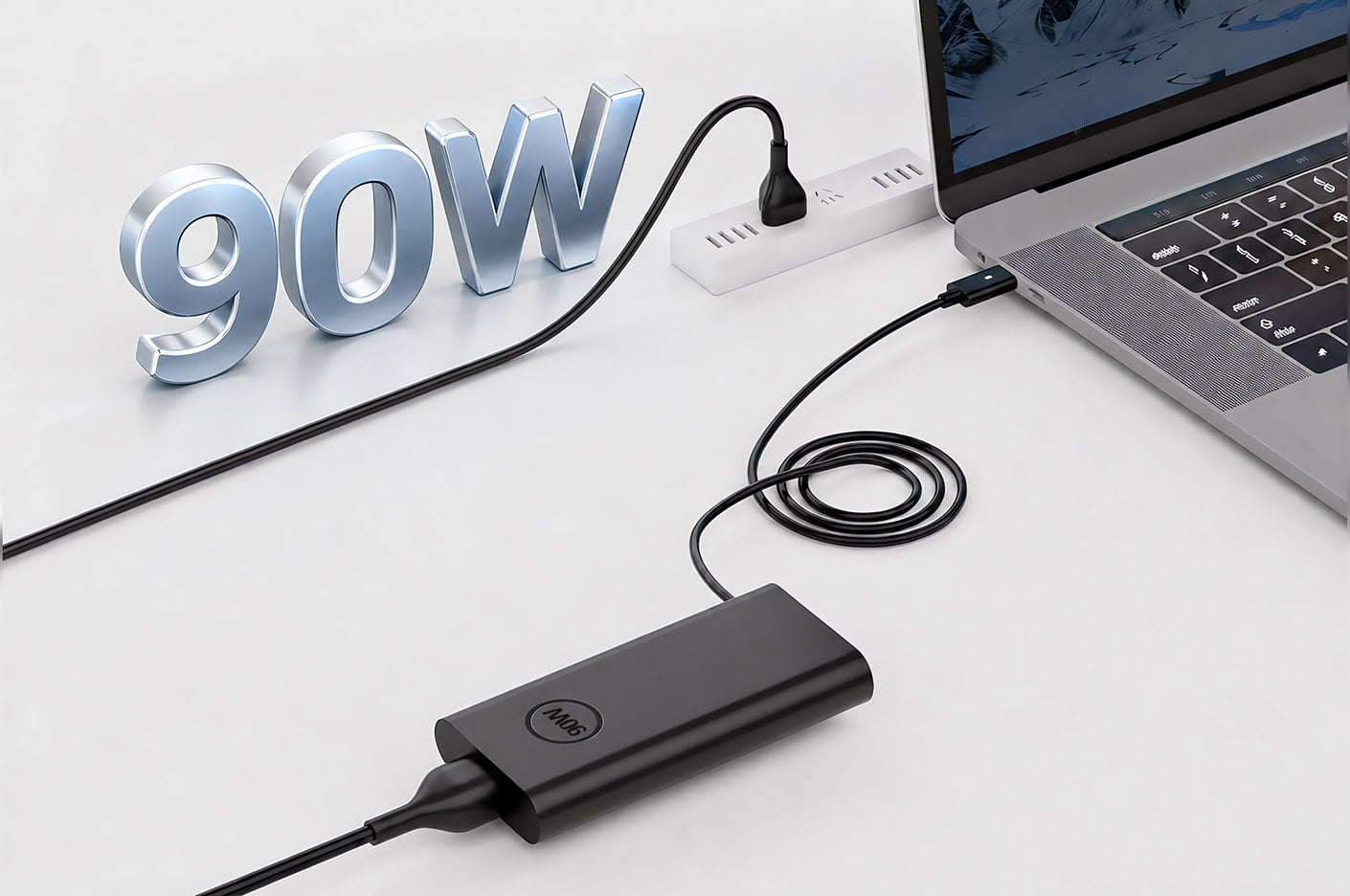

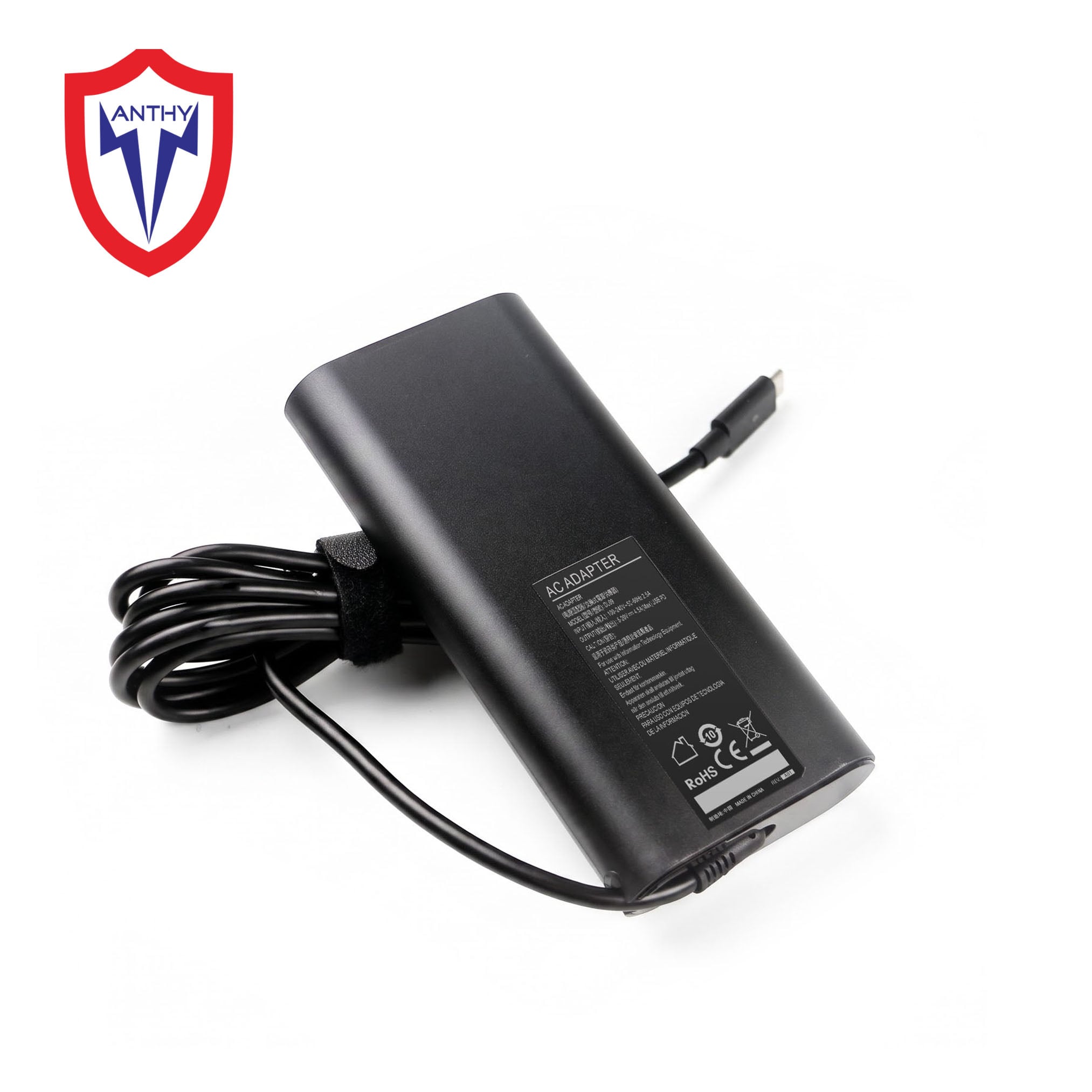

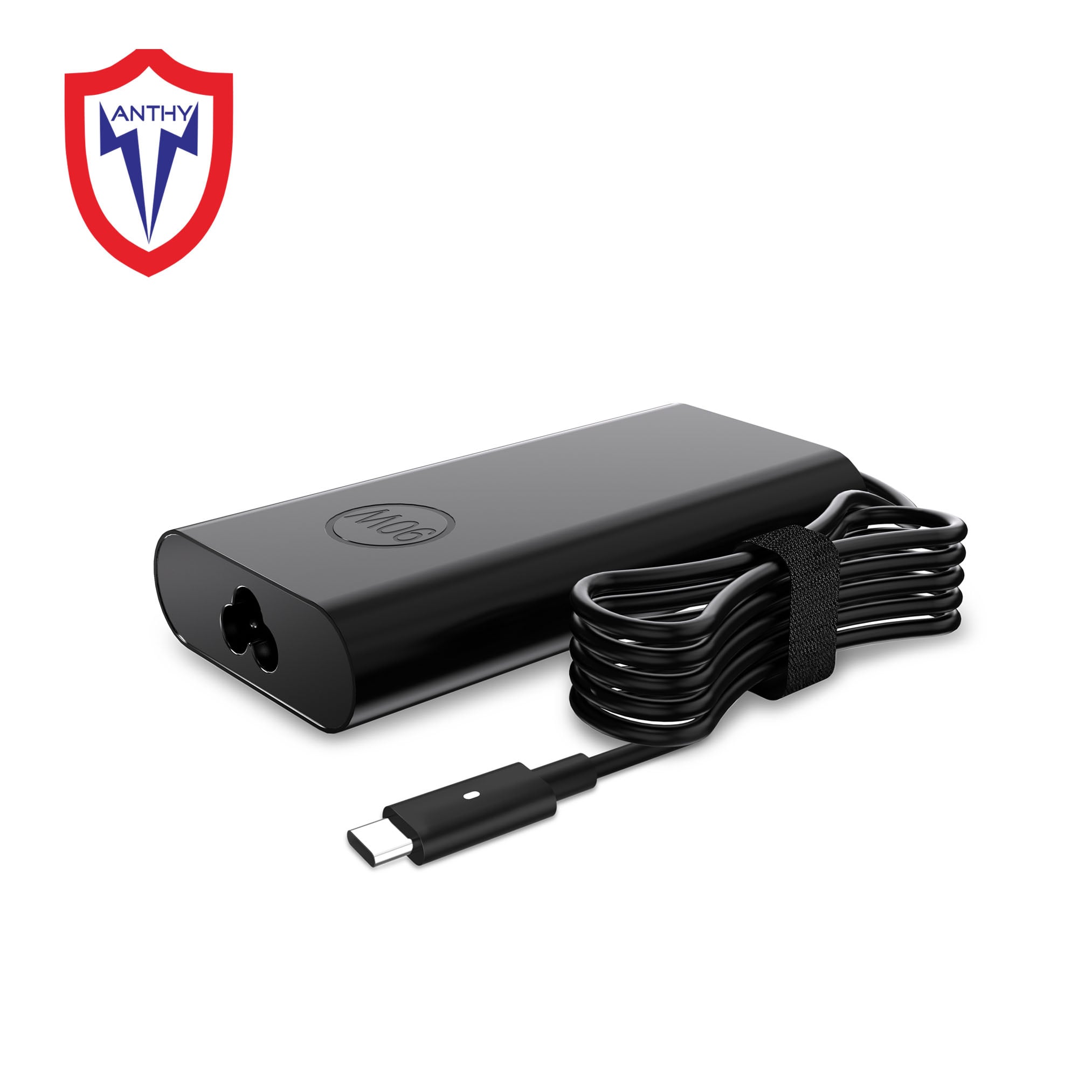

90W USB C Laptop Charger Compatible with Dell
Compatible with Dell Latitude 3380 3390 3379 3400 3500 5175 5179 5285 5289 5289 2-in-1 5290 5300 5300 2-In-1 5300 2-in-1 Chrome 5310 5310 2-in-1 5400 5400 Chrome 5401 5410 5411 5501 5510 5511 5500 7212 7275 7285 7290 7202 7300 7400 7310 7350 7368 7370 7389 7390 2-in-1 7410 E7370 5490 7490 E7480 E5450 5500 5580 5590 5591 7389 2-in-1 7390 2-in-1 7400 2-In-1 7569 7778 9410 2-in-1 9510
Basic parameters
| Product Series | 90W USB C Laptop Charger Compatible with Dell |
| Input voltage/Input frequency | 100-240V 50-60Hz |
| Output voltage/Output current | 5V/3A,9V/3A,15V/3A,20V/4.5A |
| Static loss | ≤0.3W |
| Output ripple | ≤200mV |
| Output efficiency | ≥88% |
| Protection | Over voltage protection/Over current protection |
| Short circuit protection/Temperature protection |
Other Parameters

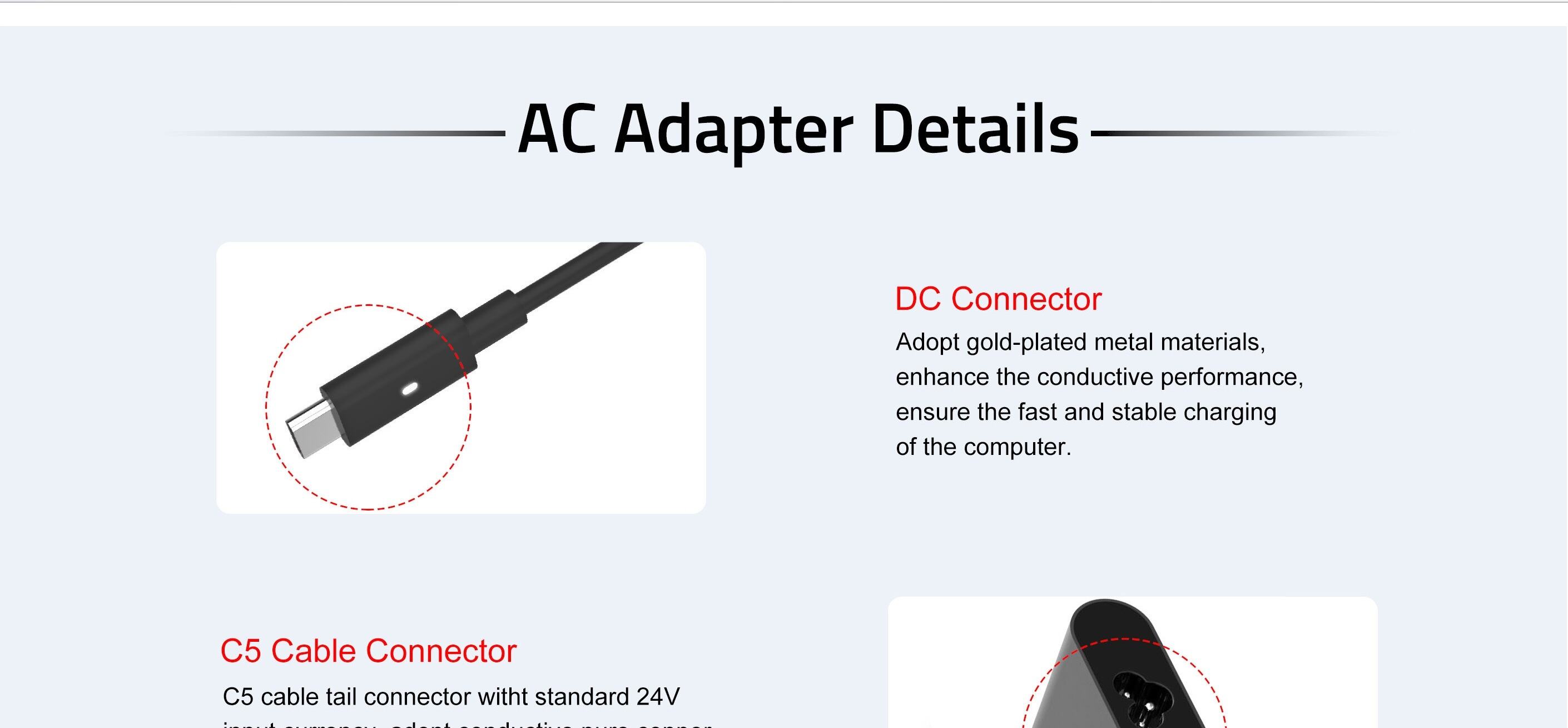

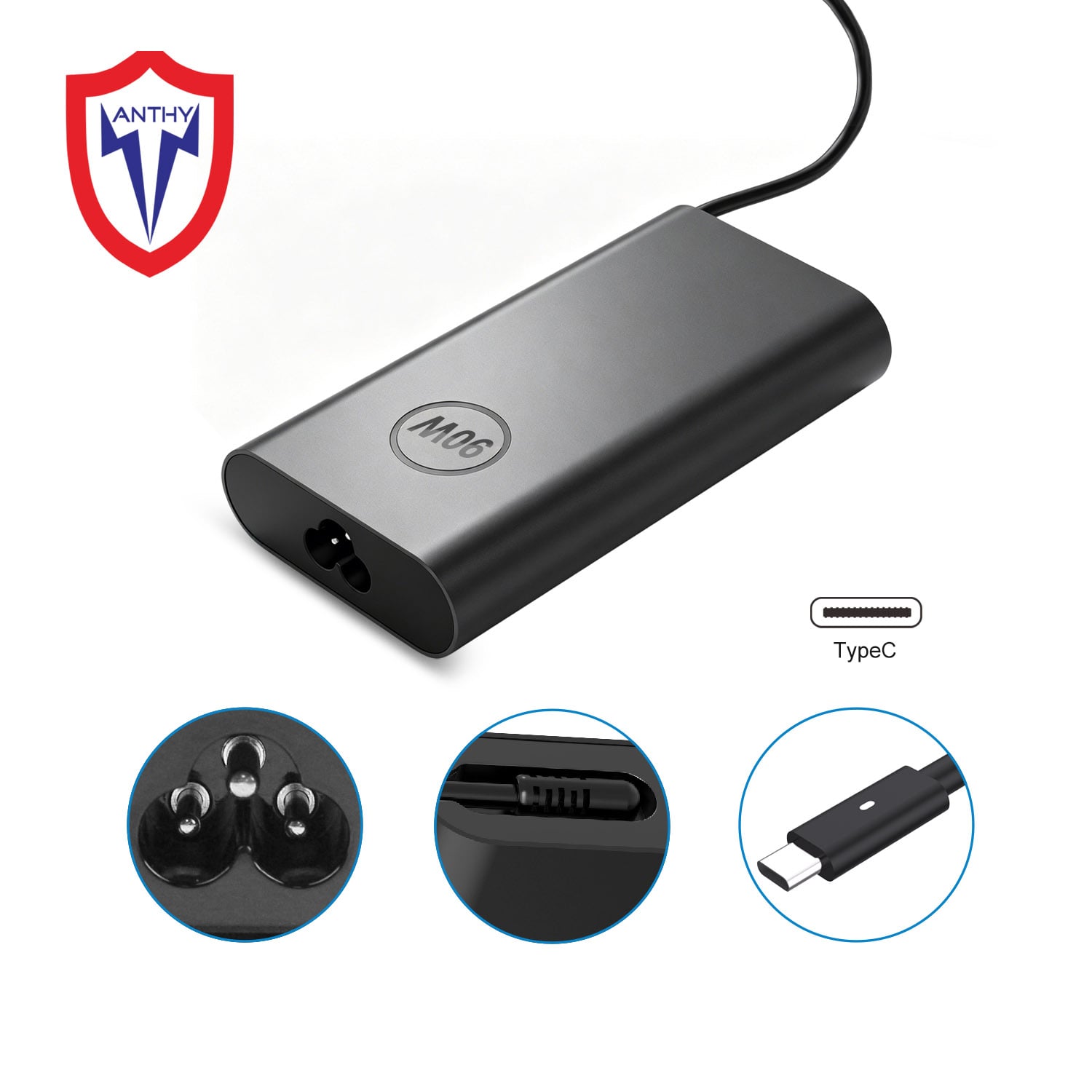

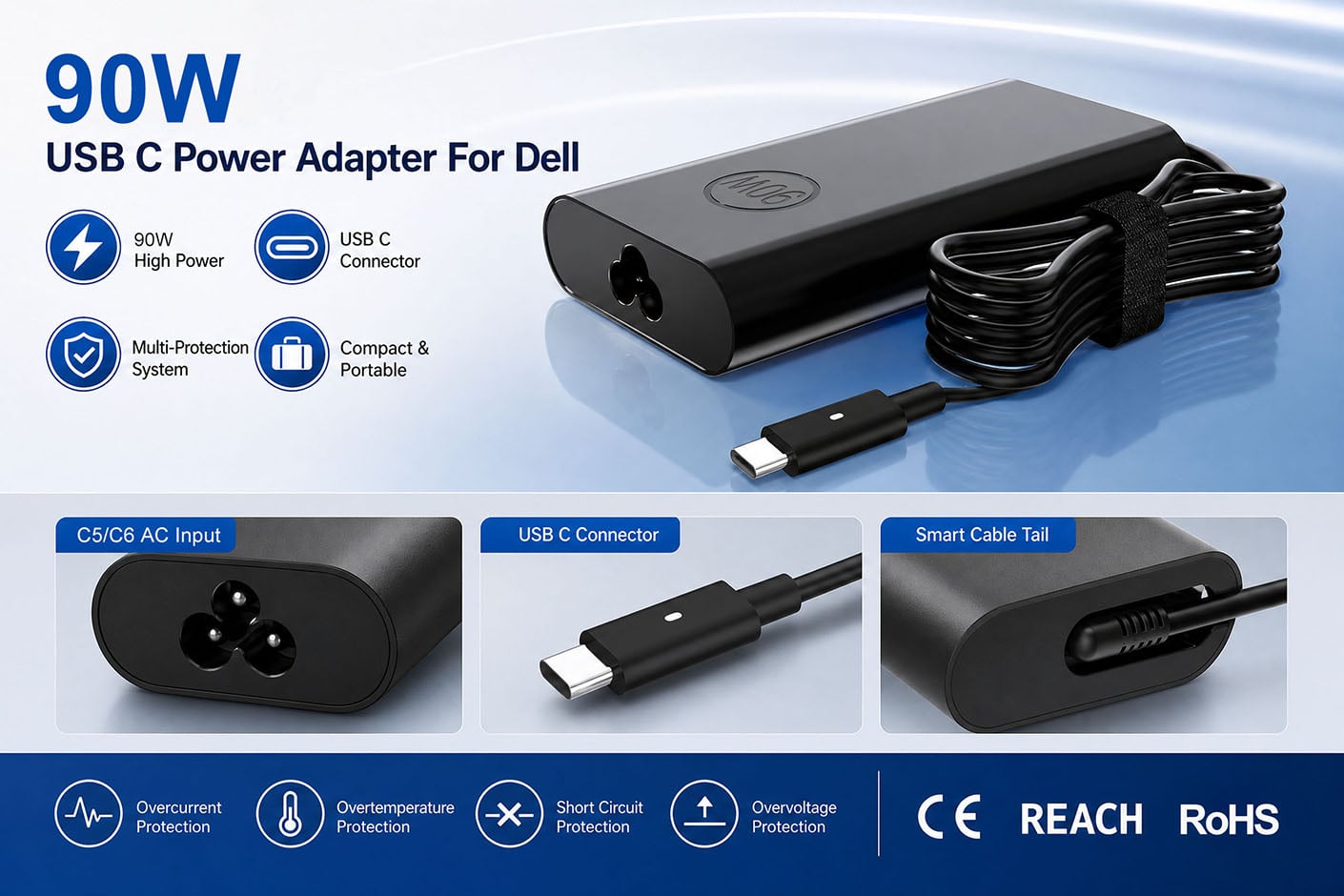

| AC Port | C5/C6 Cable Connector |
| AC cable Optiona | EU/US/AU/CN/UK |
| DC line length/DC tips | Customizable |
| Product Size | 130.1*67.3*23.2mm |
| Product Color | Black |
INPUT VOLTAGE & FREQUENCY
| Input Voltage | Minimum | Nominal | Maximum |
| Input Voltage | 100Vac | 200/230Vac | 240Vac |
| Input Frequency | 47Hz | 50/60Hz | 63Hz |
INPUT CURRENT：The maximum input current is 2.5A at 100Vac at full load
STATIC LOSS：The static loss is less than 0.3W at normal input voltage
Inrush current：50A peak @115VAC，35A peak @230VAC，Full load @25°C ambient cold start
RIPPLE AND NOISE：
The ripple and noise is less than 200mV measured by 20MHz bandwidth oscilloscope and terminated
each output with a 0.1uF ceramic capacitor and a 10uF aluminum electrolytic capacitor.
TURN ON DELAY：
During turn on,output voltage shall not exceed its nominal voltage by more than 10% and all
output shall reach their steady state values within 2 seconds of trun on.
The power supply shall go into latch-off mode when the IC's temperature is over its trigger point(145℃) ,
and when IC temperature is lower than regulation value , the power supply shall be self-recovering.
OPERATING CONDITION
| Ambient Temperature | 0°C~35C | Relative Humidity | 20%~90% |
STORAGE CONDITION
| Ambient Temperature | -20°C~70°C | Relative Humidity | 20%~90% |
