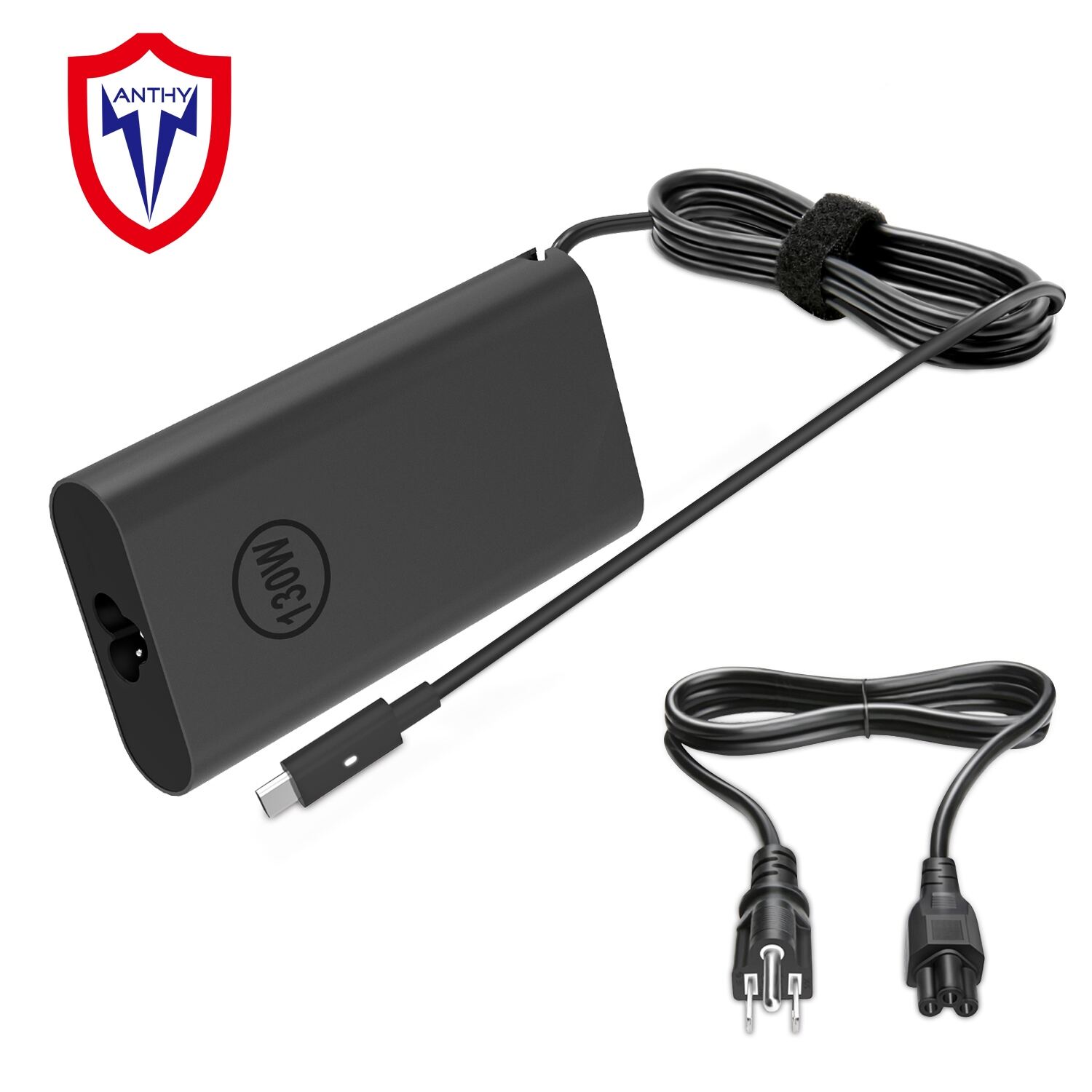

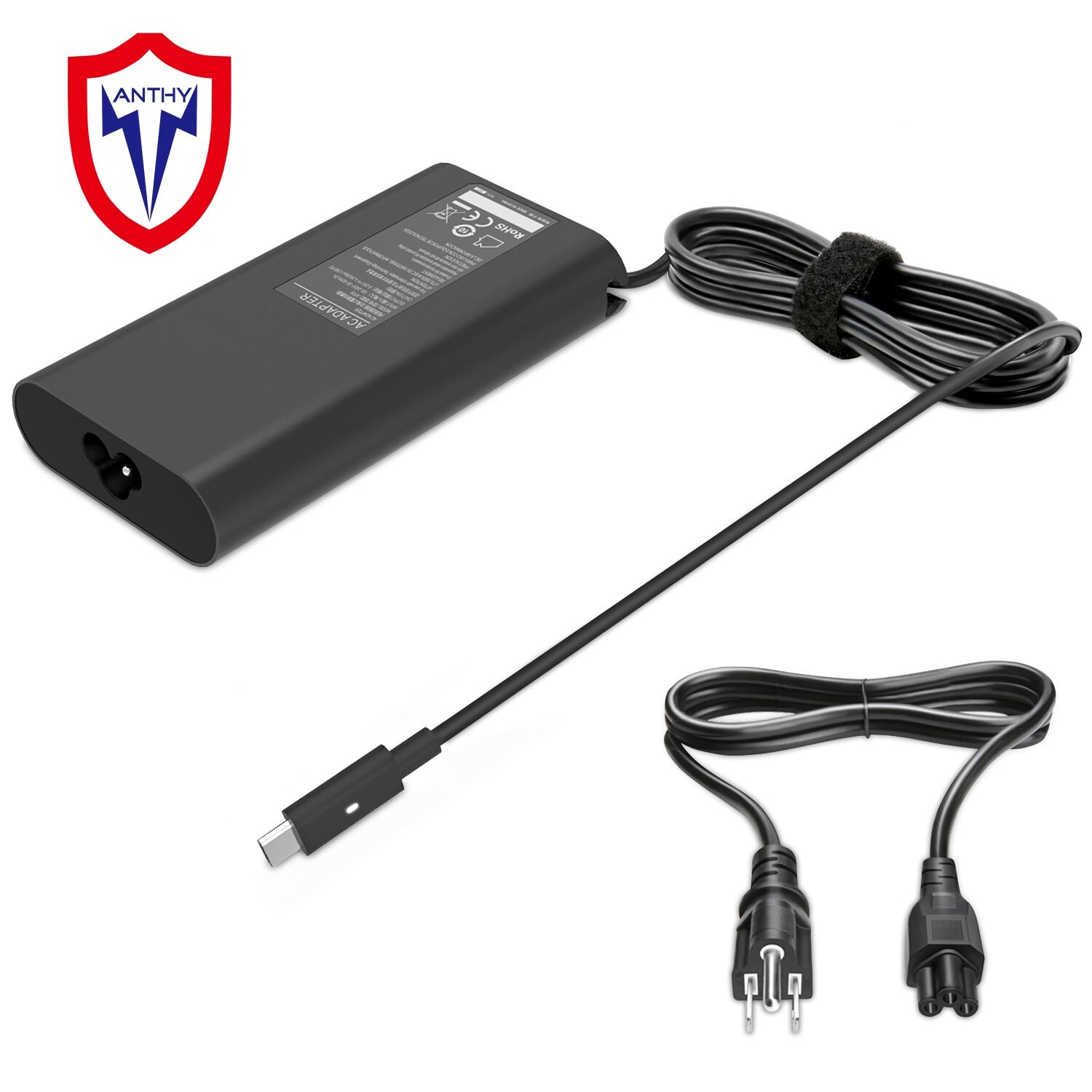

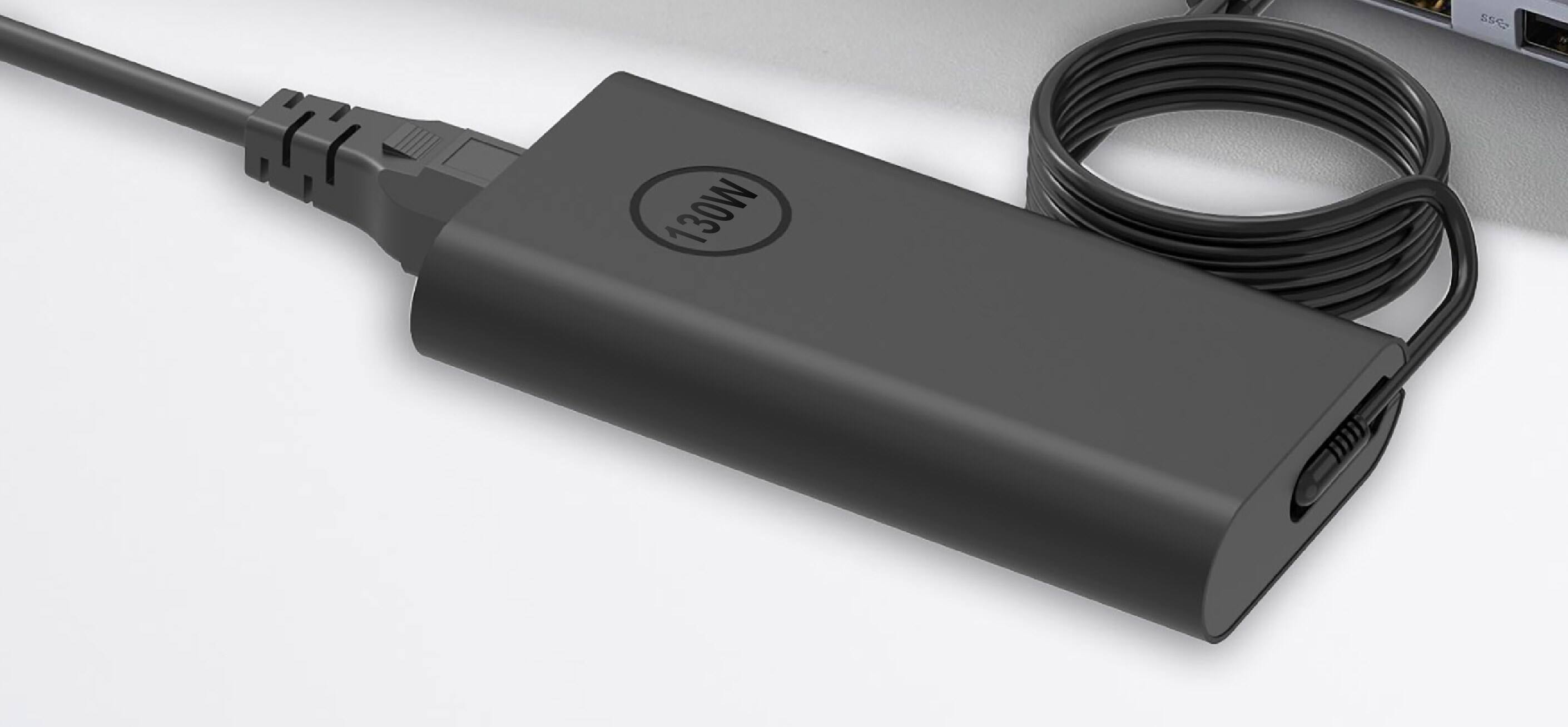

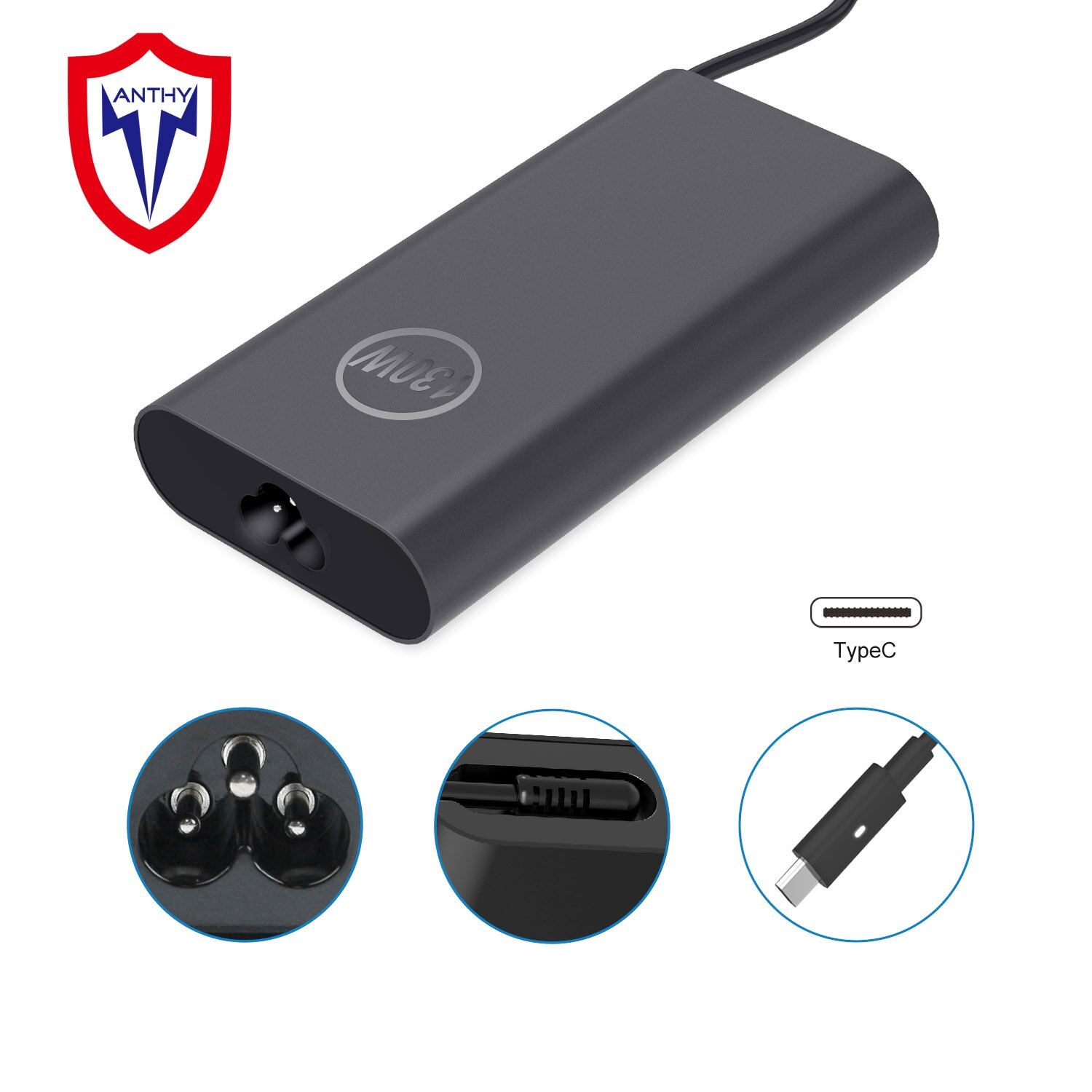

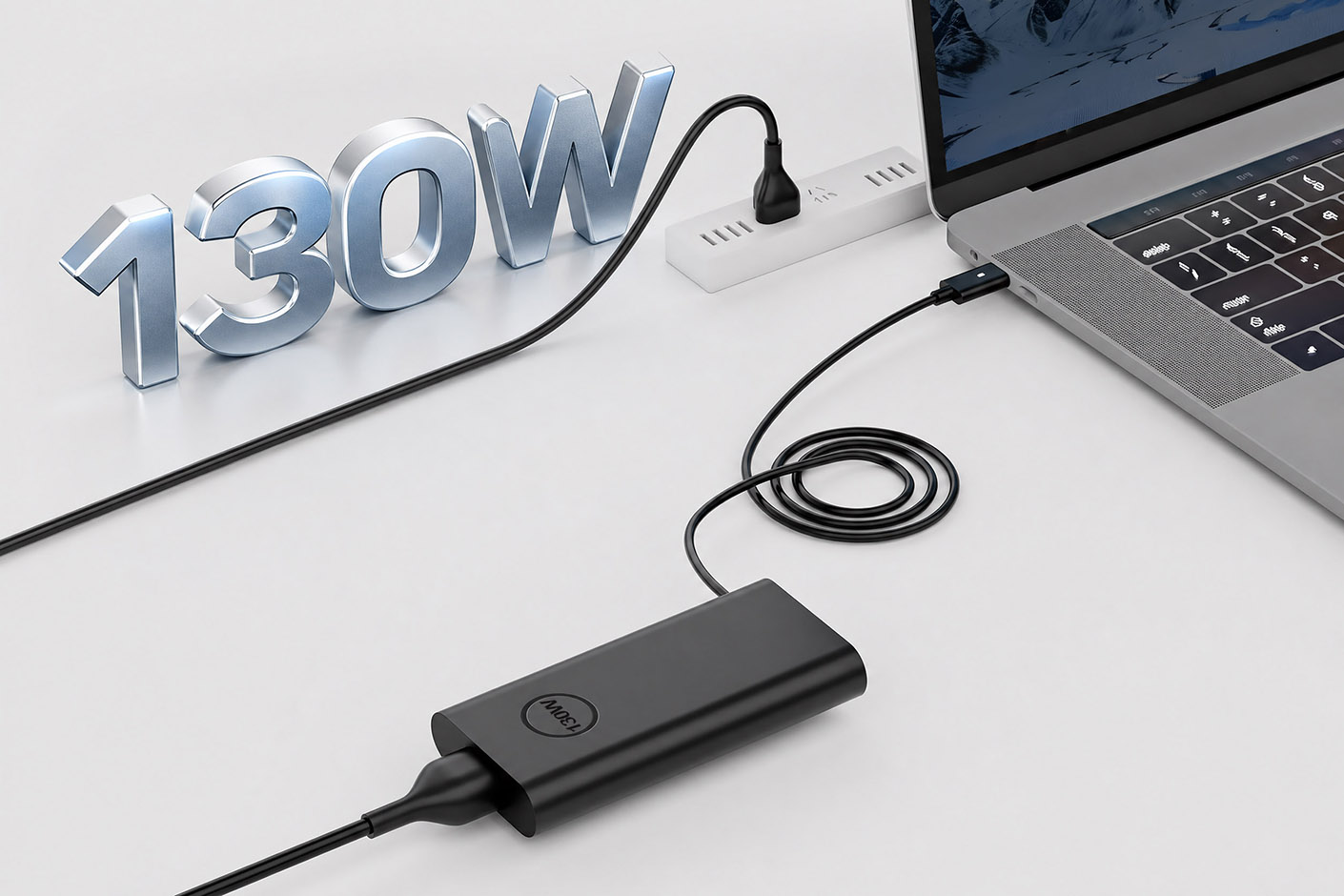

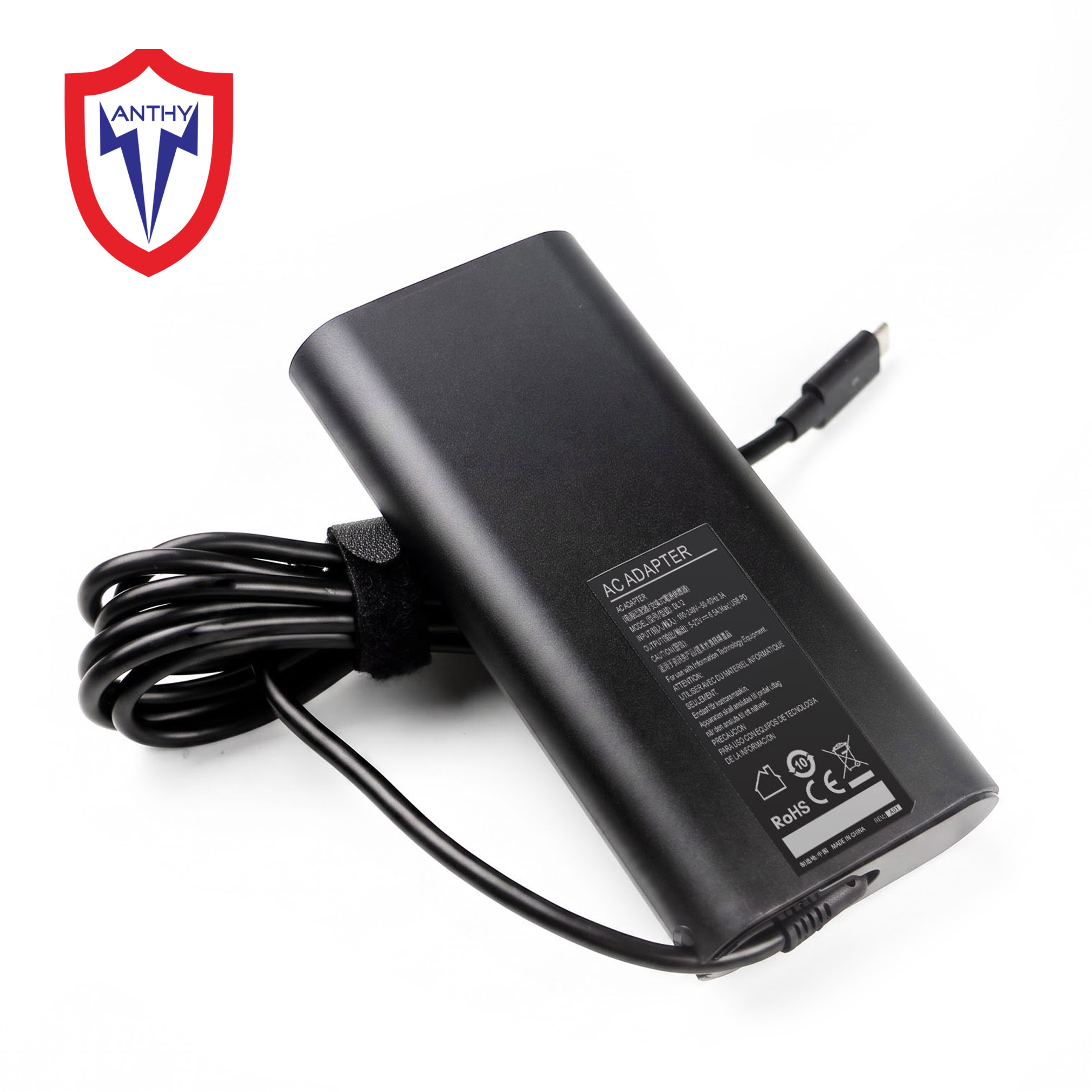

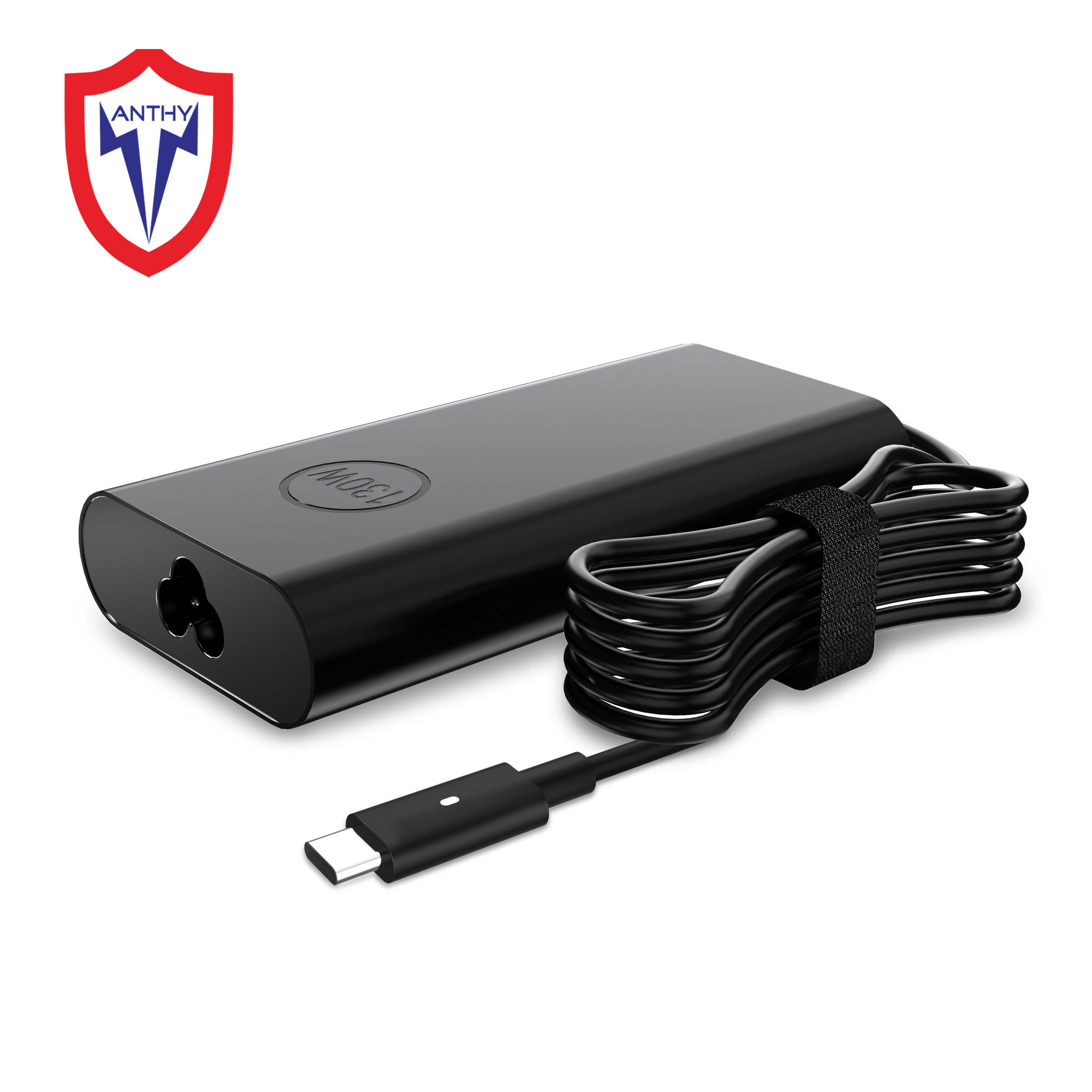

130W USB C Laptop Charger Compatible with Dell
Compatible With Dell XPS 15 charger: Dell XPS 15 7590 9530 9550 9560 9570 ;Dell Precision M2800 M3800 5510 5520 5530 5540;Dell Inspiron 13 15 17 7347 7348 7348 2-in-1 7459 7501 7640 7620 7630 7420 7430 7510;Dell vostro 7500 7590.
Basic parameters
| Product Series | 130W USB C Laptop Charger Compatible with Dell |
| Input voltage/Input frequency | 100-240V 50-60Hz |
| Output voltage/Output current | 5V/1A,20V/4.5A,20V/6.5A |
| Static loss | ≤0.3W |
| Output ripple | ≤200mV |
| Output efficiency | ≥88% |

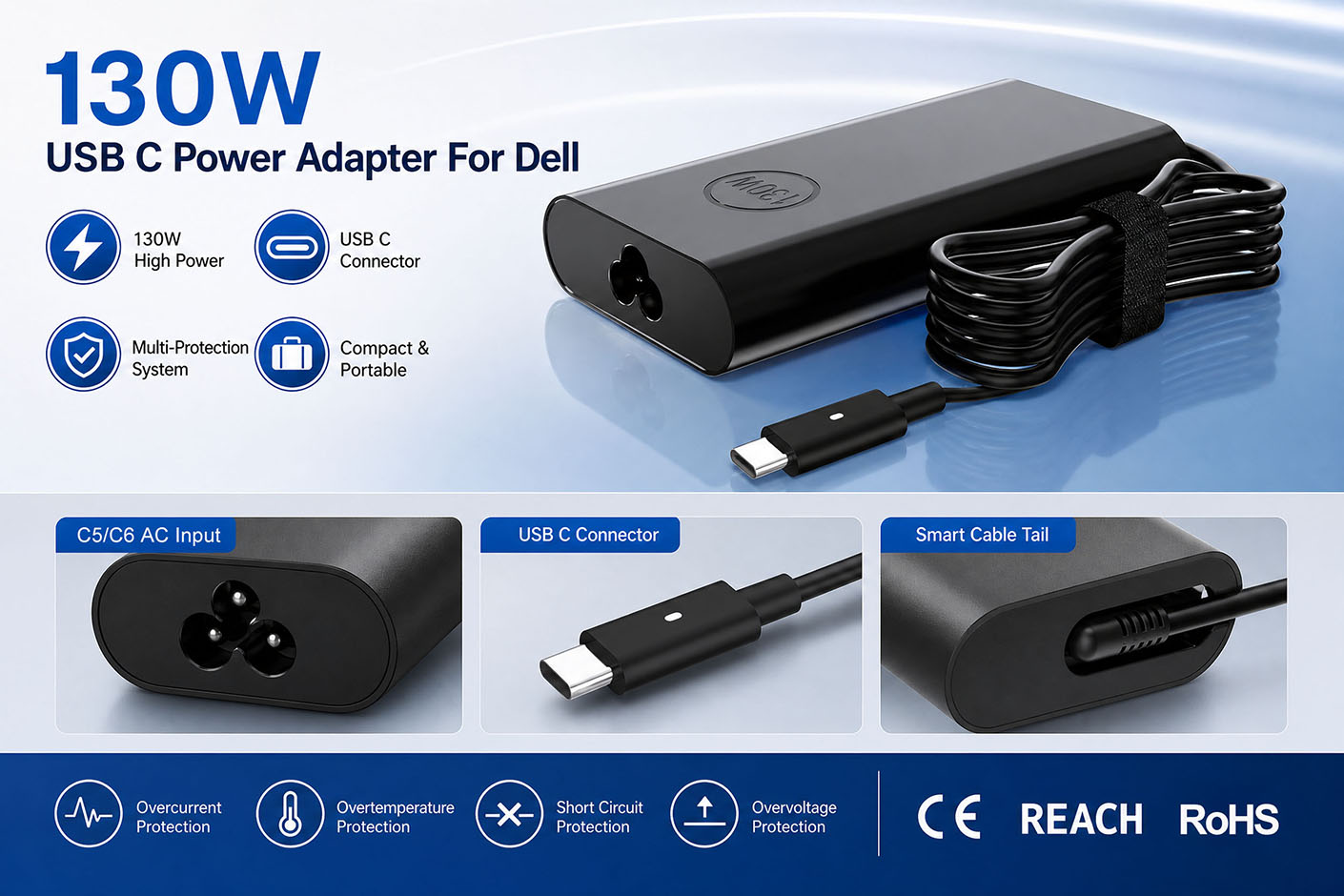

| Protection | Over voltage protection/Over current protection |
| Short circuit protection/Temperature protection |
Other Parameters

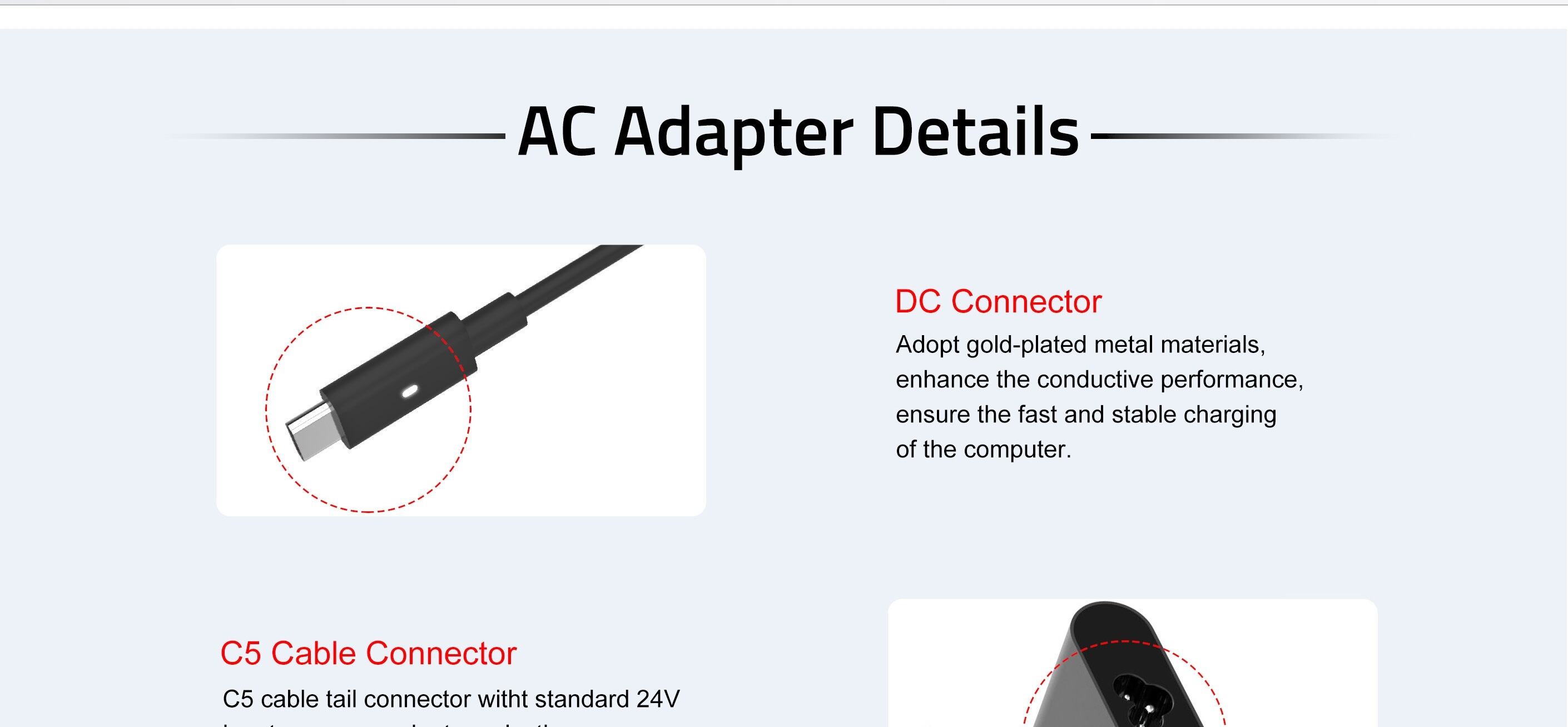

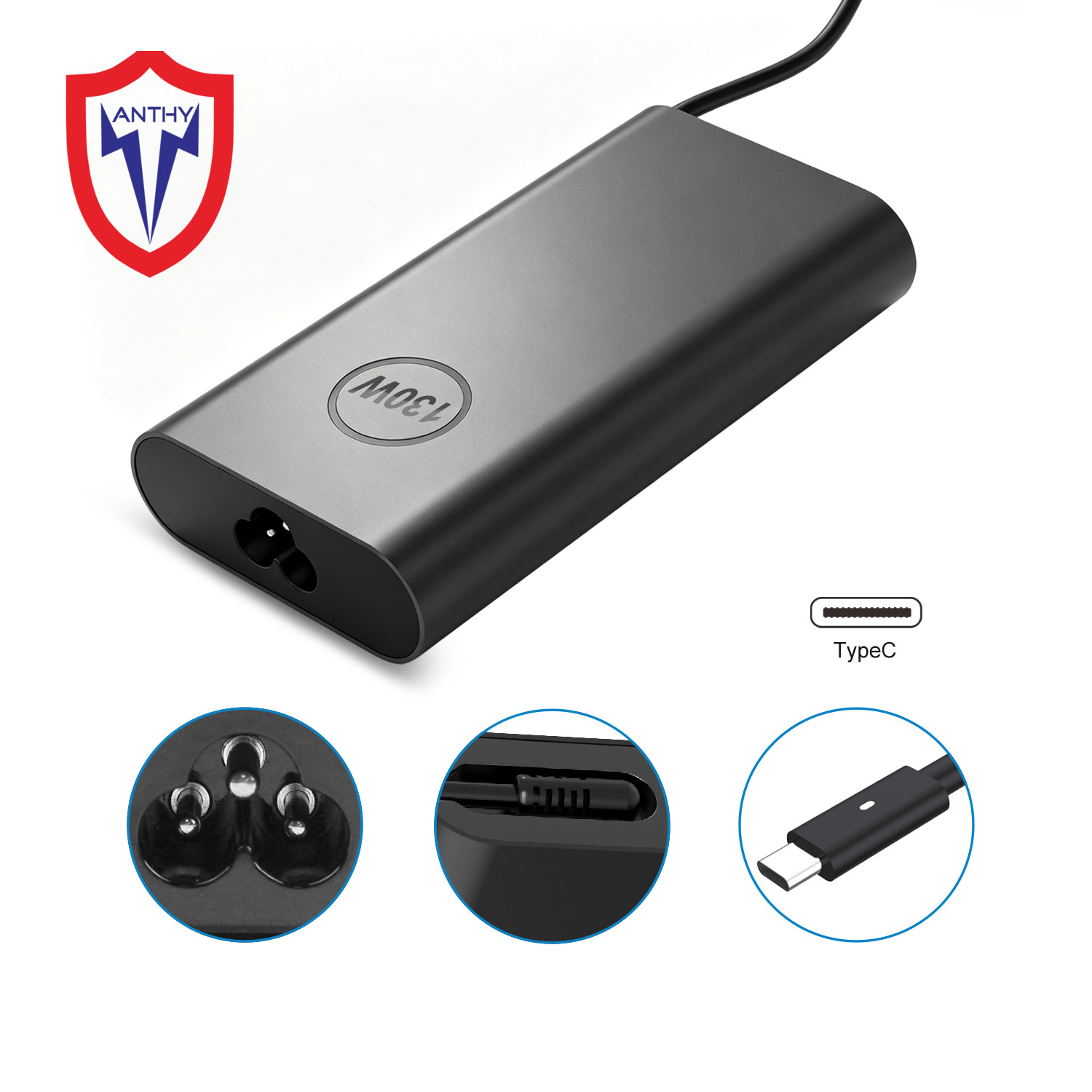

| AC Port | C5/C6 Cable Connector |
| AC cable Optiona | EU/US/AU/CN/UK |
| DC line length/DC tips | Customizable |
| Product Size | 143.5*67.3*23.2mm |
| Product Color | Black |
INPUT VOLTAGE & FREQUENCY
| Input Voltage | Minimum | Nominal | Maximum |
| Input Voltage | 100Vac | 200/230Vac | 240Vac |
| Input Frequency | 47Hz | 50/60Hz | 63Hz |
INPUT CURRENT：The maximum input current is 3A at 100Vac at full load
STATIC LOSS：The static loss is less than 0.3W at normal input voltage
Inrush current：50A peak @115VAC，35A peak @230VAC，Full load @25°C ambient cold start
RIPPLE AND NOISE：
The ripple and noise is less than 200mV measured by 20MHz bandwidth oscilloscope and terminated
each output with a 0.1uF ceramic capacitor and a 10uF aluminum electrolytic capacitor.
TURN ON DELAY：
During turn on,output voltage shall not exceed its nominal voltage by more than 10% and all
output shall reach their steady state values within 2 seconds of trun on.
The power supply shall go into latch-off mode when the IC's temperature is over its trigger point(145℃) ,
and when IC temperature is lower than regulation value , the power supply shall be self-recovering.
OPERATING CONDITION
| Ambient Temperature | 0°C~35C | Relative Humidity | 20%~90% |
STORAGE CONDITION
| Ambient Temperature | -20°C~70°C | Relative Humidity | 20%~90% |
